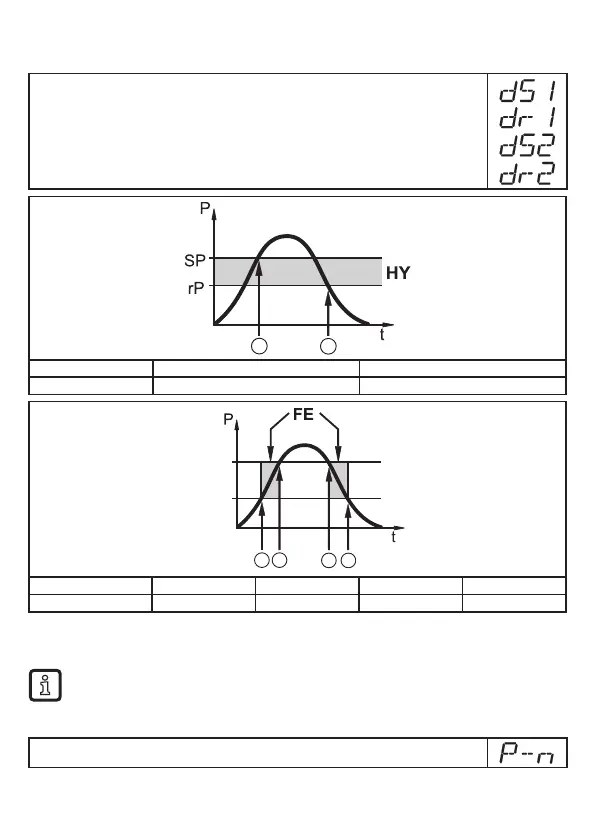

9.5 User settings (optional)
9.5.1 Set delay time for the switching outputs
[dS1] / [dS2] = switch-on delay for OUT1 / OUT2�
[dr1] / [dr2] = switch-off delay for OUT1 / OUT2�
► Select [dS1], [dS2], [dr1] or [dr2] and set a value between 0 and 50 s (at
0 the delay time is not active)�
A
B
Output function: A: B:
[Hno] / [Hnc] DS dr
FH
FL
A
B
C D
Output function: A: B: C: D:
[Fno] / [Fnc] dS dr dS dr
P = system pressure; SP = set point; rP = reset point; HY = hysteresis; FE = window;
FH = upper value; FL = lower value�
For this unit the parameters [dSx] and [drx] for the set and reset points are assigned
strictly to the VDMA guideline�
9.5.2 Set output logic for the switching outputs
► Select [P-n] and set [PnP] or [nPn]�
