PG17xx Electronic manometer
26 © ifm electronic gmbh 11601190 / 01 07 / 2025
Parameter Explanation
t.CoL = setting for colour range 1 (top layer)
x.StA Starting point of the colour ranges:
b.StA = lower pressure limit of colour range 3 (base layer)
m.StA = lower pressure limit of colour range 2 (middle layer)
t.StA = lower pressure limit of colour range 1 (top layer)
x.End End point of the colour ranges:
b.End = upper pressure limit of colour range 3 (base layer)
m.End = upper pressure limit of colour range 2 (middle layer)
t.End = upper pressure limit of colour range 1 (top layer)
EF Change to the EF (extended functions) submenu
BACk Back to the next higher level (menu or last process value display)

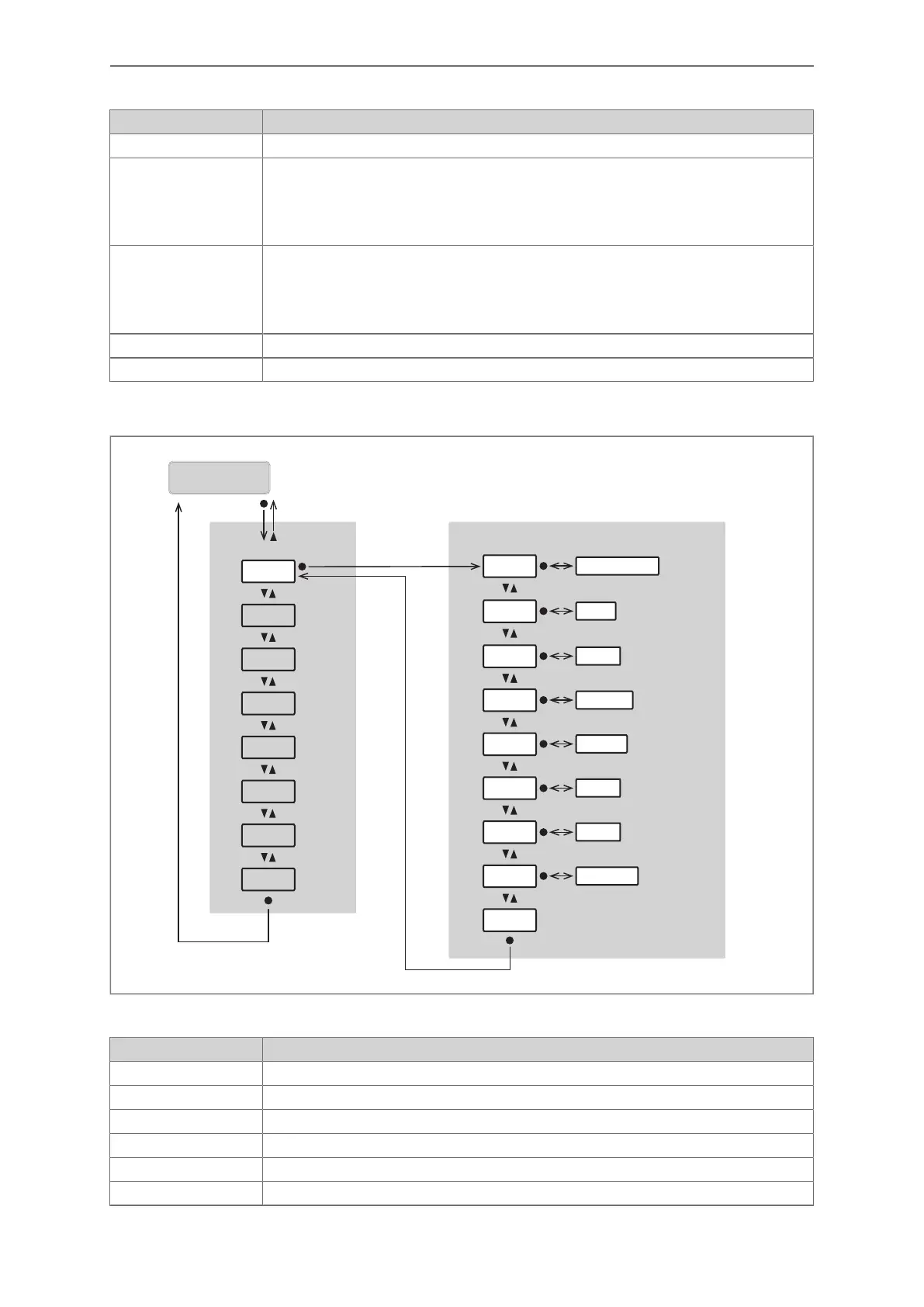

Basic settings menu CFG:
[EF]
BACk
OU1
OU2
DIS
DIA
SIM
CFG
RES
----
PnP│nPn
----
----
dAP.P
P-n
OFF│ECO
YES│no
tcoF
coF.P
CGA.P
uni.T
bar / mbar *│psi
°C│°F
uni.P
[CFG]
ECO.m
BACk
Main menu
* The pressure unit depends on the device type
Data sheet at
ifm.com
.
Parameter Explanation
uni.P Standard unit of measurement for pressure
uni.T Standard unit of measurement for temperature
dAP.P Damping constant in seconds for pressure (63 % rise time τ)
P-n Output polarity for the switching outputs
tcoF Parameter for teaching the correction factor for zero point calibration
coF.P Correction factor for zero point calibration, pressure
