Electronic manometer PG17xx
© ifm electronic gmbh 11601190 / 01 07 / 2025 25

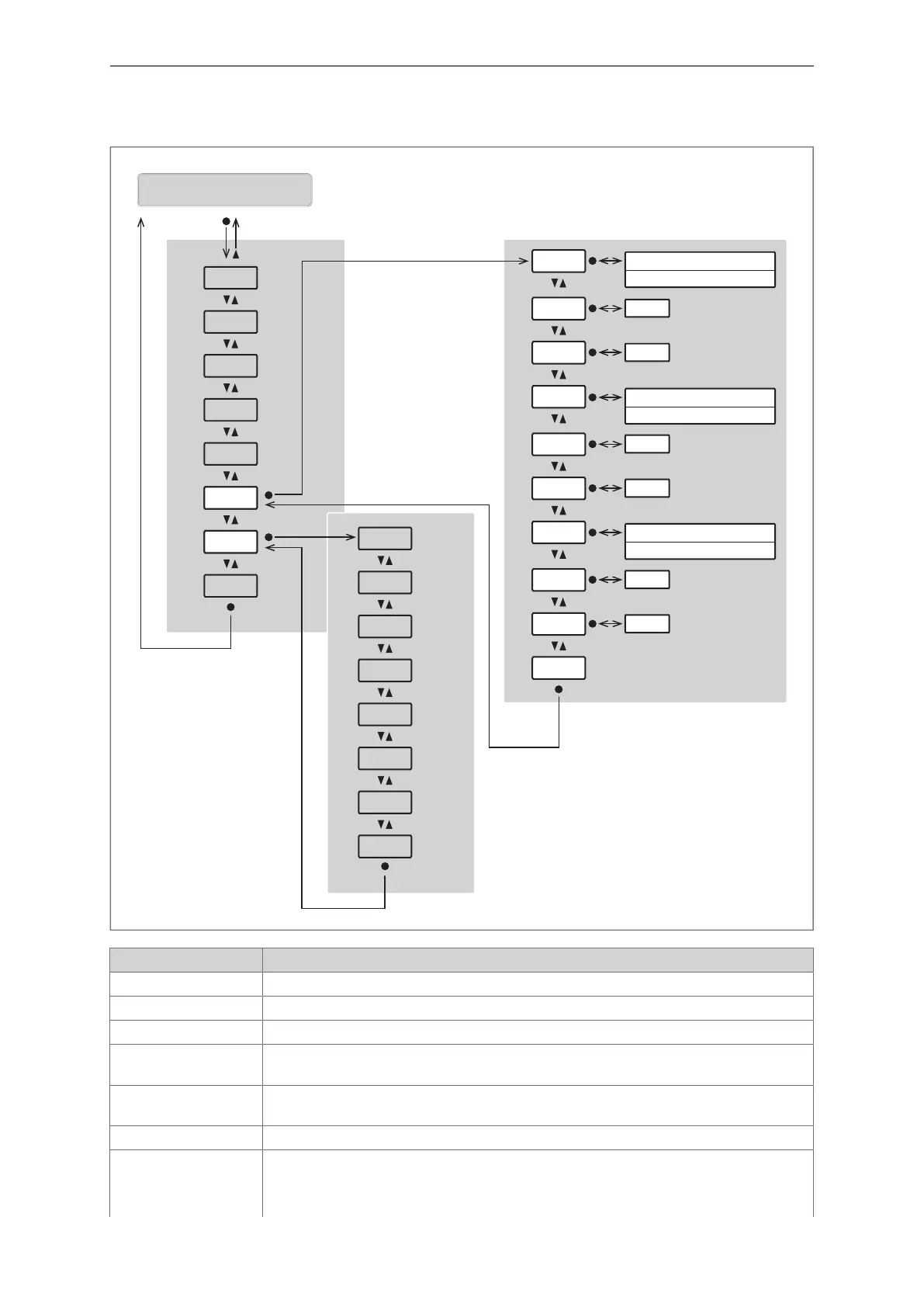

Main menu, working range menu Wr.1, extended functions menu EF:
BACk
SP2
HYSt
ASP2
AEP2
SP1
EF
Wr.1
----
----
t.End
t.StA
t.CoL
----
----
m.End
m.StA
m.CoL
----
----
b.End
b.StA
b.CoL
OFF│whit│rEd│GrEn│YELL
bLuE│cYAn│Ambr│PurP
OFF│whit│rEd│GrEn│YELL
bLuE│cYAn│Ambr│PurP
OFF│whit│rEd│GrEn│YELL
bLuE│cYAn│Ambr│PurP
[Wr.1]
BACk
BACk
[EF]
OU1
CFG
OU2
DIS
DIA
SIM
RES
Process value display
Parameter Explanation
SP1 Switch point 1
SP2 Switch point 2
HYSt Hysteresis
ASP2 Analogue start point for OUT2 = process value at which the output signal is 4 mA (for ou2
= Ineg: 20 mA).
AEP2 Analogue end point for OUT2 = process value at which the output signal is 20 mA (for ou2
= Ineg: 4 mA).
Wr.1 Change to submenu Wr.1 (colour scheme for working range 1)
x.CoL Colour scheme for working range 1:
b.CoL = setting of colour range 3 (base layer)
m.CoL = setting of colour range 2 (middle layer)
