Electronic manometer PG17xx
43
[diS.L] Illuminated segments in the LED ring (in addition to the current process value)
L1 • Colour ranges according to the setting under [Wr.1].
L2 • Colour ranges according to the setting under [Wr.1].
• Lag indicator function: The LED segments at the minimum and maximum measured pressure light white.
L3 • Lag indicator function: The LED segments at the minimum and maximum measured pressure light white.
L4 • The LED segments at switch points SP1 and SP2 light yellow.
L5 • The LED segments at switch points SP1 and SP2 light yellow.
• Lag indicator function: The LED segments at the minimum and maximum measured pressure light white.
L6 ----
10.5.2.1 Parameter setting via the device keys: Display layout
u Call up the menu [EF] > [DIS].
u Select [diS.L] and set layout.
Reset lag indicator
u Make sure that the unit is in the normal operating mode.
u Press and hold [▲] for at least 3 seconds.
w The two white lag indicator LEDs move to the current position of the pointer.
If the lag indicator LEDs are reset, the [Lo.P] and [Hi.P] values are retained: Memory (Ò/46).
If [Lo.P] and [Hi.P] are deleted, the lag indicator LEDs are also reset.
10.5.3 Colour scheme of LED ring
The colour scheme of the LED ring for pressure value indication can be configured.
Working range 1 is set in the [Wr.1] menu using the device keys.
4 additional working ranges can be configured via IO-Link. This makes it possible to visualise
different processsequences(e.g. process for product A, process for product B, CIP, rinsing).
Three colour ranges can be set for each working range, which are superimposed as layers.
4
2
0
6
8
10
psi
psi
Output
Status
TEMPbar
60
40
20
0
80
100
120
140
bar
Enter
-1
s
1 2
3

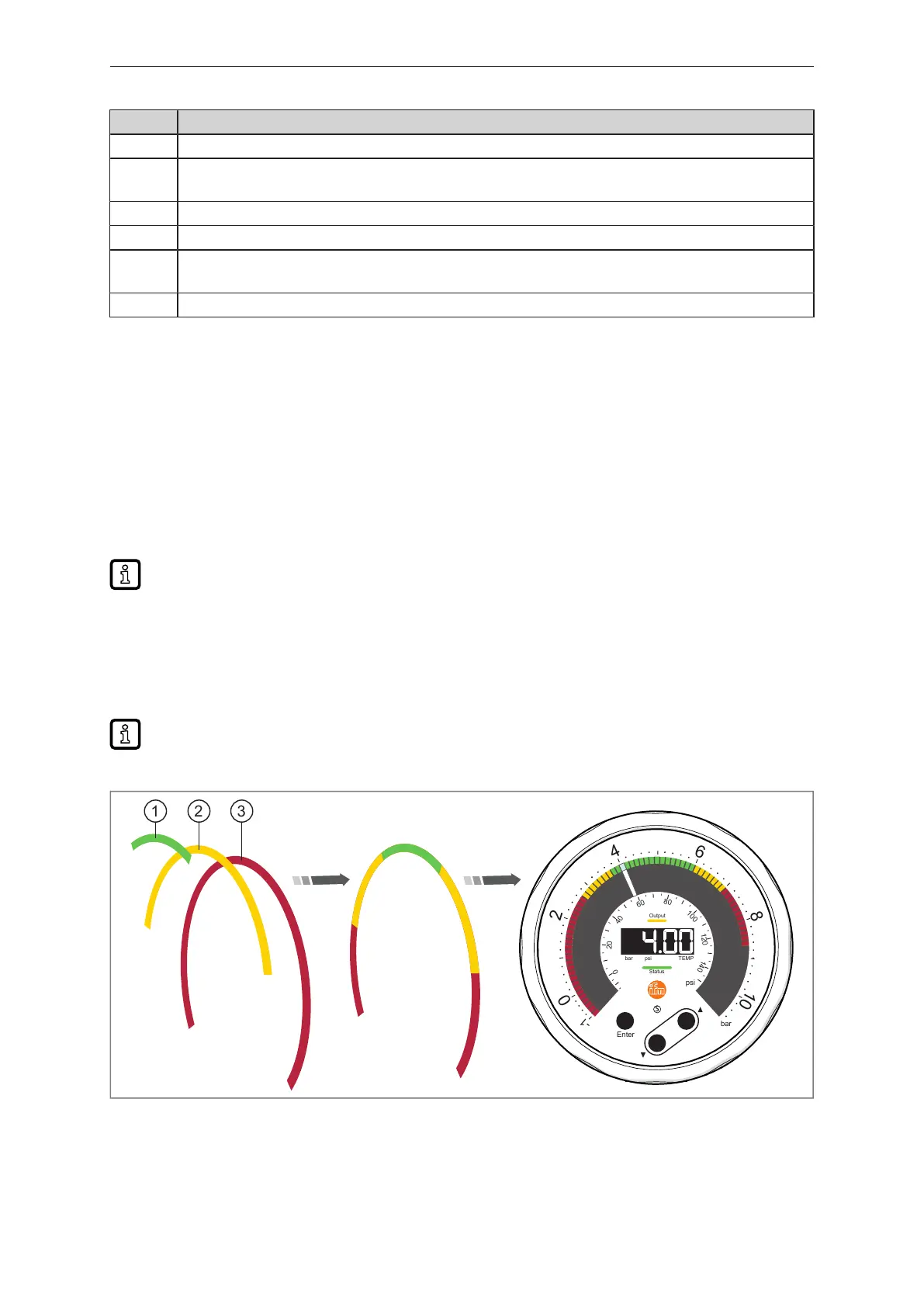

Fig.22: Colour scheme of working range 1 at factory setting
1: Top layer (= upper colour range). Adjustable parameters: start value [t.StA], end value [t.End], colour [t.CoL].
2: Middle layer (= middle colour range). Adjustable parameters: start value [m.StA], end value [m.End], colour [m.CoL].
3: Base layer (= lower colour range). Adjustable parameters: start value [b.StA], end value [b.End], colour [b.CoL].
For each colour range, you can set a start value with [x.StA] and an end value with [x.End].
