Evaluation unit for monitoring and converting frequency signals DW3003
27
SP1
low
high
TP1
PDV
0
1
H
H
SP1
-
H TP1
-
H

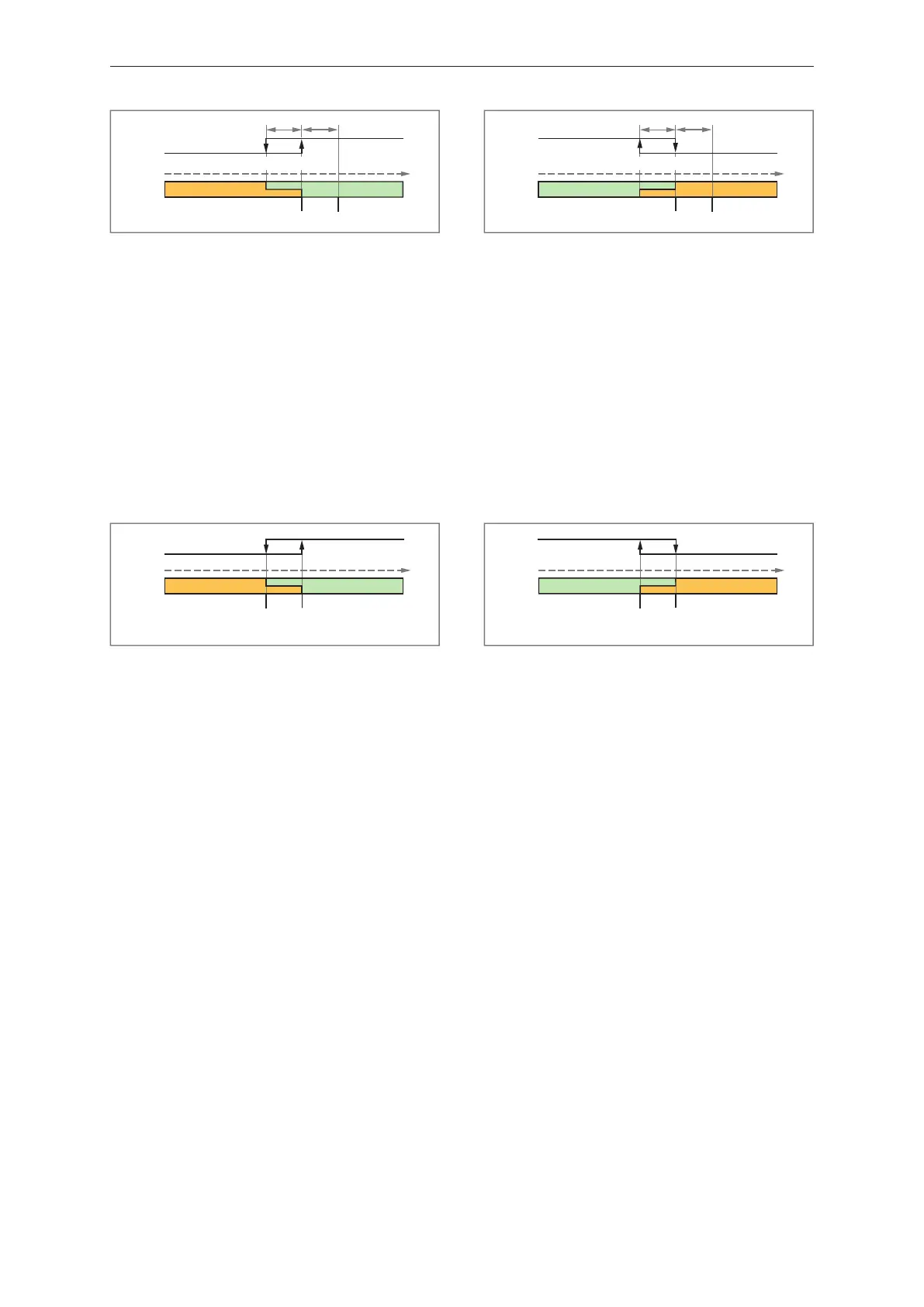

Fig.26: [Single Point Mode] / [High active]
H: Hysteresis
SP1: Switch point
TP1: Teach point
TP1-H: Switch point during teach (= SP1)
SP1-H Reset point
SP1
low
high
TP1
PDV
1
0
H
H
SP1
-
H TP1
-
H
Fig.27: [Single Point Mode] / [Low active]
H: Hysteresis
SP1: Switch point
TP1: Teach point
TP1-H: Switch point during teach (= SP1)
SP1-H Reset point
Two Point Mode
One switch point SP1 and one switch point SP2 are manually set or taught.
SP1 must be greater than SP2. Thus, switch point 2 is always the reset point.
When teaching, the switch point is set directly to the taught process value. The following applies:
[TeachSP1] sets SP1, [TeachSP2] sets SP2.
The hysteresis will be ignored in Two Point Mode.
SP1
low
high
SP2
(TP1)(TP2)
PDV
0
1
Fig.28: [Two Point Mode] / [High active]
SP1: Switch point 1
SP2: Switch point 2
TP1: Teach point 1 (= SP1)
TP2: Teach point 2 (= SP2)
SP1
high
low
SP2
(TP1)(TP2)
PDV
1
0
Fig.29: [Two Point Mode] / [Low active]
SP1: Switch point 1
SP2: Switch point 2
TP1: Teach point 1 (= SP1)
TP2: Teach point 2 (= SP2)
Window mode
Two switch points (SP1) and (SP2) are manually set or taught.
The two switch points define a window area.
SP1 must be greater than SP2. Thus, switch point 2 is always the reset point.
When teaching, the switch point is set directly to the taught process value. The following applies:
[TeachSP1] sets SP1, [TeachSP2] sets SP2.
When the process data value enters the window area, the status of the switching signal channel
changes immediately when the switch points are exceeded/not reached.
If the process data value leaves the window area, the status of the switching signal channel changes
when the switch point plus hysteresis (SP1+H or SP2-H) is exceeded/not reached.
