DW3003 Evaluation unit for monitoring and converting frequency signals
26
The switch point mode, switch points and the switch point logic are set when the switching signal
channel parameters are set.
Switch-point mode [SSC1.x] → [ModE]
You can choose between the following switch point modes according to the IO-Link smart sensor
profile ‒ Function Class “Object Detection”:
• [Deactivated]
• [Single Point Mode]
• [Two Point Mode]
• [Window Mode]
The switching signal channel changes to the active state depending on the process data value (PDV).
The active state is above the switch point in [Single Point Mode] and [Two Point Mode] and within the
window section in [Window Mode].
Switch-point logic [SSC1.x] → [LoGc]
By setting the switch point logic [High active] or [Low active], you can specify which value the
switching signal channel has in the active state:
• [High active]: The switching signal channel is “high” in the active state (= ON = normally open = 1)
• [Low active]: The switching signal channel is “low” in the active state (= OFF = normally closed = 0)
The following figures show the status of the switching signal channels depending on the switch point
mode, switch point logic and process data value (PDV).
Deactivated
If the [Deactivated] switch point mode is set for a switching signal channel, then the switching signal
channel will permanently have the following value regardless of the process value:
• For switch point logic [High active]: permanently “low”.
• For switch point logic [Low active]: permanently “high”.
low
PDV
0

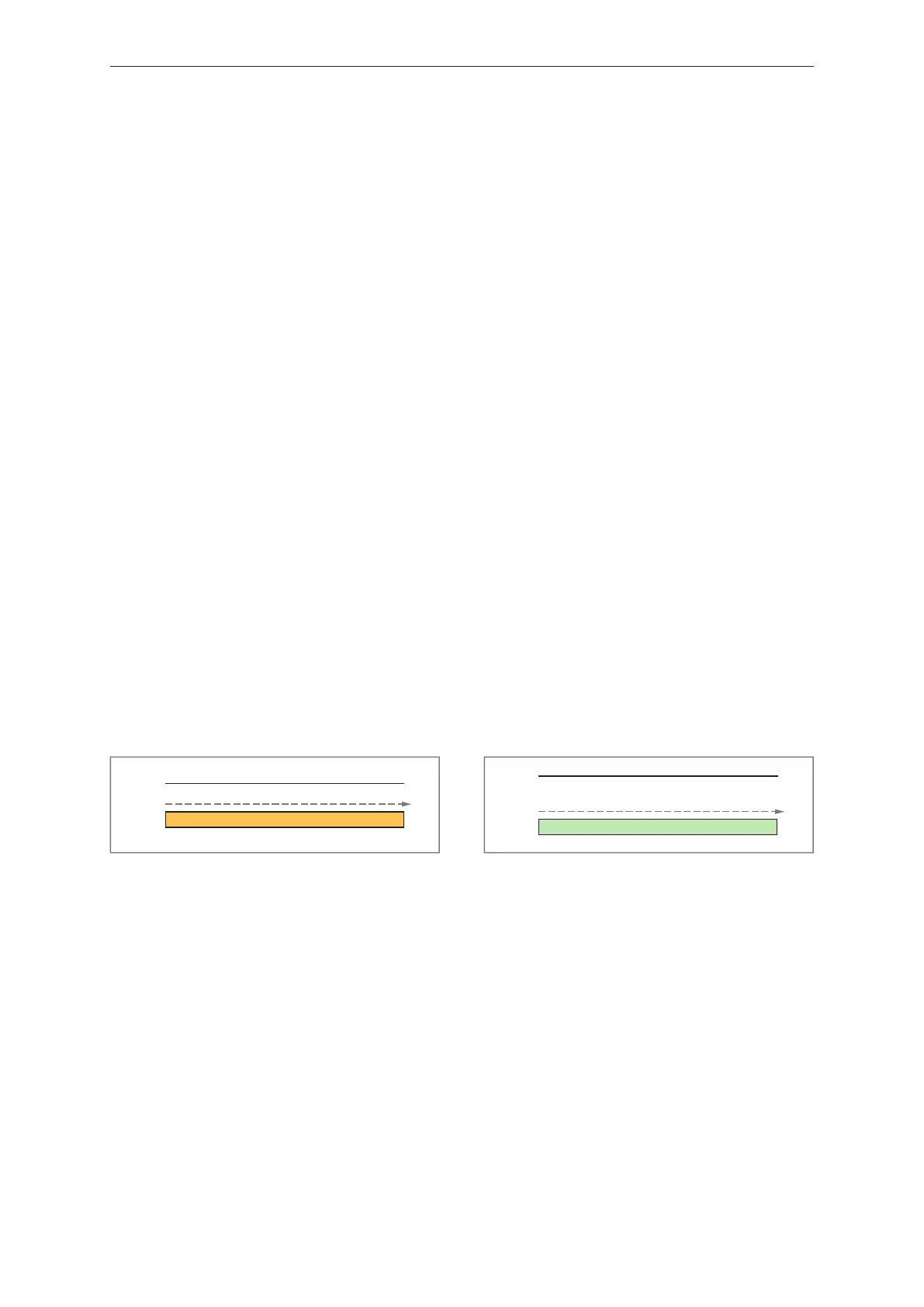

Fig.24: [Deactivated] / [High active]
high
PDV
1
Fig.25: [Deactivated] / [Low active]
Single Point Mode
Only one switch point (SP1) is manually set or taught.
The reset point (SP1-H) results from the switch point and the set hysteresis.
When teaching, the switch point is set below the taught process value (TP1) by the hysteresis.
