AL4203 Remote I/O module 8DO 8DI
22

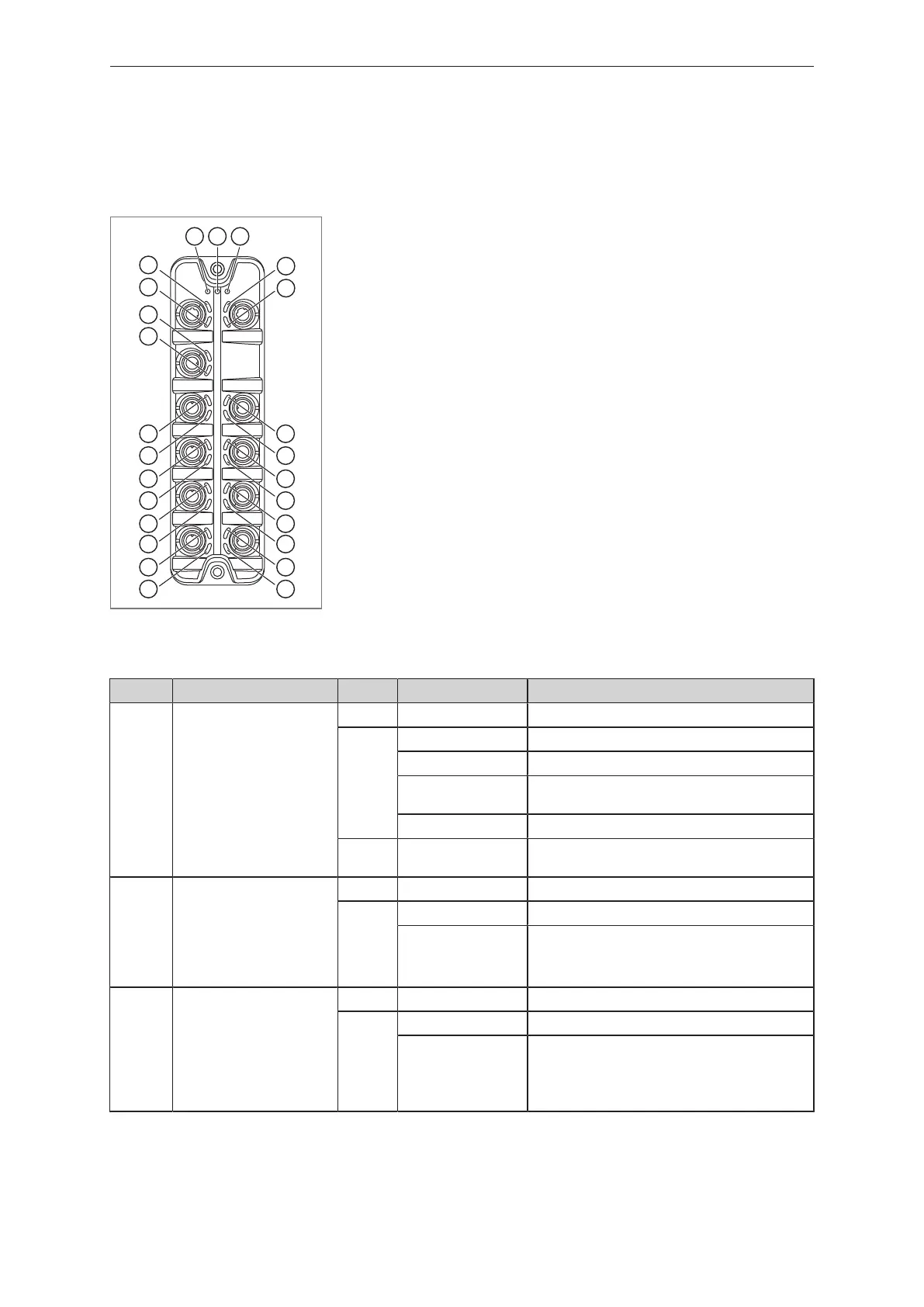

7 Operating and display elements
7.1 LEDs
2 3
4
5
11
1
4
5
6
6
8
88
8
6
6
7
7
9
99
9
7
7
10
1: Status: RDY
2: Status: BF
3: Status: SF
4: PROFINET: LNK
5: PROFINET: ACT
6: Process connection: DO1
7: Process connection: DO2
8: Process connection: DI1
9: Process connection: DI2
10: Voltage supply: UA
11: Voltage supply: US
7.1.1 Status
LED Description Colour State Description
RDY Gateway status - Off Not active or reboots
Green Flashes 3s (1Hz) DCP signalling service initiated via fieldbus
Flashes (5Hz) Error
Flashes (200ms on,
800ms off)
Firmware update running
On OK
Red On Error during firmware update (e.g. firmware not
compatible)
BF PROFINET connection sta-
tus (bus failure)
- Off No error
Red Flashes (2Hz) No data transmission
On • No configuration or
• physical connection with low speed or
• no physical connection
SF System status (system fail-
ure)
- Off No error
Red Flashes 3s (1Hz) DCP signalling service initiated via fieldbus
On • Watchdog expired or
• channel diagnosis, general or extended
diagnosis available or
• system error
