IIoT controller AE3400
15
u For connection, use M12 connectors (minimum protection rating: IP 65 / IP 67).
u Tighten the cable plug using 1.3 ± 0.1Nm.
6.5 USB ports
Additional USB devices can be connected to the device via ports USB0 and USB1.
Note the supported device types (Ò USB ports/8)!
In environments with strong electromagnetic interference, the availability of the USB interfaces
may be impaired.
u If there are problems with the availability of the USB interface, restart the device.
The USB ports have overload protection.
The USB ports have short circuit protection.
Available sum currents on both USB ports for the supply of the connected devices: max. 1.5A
The Data - and Data + pins of the USB port are not protected against a short circuit with cables that
carry a voltage outside the valid range of 0.3...3.6 V DC.
ATTENTION
Short circuit of the Data - or Data + pins of the USB port with a live conductor outside the
voltage range.
w Destruction of the USB interface
u Take the necessary protective measures.
Wiring:
3
1 2
4
5
1: +5VDC
2: Data -
3: Data +
4: n.c.
5: GND

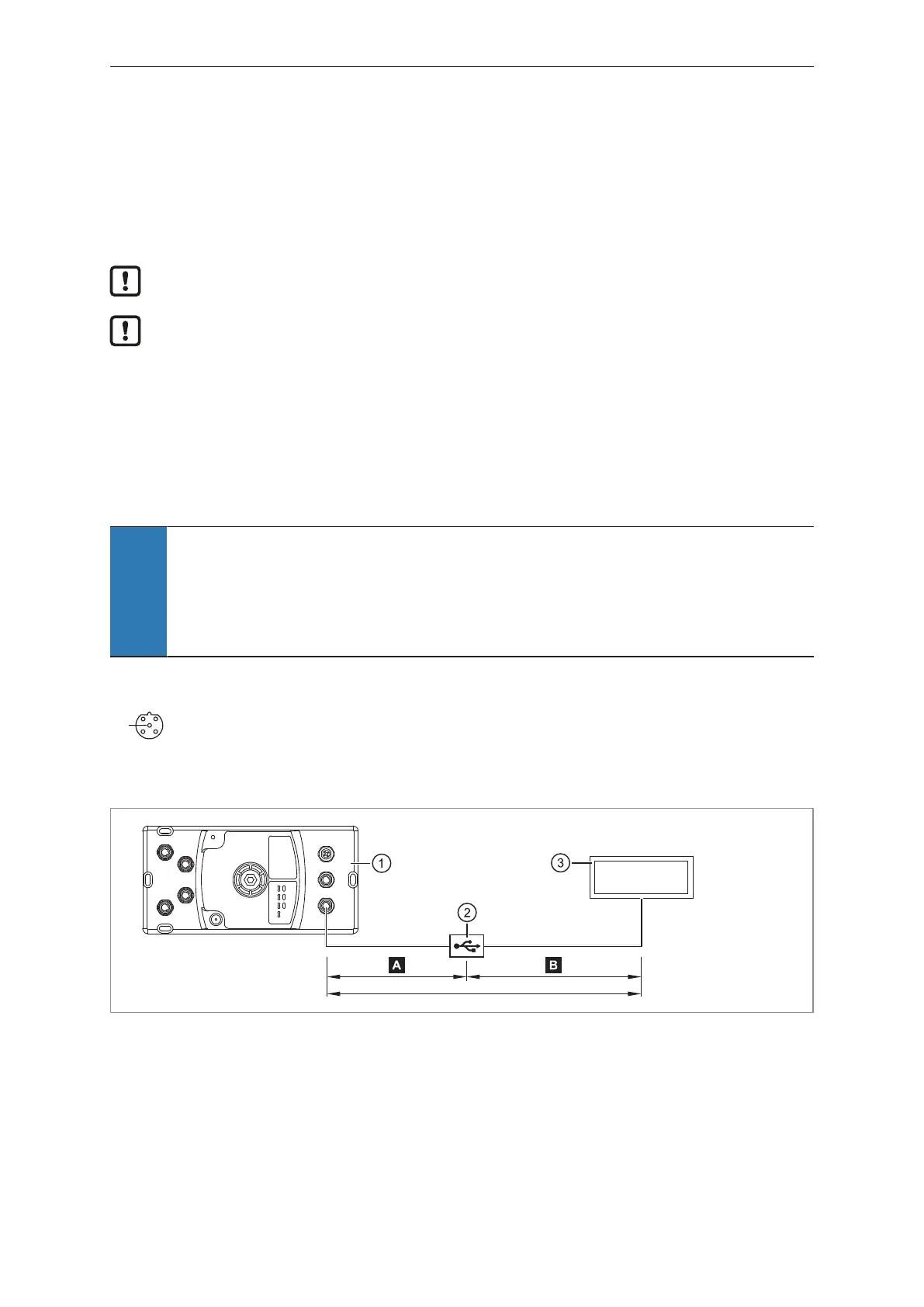

Connection options:
≤ 3,0 m
1: Device A: Permanent connection: device – USB connector
2: USB connector B: Temporary connection: USB connector – USB device
3: USB device
