Optional USB Extender Mounting Options
The bottom of the enclosure features four convenient pre-drilled holes for optional mounting. Based on
your requirements, choose from two available mounting options:
1. USB Extender Mounting Kit (Purchased separately Order Part #10-00620 USB Mounting Kit - Silver)
2. USB Extender Direct Surface Mounting (Using your own hardware, stencil provided on page 10)
OPTION 1: USB Extender Mounting Kit - each kit includes:
• 2 mounting brackets
• 4 (M3) locking washers
• 4 (M3 x 10mm) Phillips screws
• Mounting bracket installation guide (see diagram below)
1 kit required to mount per LEX or REX

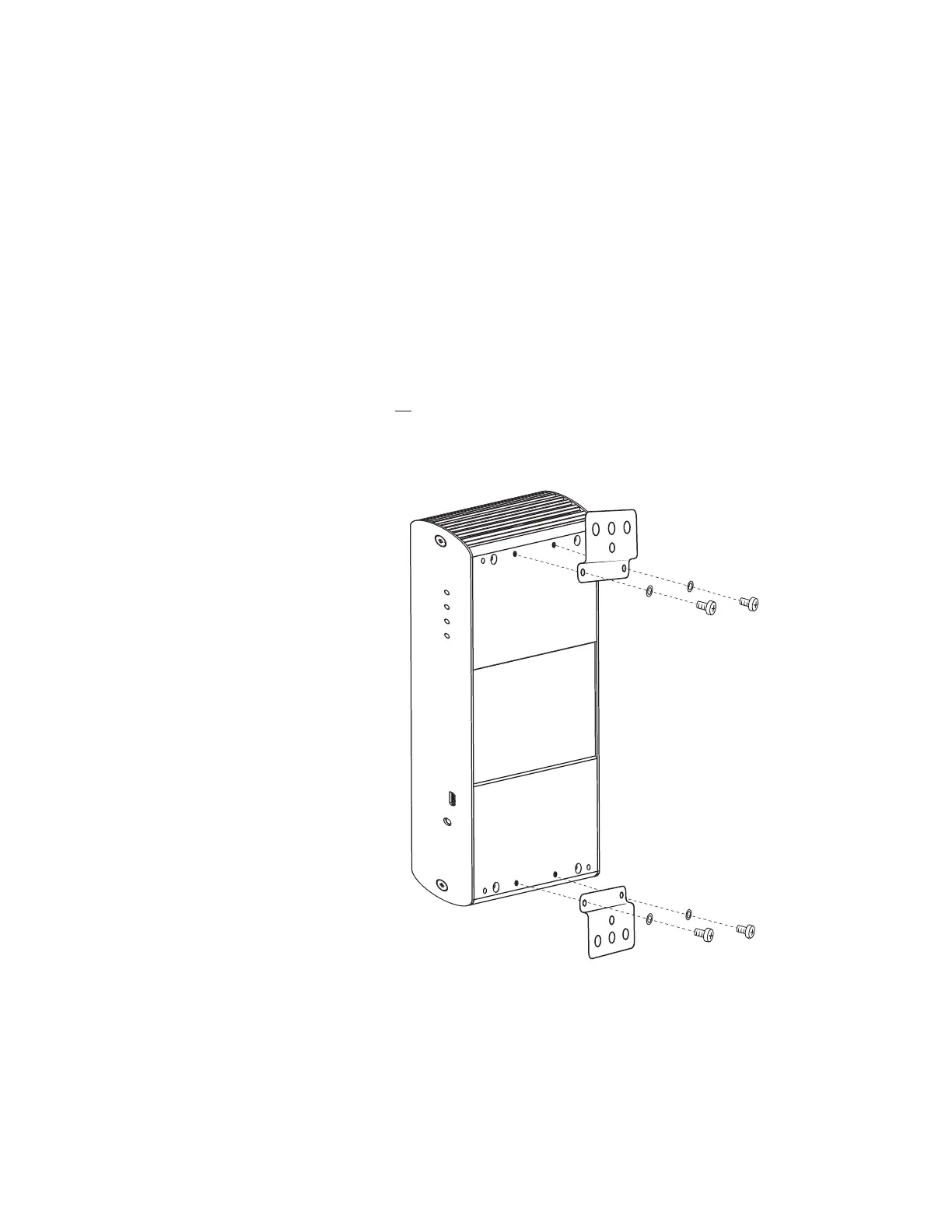

Using a Phillips screwdriver, in the order as illustrated below, fasten and secure the provided screws, locking
washers and brackets into place.
Once the bracket mounting is secured onto the extender, it is ready for mounting onto a surface. Please note
you will need to provide your own screws to secure the extender using the available slots on each bracket.
