10

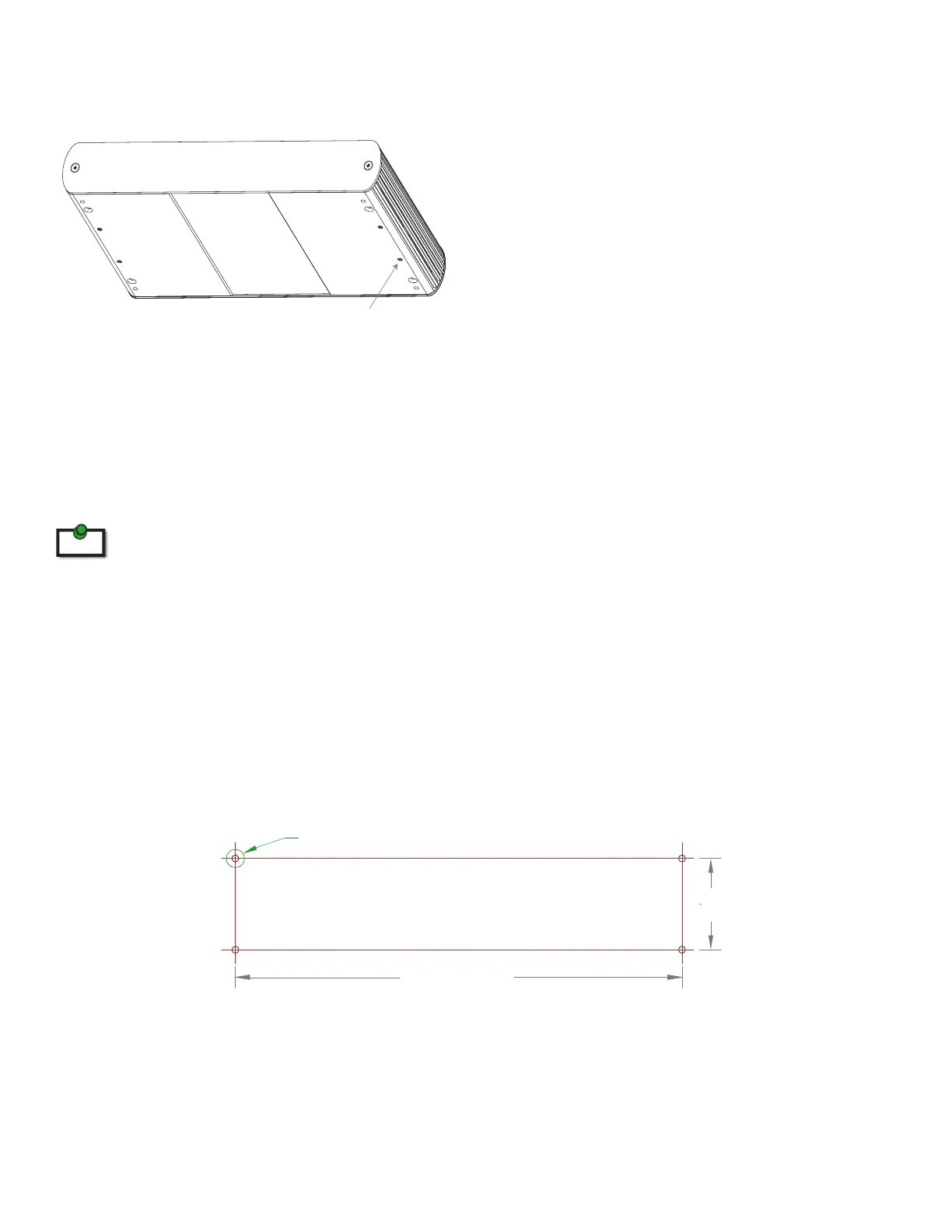

OPTION 2: USB Extender Direct Surface Mounting (using your own hardware)
The bottom of the enclosure features four pre-drilled holes for optional surface mounting.
Distance between the enclosure mounting holes:
42.0mm x 205.5mm
1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or
printing a stencil from www.icron.com/pdf/R-M-stencil.pdf .
2. Hardware recommendation: M3 locking washers and M3 screws (4 of each per extender) noting
screw length will depend upon thickness of mounting surface.
3. Drill through each of the four-hole markings on the mounting surface using a 3.97mm (5/32”) drill bit.
4. Align the bottom enclosure holes to the newly drilled out holes on the mounting surface.
5. Place a locking washer on each of the four screws and using a screwdriver, fasten the extender into place.
mounting hole
Direct Surface Mounting Measurement Stencil
205.5mm (8.0905”)
42.0mm
(3.0315”)
4.0mm (5/32”) in 4 places
The stencil illustration pictured below is only 50% of the original size. To access this stencil le (to scale),
simply go to: www.icron.com/pdf/R-M-stencil.pdf .
note
Do not exceed a screw depth of 10mm (0.4”) into the unit or damage may occur.
