Optional USB Extender Mounting Options
The bottom of the Ranger 2301 Series enclosures feature four convenient pre-drilled holes for optional
direct surface mounting and four mounting slots for easy cable-ties. Based on your requirements, choose
from three available mounting options:
1. USB Extender Mounting Kit
2. USB Extender Direct Surface Mounting
3. USB Extender Cable-Tie Mounting
Option 1: USB Extender Mounting Kit
OrderPart#10-00535USBMountingKit(2301/12)-Silver(Availableforpurchaseseparately)
1 kit required to mount per LEX or REX
Each kit includes:
• 2 mounting brackets
• 4(M2.5)lockingwashers
• 4(M2.5x7.0mm)Phillipspanheadscrews

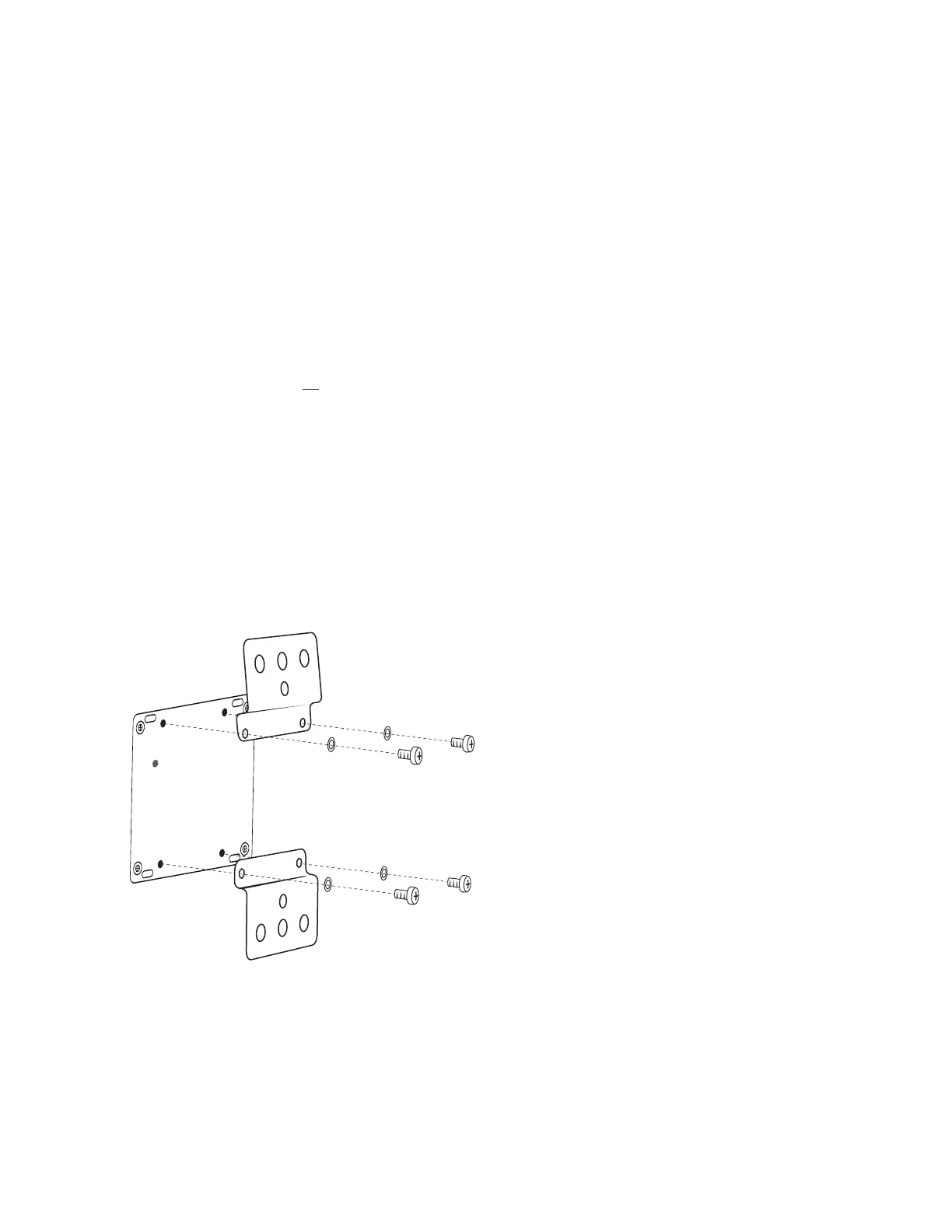

• Mountingbracketinstallationguide(see diagram below)
Using a Phillips screwdriver, in the order as illustrated below, fasten and secure the provided screws, locking
washers and brackets into place.
12
