Option 2: USB Extender Direct Surface Mounting (using your own hardware)
The bottom of the Ranger 2301 Series enclosures feature four pre-drilled holes for optional direct surface
mounting. Using the stencil below, along with your own hardware you can directly mount your USB Extender
on a surface.
Distance between the enclosure mounting holes:
42.00 x 62.53mm
1. Markthecenterpointofeachofthefourholesonyourmountingsurfaceeitherbydirectlymeasuringor
using a print out of the stencil below.
2. Hardwarerecommendation:M2.5lockingwashersandM2.5screws(4ofeachperextender)noting
screw length will depend upon thickness of mounting surface.
3. Drill through each of the four hole markings on the mounting surface using a 3.70mm (0.1457”) drill bit.
4. Align the bottom enclosure holes to the newly drilled out holes on the mounting surface.
5. Place a locking washer on each of the four screws and using a screwdriver, fasten the extender into place.
To ensure the stencil below prints to scale be sure to set the page scaling setting to “none”.

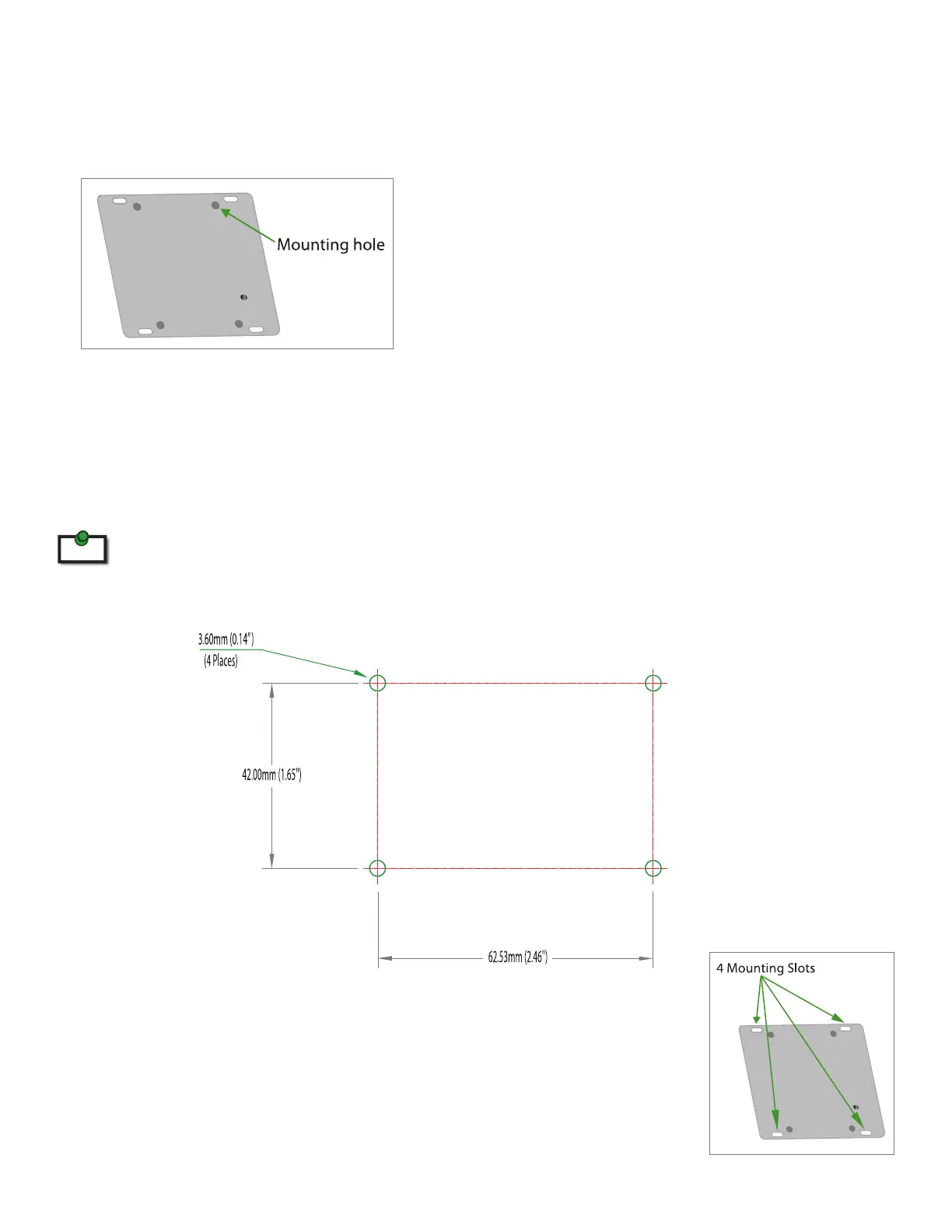

Direct Surface Mounting Measurement Stencil
Option 3: Cable-Tie Mounting
The bottom of the Ranger 2301 Series enclosure also features four convenient
slots for cable mounting. Simply thread a cable tie, (also called tie-wrap or zip tie),
into the mounting slot and through the cable tie head, and secure it to a pole or
other surface by pulling it tight. Cable ties are not included with this system due to
varying lengths dependent upon the application.
