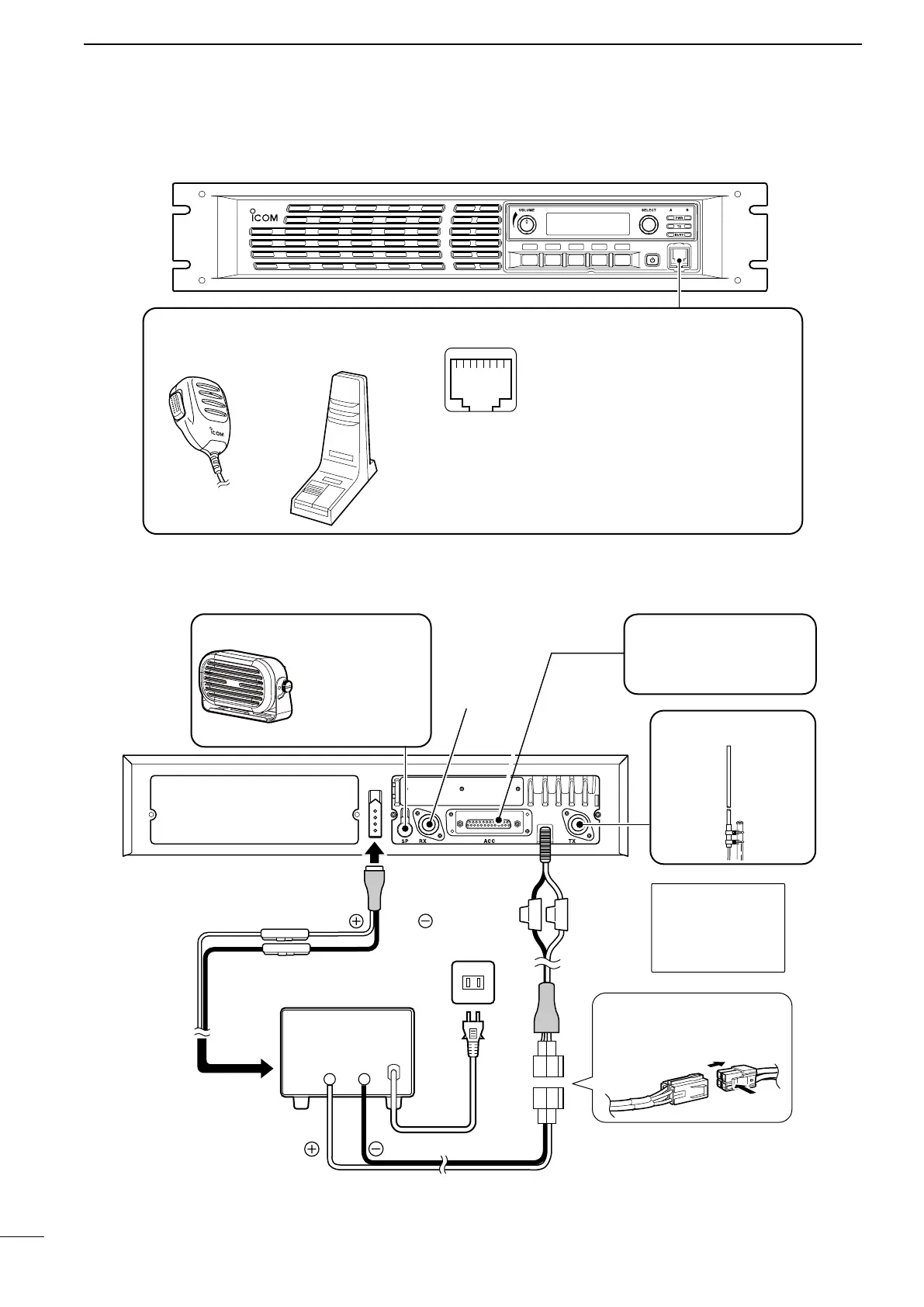

Front panel connection
P
0
P
1
P
2
P
3
P
4
SM-26 DESKTOP
MICROPHONE
(optional)
MICROPHONE CONNECTOR (Front panel view)
HM-152 HAND
MICROPHONE
(optional)
P
CAUTION: DO NOT short pin 1 to ground as this can damage
the internal 8 V regulator. DC voltage is applied to pin 1 for
microphone operation. We only recommend Icom microphones.
+8 V DC output (Max. 15 mA)
Output port for PC programming
NC
$ M PTT (Input port for TX control)
/ Microphone ground
: Microphone input
E Ground
P Input port for PC programming
■
Rear panel connection
ACC CONNECTOR (p. 3)
Used for external equipment
control.
[RX ANT]
(p. 4)
[TX ANT] (p. 4)
EXTERNAL SPEAKER
R WARNING!
NEVER remove the
fuse holder from the
DC power recepta-
cle or cable.
4 Ω external speaker.
(3.5 W min.)
Black
Red
Black
Red
32 V 20 A
fuses
DC power supply*
2
AC outlet
AC cable
Supplied DC power
cable (OPC-1784)
13.6 V, at least 20 A
Black
_
Red
+
Push
R When you disconnect the
DC power cable, take care to
not crack of your fingernail.
Supplied DC power
cable (CAB-1149)*
1
125 V 1 A fuses
*
1
This connection is used to activate the cooling fan on the front panel.
*
2
A DC power supply is required 13.2 V for European or Australian versions, or at least 10 A for 25 W versions.
5
2
INSTALLATION AND CONNECTIONS
