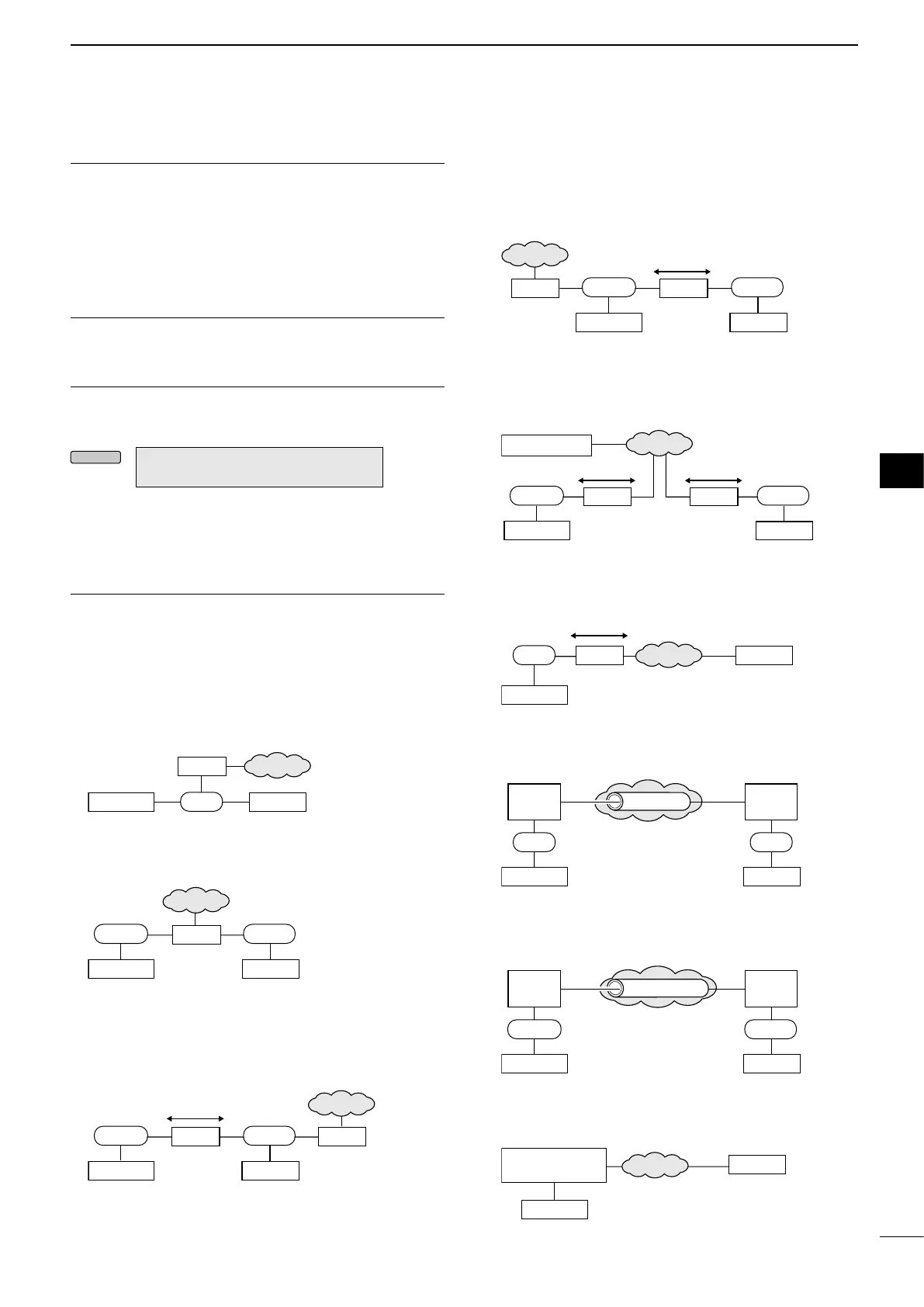

8-14
BASIC MANUAL
SET MODE
8
8
Default Gateway* (Default: . . . .)
Sets the Default Gateway of the IC-7760.
L A Default Gateway setting is required when:
- Remotely controlling the IC-7760.
- Using the NTP function.
- Connecting the controller and RF deck between dierent
segments.
Primary DNS Server* (Default: . . . .)
Sets the Primary DNS Server address.
Secondary DNS Server* (Default: . . . .)
If there are two DNS server addresses, sets the
secondary DNS server address.
MENU
»
SET > Network >
Controller Connection (via LAN)
L These settings are valid after changing settings with the
controller and RF deck connected, and restarting the
transceiver.
Connection Route*
(Default: LAN (in Same Segment))
Selects the connection route between the controller
and RF deck.
L When directly connecting the controller and the RF deck,
this setting is disabled.
L See the Advanced manual for details on each connection
route.
• LAN (in Same Segment):
The controller and RF deck are in the same segment.
RF deckRF deck
ControllerController
RouterRouter
Internet
LAN
• LAN (from Dierent Segment):
The controller and RF deck are connected between
dierent segments .
RF deckRF deckControllerController
RouterRouter
Internet
LAN 2 LAN 1
• LAN (by on Controller Port FWD):
The controller and RF deck are connected between
dierent segments. The controller is on the LAN
side of the router with forward ports, and the RF
deck is on the WAN side.
RF deckRF deckControllerController
RouterRouter RouterRouter
Forwarding ports
WANLAN
Internet
LAN 2 LAN 1
• LAN (by on RF Deck Port FWD):
The controller and RF deck are connected between
dierent segments. The controller is on the WAN
side of the router with forward ports, and the RF
deck is on the LAN side.
RF deckRF deck
RouterRouter
ControllerController
RouterRouter
Internet
Forwarding ports
LANWAN
LAN 2 LAN 1
• Internet (by on Both sides Port FWD):
The controller and RF deck are connected through
the Internet, and routers are on both the controller
and RF deck side.
RF deckRF deck
RouterRouter
Forwarding ports
ControllerController
RouterRouter
Dynamic DNSDynamic DNS
Forwarding ports
Internet
LAN 2
LAN 1
• Internet (by on Controller Port FWD):
The controller and RF deck are connected through the
Internet, and the RF deck has a global static IP address.
RF deckRF deck
ControllerController
RouterRouter
Forwarding ports
Internet
*
LAN
* Needs a global IP address.
• Internet (L2 VPN in Same Segment):
The controller and RF deck are connected through
the Internet using the Layer 2 VPN (such as L2TP).
Internet
RF deckRF deck
ControllerController
L2 VPN
Router
L2 VPN
Router
L2 VPN
L2 VPN
Router
L2 VPN
Router
LAN LAN
• Internet (L3 VPN from Di Segment):
The controller and RF deck are connected through
the Internet using the Layer 3 VPN (such as PPTP).
Internet
L3 VPN
RF deckRF deck
ControllerController
L3 VPN
Router
L3 VPN
Router
L3 VPN
Router
L3 VPN
Router
LAN 2
LAN 1
• Internet (with Static IP Address):
The controller and RF deck are connected through
the Internet, and they have global static IP addresses.
RF deckRF deck
Router
with IP unnumbered
Router
with IP unnumbered
ControllerController
Internet
*
*
* Need 2 dierent global IP addresses
for the controller and 1 global IP
address for the RF deck.
