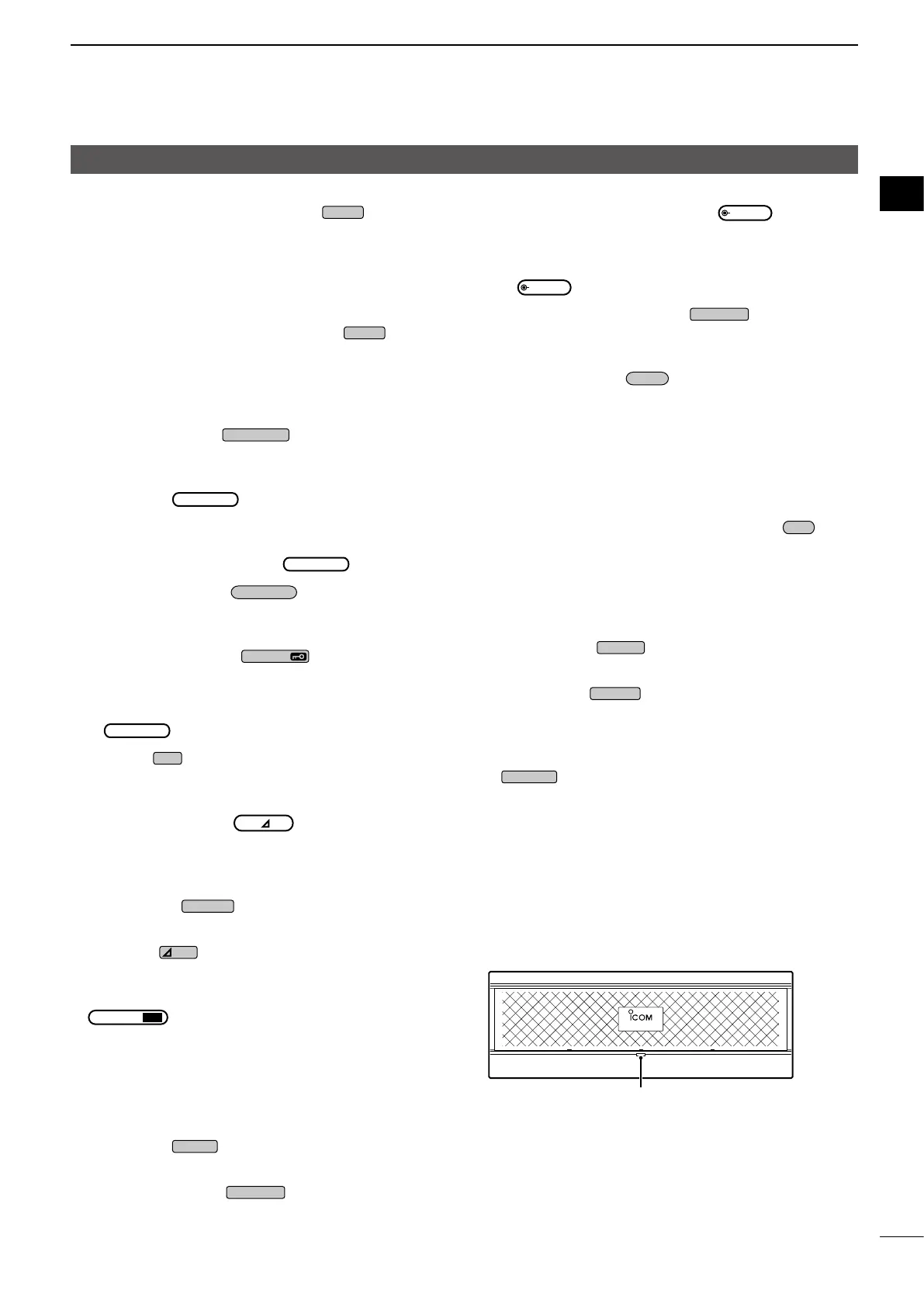

1-2
BASIC MANUAL
PANEL DESCRIPTION
1
1
Front panel (Controller/RF deck)
VOICE MEMORY RECORD KEY
REC
z Push to save the previously received signal for
the preset time period set in REC Time using the
Instant Replay function.
z Hold down for 1 second to start recording a QSO
audio onto an SD card.
VOICE MEMORY PLAY BACK KEY
PLAY
z Push to play back the last 5 seconds of the
Instant Replay memory.
z Hold down to play back all of the Instant Replay
memory.
AUTO TUNE KEY
AUTO
TUNE
(p. 4-11)
In the AM or CW mode, push to automatically tune
the operating frequency to a close-by signal.
MAIN DIAL
MAIN
DIAL
Rotate to change the operating frequency.
FRICTION ADJUSTER
Slide to adjust the friction of
MAIN
DIAL
.
SUB DISPLAY KEY
SUB DISP
(p. 1-10)
Push to change the information displayed on the
Sub screen.
SPEECH/LOCK KEY
SPEECH
z Push to announce the operating frequency or
mode.
z Hold down for 1 second to electronically lock
MAIN
DIAL
. (p. 3-9)
RIT KEY
RIT
(p. 4-1)
Push to turn the Receiver Incremental Tuning (RIT)
function ON or OFF.
RIT/∂TX CONTROL
RIT/
TX
Rotate to shift the receive or transmit frequency
up to ±9.99 kHz without changing the transmit or
receive frequency.
CLEAR KEY
CLEAR
Push to clear the RIT or ∂TX shift frequency.
∂TX KEY
TX
Push to turn the ∂TX function ON or OFF.
TWIN PASSBAND TUNING CONTROL
TWIN PBT
CLR
(p. 4-4)
z Rotate to adjust the IF lter’s passband width.
z Hold down for 1 second to clear the PBT settings.
TWIN PBT INDICATOR (p. 4-4)
Lights white when you change the IF passband
width.
SPLIT KEY
SPLIT
(p. 4-10)
Push to turn the Split function ON or OFF.
DUALWATCH KEY
DUAL-W
(p. 3-2)
Push to turn the Dualwatch function ON or OFF.
MULTI-FUNCTION CONTROL
MULTI
z Push to open the Multi-function menu for various
adjustments. (p. 1-8)
z Rotate to adjust the value that is assigned to
MULTI
. (p. 1-9)
MAIN/SUB CHANGE KEY
CHANGE
(p. 3-2)
Push to toggle the frequency, mode, and selected
memory channel between the Main and Sub band.
MEMO PAD KEY
MPAD
z Push to sequentially call up the contents in the
Memo Pads.
z Hold down for 1 second to save the displayed
contents into the Memo Pad.
MAIN/SUB INDICATOR (p. 3-2)
The indicator of the selected band lights white.
TRANSMIT FREQUENCY CHECK KEY
XFC
z Hold down to temporally open the squelch and
cancel the noise reduction and RIT function.
z While the Split or ∂TX function is ON, or using
a repeater, hold down to monitor the transmit
frequency.
NOTCH KEY
NOTCH
(p. 4-6)
Push to select the Notch function type.
TIMER KEY
TIMER
Push to turn the Sleep Timer or Daily Timer function
ON or OFF.
AUDIO PEAK FILTER/TWIN PEAK FILTER KEY
APF/TPF
z In the CW mode, push to turn the Audio Peak
Filter ON or OFF. (p. 4-13)
z In the RTTY mode, push to turn the Twin Peak
Filter ON or OFF.
POWER INDICATOR
• Lights orange while the internal power supply is
ON and in the standby mode.
• Lights blue while the RF deck is working.
RF deck
