1-1
BASIC MANUAL
Sub screen
(p. 1-10)
1
PANEL DESCRIPTION

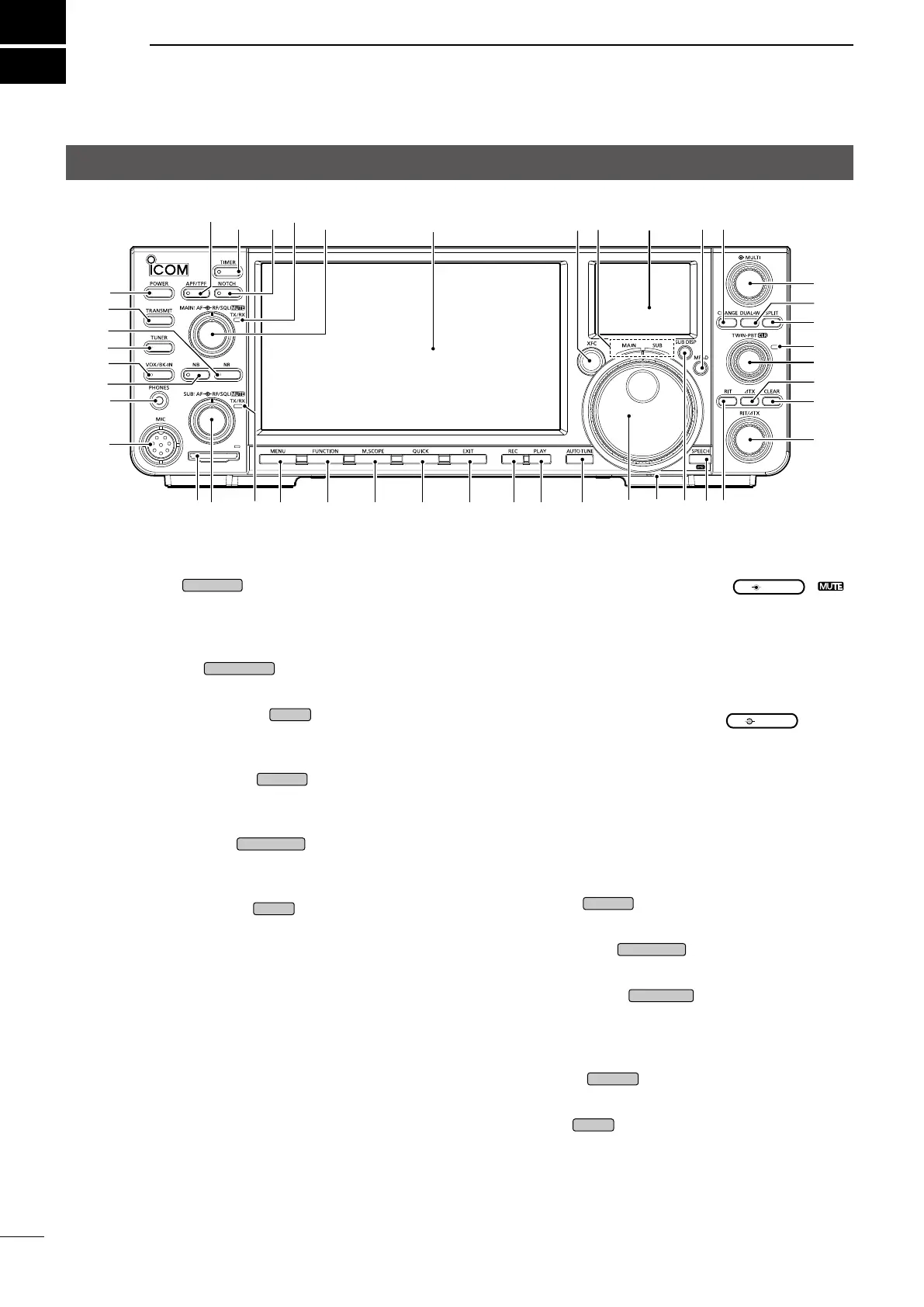

Front panel (Controller/RF deck)
1POWER KEY
POWER
(p. 3-1)
z Push to turn ON the controller.
z Hold down for 1 second to turn OFF the
controller.
2TRANSMIT KEY
TRANSMIT
(p. 3-9)
Push to toggle between transmit and receive.
3NOISE REDUCTION KEY
NR
(p. 4-7)
Push to turn the Noise Reduction function ON or
OFF.
4ANTENNA TUNER KEY
TUNER
(pp. 7-3, 7-4)
Push to turn the antenna tuner ON or OFF, or
activate the tuner.
5VOX/BREAK-IN KEY
VOX/BK-IN
Push to turn the VOX function and the Break-in
function in the CW mode (p. 4-12) ON or OFF.
6NOISE BLANKER KEY
NB
(p. 4-7)
Push to turn the Noise Blanker function ON or OFF.
7HEADPHONE JACK [PHONES] (p. 13-4)
Connect standard stereo headphones.
8MICROPHONE CONNECTOR [MIC] (p. 13-4)
Connect a microphone (user supplied).
9SD CARD SLOT [SD CARD] (p. 6-1)
Insert an SD card (user supplied).
• The indicator lights while an SD card is inserted, and
blinks while accessing the card.
VOLUME CONTROL/MUTE KEY
AF RF/SQL
/
L The upper control is for the Main band, and the lower
is for the Sub band.
z Rotate to adjust the audio output level. (p. 3-1)
z Push to turn the Mute function ON or OFF.
- The TX/RX indicator lights orange when the
Mute function is ON.
RF GAIN/SQUELCH CONTROL
AF RF/SQL
(p. 3-8)
Rotate to adjust the RF gain and squelch threshold
levels.
TX/RX INDICATOR
L The upper indicator is for the Main band, and the lower
is for the Sub band.
• Lights red while transmitting.
• Lights green while receiving.
MENU KEY
MENU
(pp. 1-7, 8-1)
Push to open the MENU screen.
FUNCTION KEY
FUNCTION
(p. 1-7)
Push to open the FUNCTION screen.
MINI SCOPE KEY
M.SCOPE
(p. 5-2)
z Push to display the Mini scope screen.
z Hold down for 1 second to display the Spectrum
scope screen.
QUICK KEY
QUICK
(p. 1-7)
Push to open the QUICK MENU screen.
EXIT KEY
EXIT
Push to exit a setting screen or return to the
previous screen.
1
2
3
4
5
6
7
8
9
Main screen
(p. 1-5)
Controller
