8 Electrical system
128 Exsis I/T - 01/23-1 - EHG-0027-02EN
The fuses are fitted next to the living area battery. The fuses are secondary
fuses for basic light 4 A (25 A) on the transformer/rectifier.
1 Flat fuse
(spare)
2 Flat fuse 10 A/red
(satellite unit)
3 Flat fuse 2 A/grey
(refrigerator control)
4 Flat fuse 2 A/grey
(for battery sensor, living area
battery)
5 Jumbo flat fuse 50 A/red
(for transformer/rectifier)

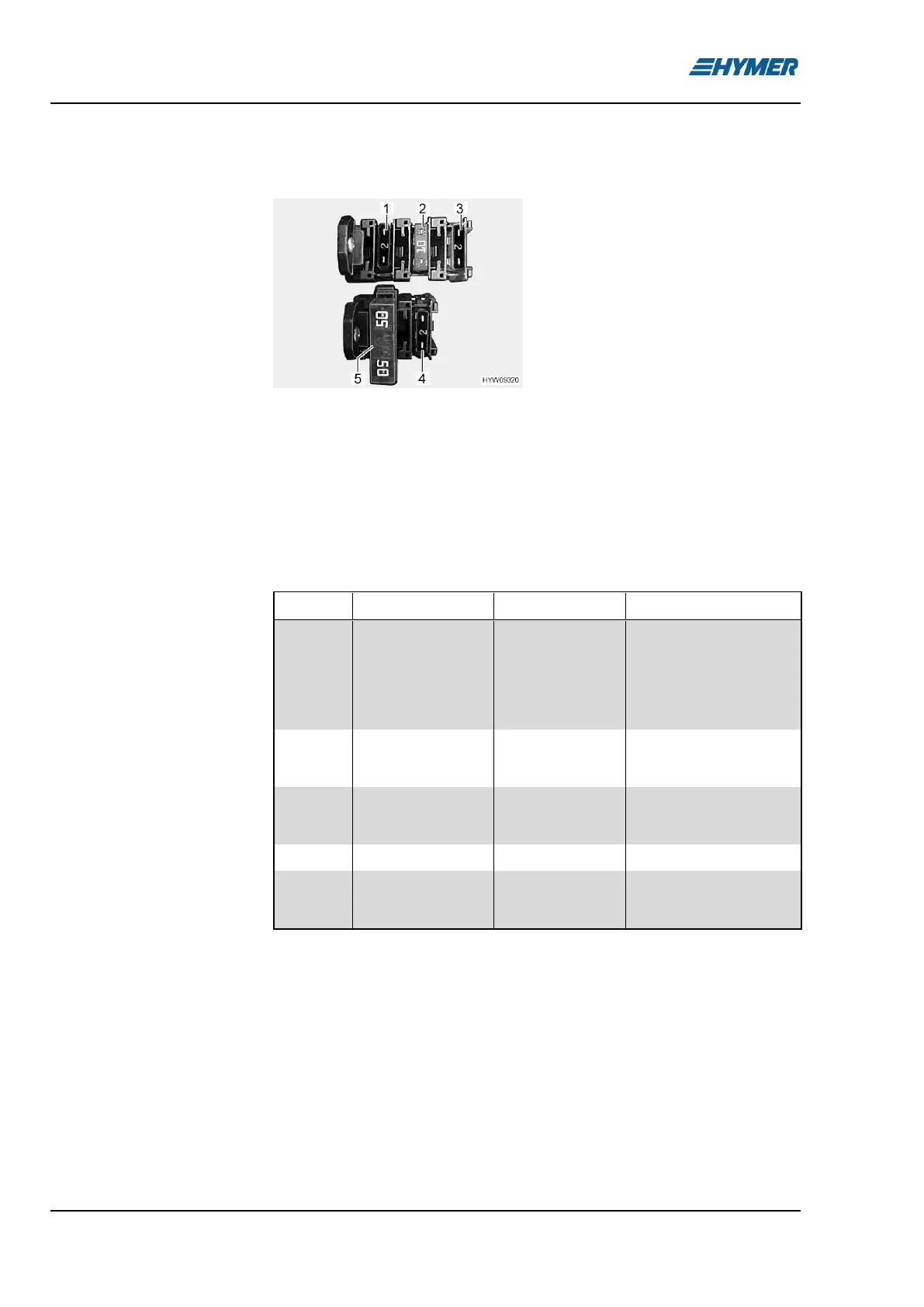

Fig. 109 Fuses (living area battery)
A relay box (AD01) is installed in the seat console in the driver's cabin on
the right hand side. The relay box helps generate the signals for the chassis
lighting not provided by the base vehicle. The relay box can be used any-
where.
The circuit used by us can vary from the circuit provided by the manufac-
turer. Consequently, the circuit can also vary from the display on the relay
box type plate, which the manufacturer affixed.
Fu No
Function
Value/colour
Appliances
B2
Cl. 15 (Ignition on)
15 A blue
(for the skylight,
electrically oper-
ated: 10 A red)
Clamp 15 of the trailer
coupling, signal for day-
time running light, curve
light, spotlight cleaning for
Xenon, living room fan
heater
B3
Cl. 30 (constant pos-
itive)
15 A blue
Signal for curve light,
spotlight cleaning and
level control for Xenon
B5
Signal D+
Internal Polyswitch
(2 A)
D+ for transformer/recti-
fier, refrigerator, satellite
unit
B6
Spare
15 A blue
B7
Cl. 15 (Ignition on)
5 A light brown
Front side marker lights
(white/red), side marking
lamps (yellow)
Fuses on the fuse holder
on the living area battery
Fuses on the relay box
AD01
