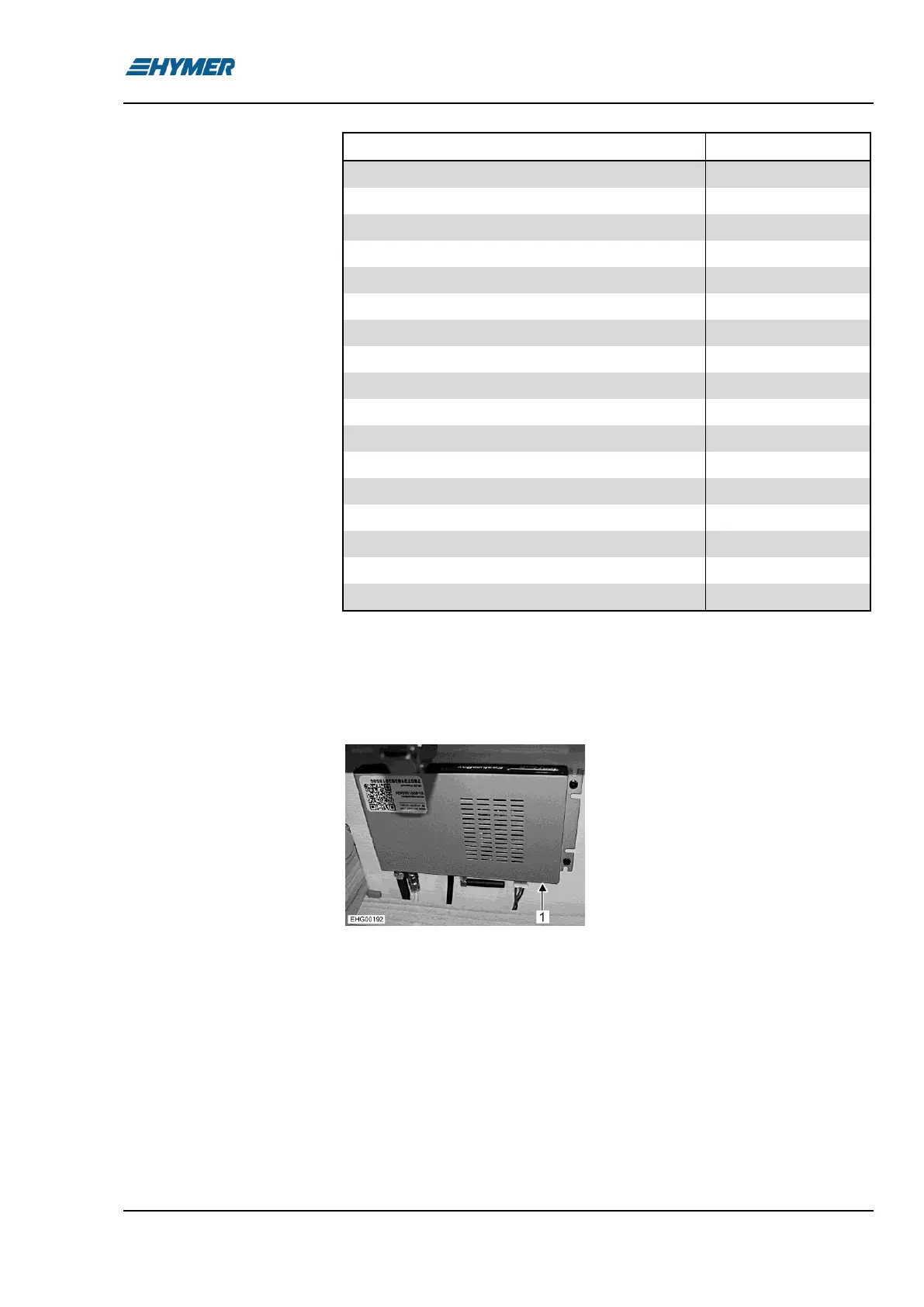

Electrical system 8
Exsis I/T - 01/23-1 - EHG-0027-02EN 129
Function
Value/colour
Fuses on the trans-
former/rectifier EBL 30
Solar charger module
15 A blue
Internal charger module
20 A yellow
Refrigerator
20 A yellow
Heater
10 A red
Basic light/entrance step/awning light
15 A blue
Basic light
25 A white
Basic light/radio
15 A blue
12 V sockets, USB charging socket
10 A red
Spare 2, electric pull-down bed
10 A red
12 V sockets, USB charging socket
10 A red
Multimedia
10 A red
Spare 1
10 A red
Circuit 1 (light 1)
15 A blue
Auxiliary charging unit
20 A yellow
Circuit 2 (light 2, waste water tank drainage)
15 A blue
TV
10 A red
Water pump
7.5 A brown
The toilet has a maintenance-free fuse which resets automatically.
The fuse is located on the control unit of the TV satellite unit.
The control unit is installed in the wardrobe or in a wall-mounted cupboard.
1 10 A fuse/red
Fig. 110 Control unit (TV satellite
unit, ten Haaft)
Fuse for the Thetford
toilet
Fuse for TV satellite unit
(ten Haaft)
