21
Installation
CAUTION
A switch and fuse or circuit breaker must be used to protect electronic devices and
ensure safe and reliable operation.

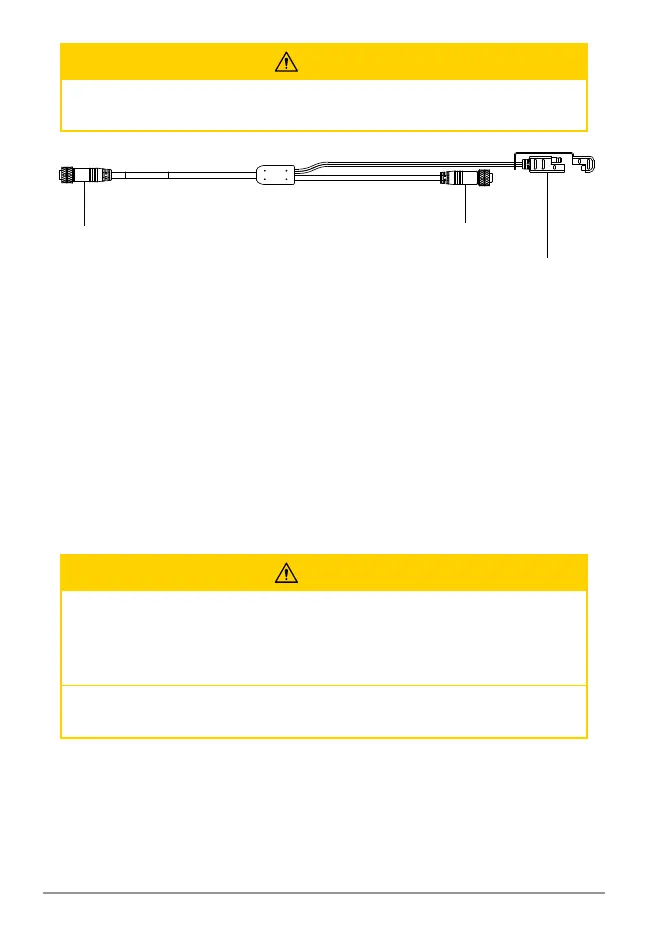

Connect to AS GPS N2K sensor
Connect to Humminbird NMEA 2000 port
Connect to Power SAE cable
5.a Main Switch/Fuse Panel: If a fuse terminal is available, use crimp-on type
electrical connectors (not included) that match the terminal on the fuse
panel. Attach the black wire to ground (–), and the red wire to positive (+)
12 VDC power. Install a 1 Amp fuse (not included) for protection of the unit.
OR
5.b Battery Switch: Install the battery switch (not included) using the instructions
provided with it. You will also need to obtain and install an inline fuse holder
and a 1 Amp fuse (not included) for the protection of the unit. Attach the black
wire to ground (-) and the red wire to positive (+) 12 VDC power.
CAUTION
If you are unable to obtain a battery switch and are forced to connect the power
cable directly to the battery, be aware that this will drain the battery. Humminbird
recommends connecting to a power source/battery via a switch and fuse/circuit
protection device.
It is important to finish all installation connections before powering on the fish
finder.
