PS/2 connector
To remove the PS/2 connector, use these procedures.
Table 4-8 PS/2 connector description and part number
Description Spare part number
PS/2 connector P26764-001
Before removing the PS/2 connector, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 19).
2. Remove the access panel (see Access panel on page 19).

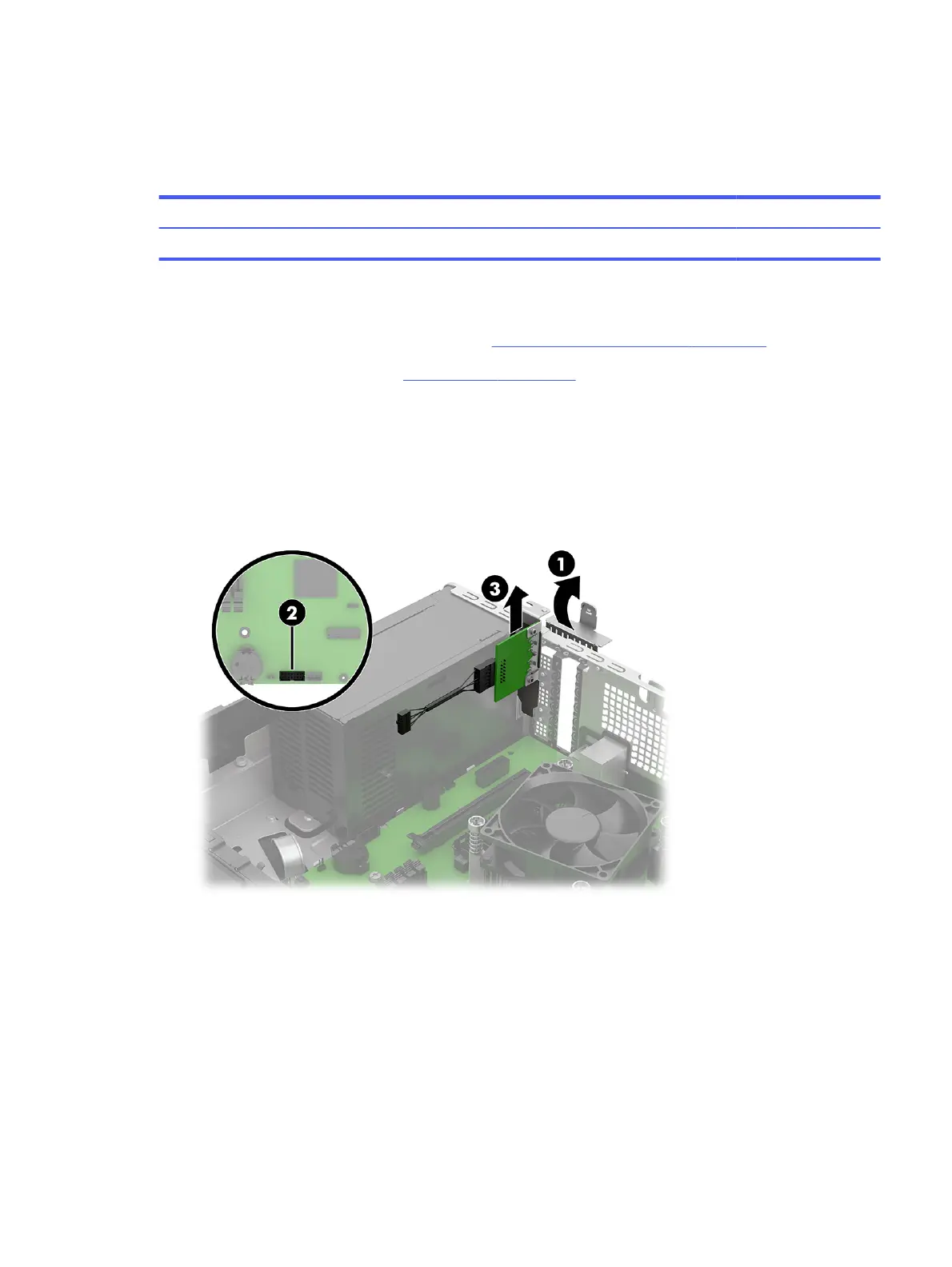

Remove the PS/2 connector:
1. Rotate the release latch (1) to the open position.
2. Disconnect the connector cable from the system board (2).
3. Remove the connector assembly (3) from the computer.
To install the PS/2 connector, reverse the removal procedures.
Heat sink with fan
To remove the heat sink with fan, use these procedures.
PS/2 connector
29
