Removal and replacement procedures

Maintenance and Service Guide 4–27

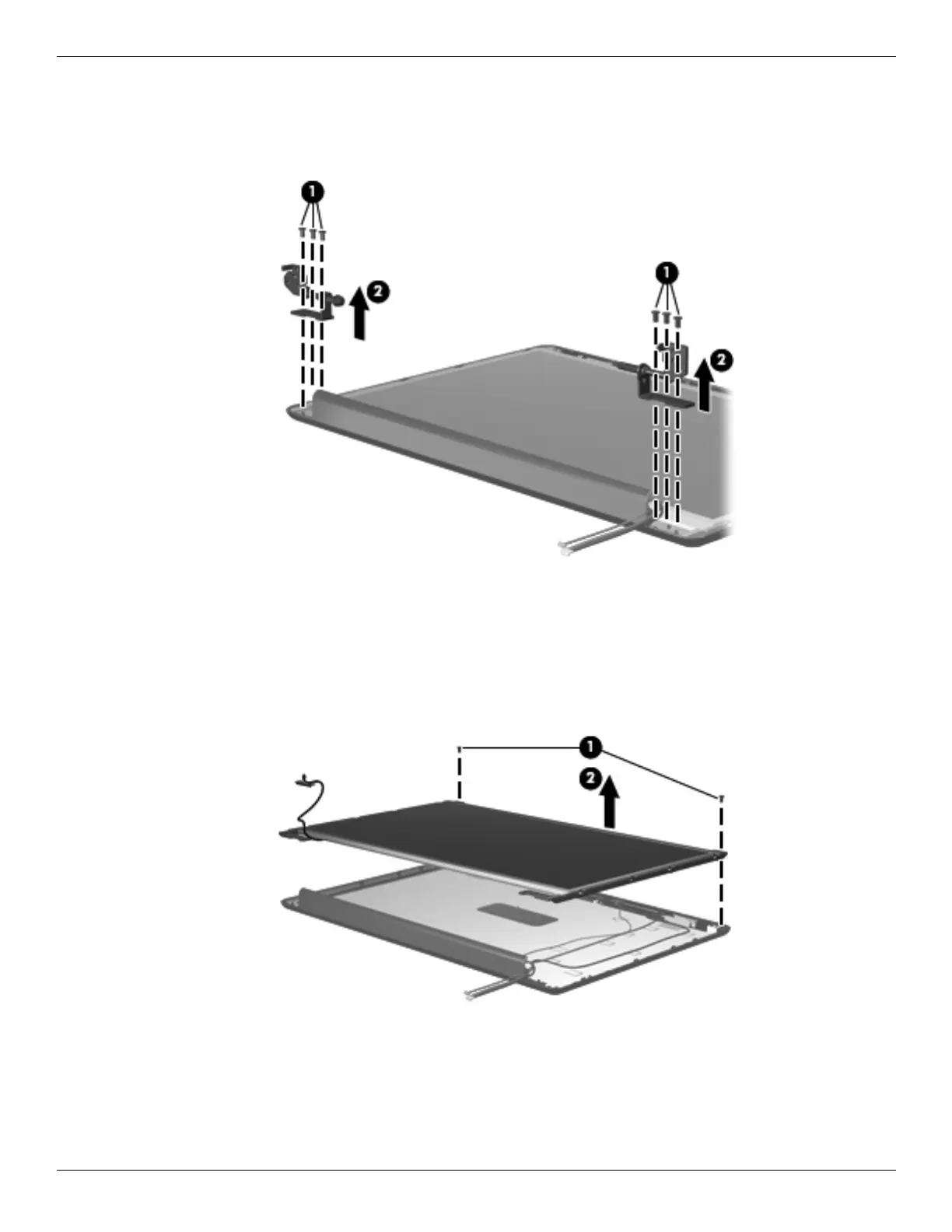

12. If it is necessary to replace the display hinges, remove the 3 Phillips PM2.5×6.0 screws 1 that secure each

hinge to the display enclosure.

13. Remove the display hinges 2. The display hinges are available in the Display Hinge Kit, spare part number

530993-001.

14. If it is necessary to replace the display panel, remove the 2 Phillips PM2.5×6.0 screws 1 that secure the display

panel to the display enclosure.

15. Remove the display panel 2 from the display enclosure.

The following display panels are available:

❏ For use with 16-inch display, spare part number 531216-001

❏ For use with 15.6-inch display, spare part number 517842-001.
