4–28 Maintenance and Service Guide

Removal and replacement procedures

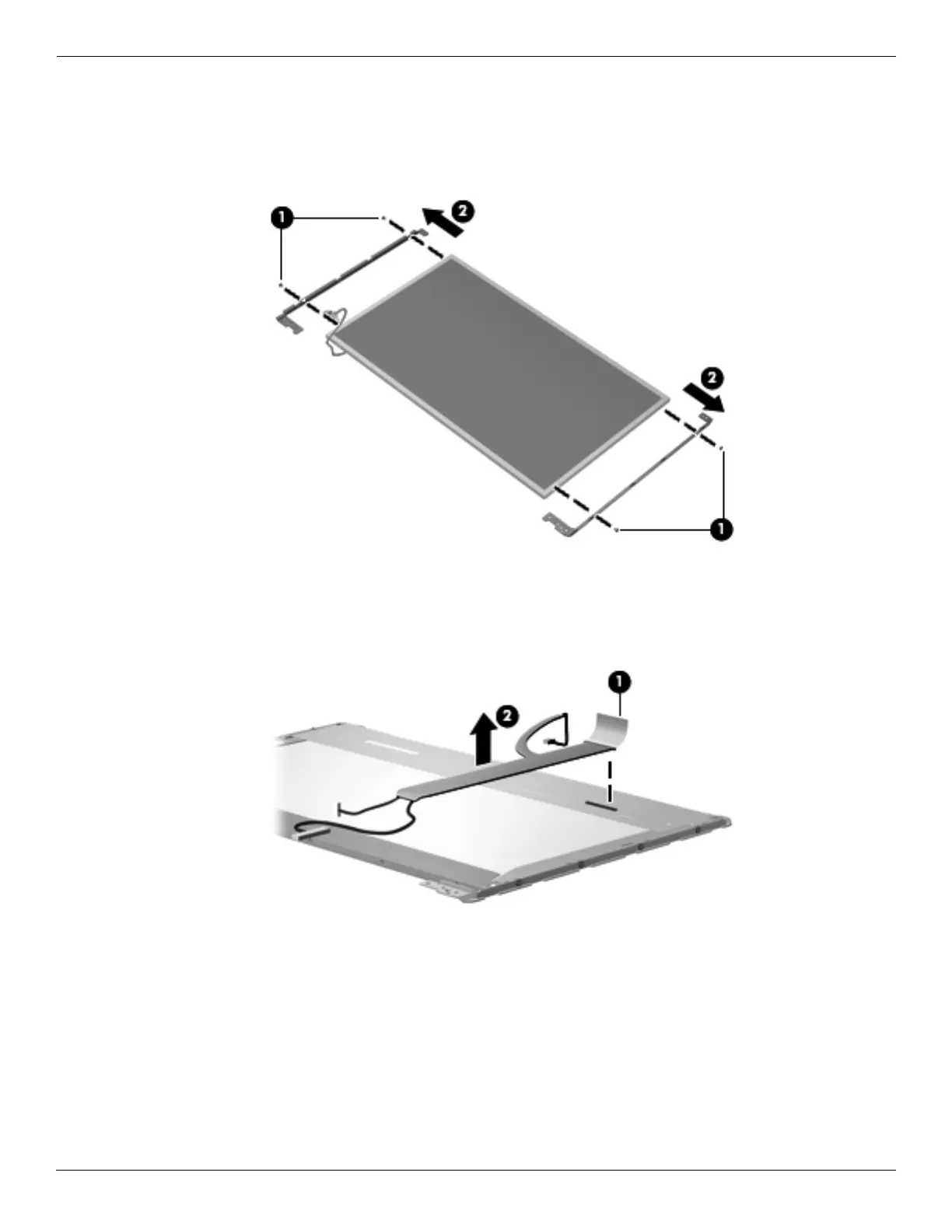

16. If it is necessary to replace the display panel brackets, remove the 2 Phillips PM2.0×3.0 screws 1 that secure

each bracket to the display panel.

17. Remove the display panel brackets 2 from the display panel. The display panel brackets for the 16-inch

display are available using spare part number 530996-001, and for the 15.6-inch display using spare part

number 530995-001.

18. If it is necessary to replace the display panel cable, which is attached to the back of the display panel with clear

adhesive tape, remove the tape 1 to release the cable from its connector. The display panel cable kit includes

the camera module cable and is available using spare part number 534077-001.

19. Remove display panel cable 2.
