28
16) Make sure the center hinge bracket upper thrust washer is in place on top of the center
hinge bracket upper pin.
17) Align the upper hinge bracket to the upper door in the orientation that allows for closed
door installation. Make sure the thrust washers are in place between the upper hinge
bracket and upper door, then secure the upper hinge bracket to the door using the
spring cartridge screw and washer removed earlier. The spring cartridge shaft should
slide into the upper hinge bracket and be ush with the top of the doors upper hinge
bracket.
18) With the door in the closed position, place the upper doors nylon bearing onto the
center hinge bracket upper pin, then secure the upper hinge bracket to the cabinet with
the upper door in the closed position. See Fig. 36.
19) Verify swing. Move the control panel hole plugs to the other side, then replace and
secure the control panel and front panel in their correct positions. Verify light switch and
lock function and adjust as necessary.

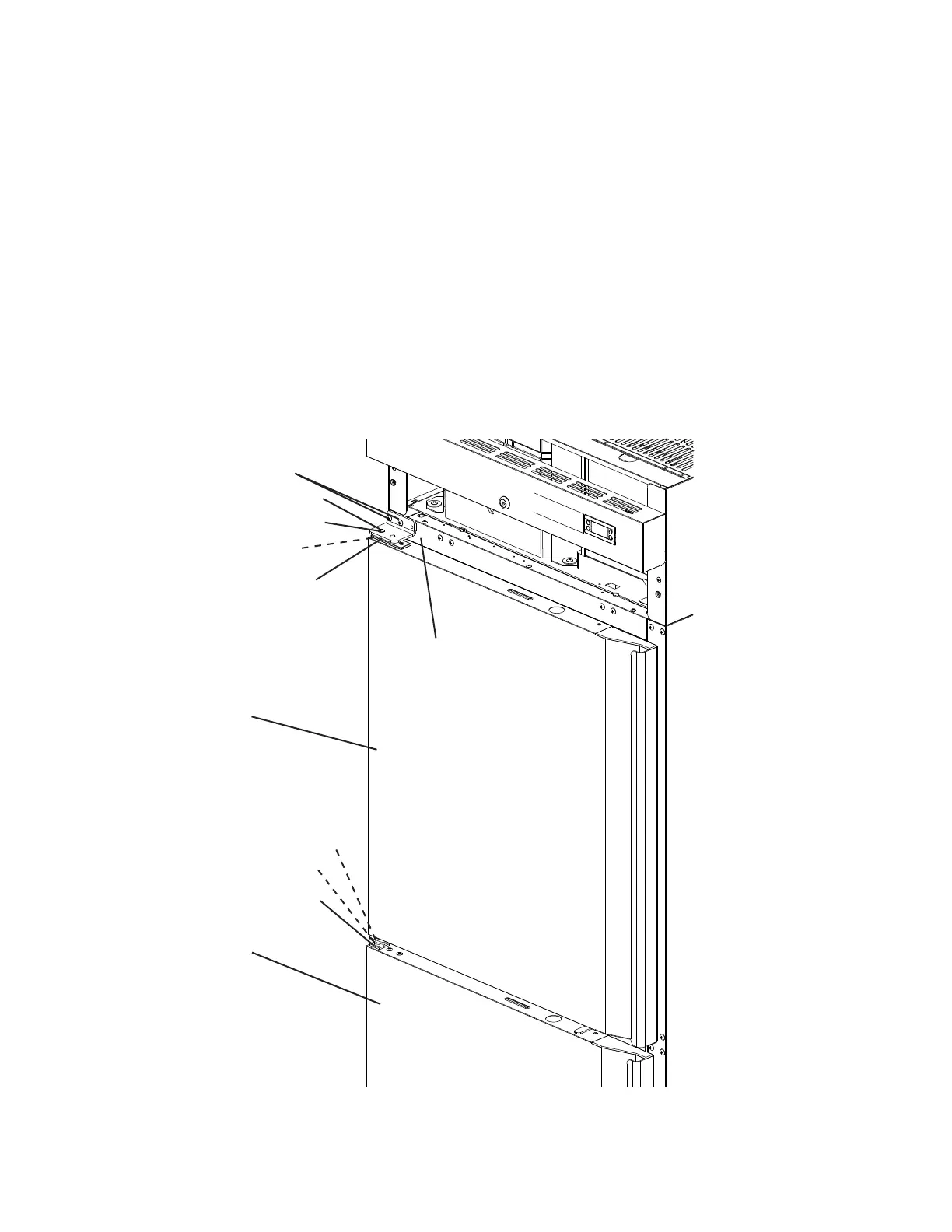

Fig. 36
Upper Hinge Bracket
Mounting Screws
Spring Cartridge Screw
Cabinet
Washer
Thrust Washers (2)
Upper Hinge Bracket
Upper Door
Nylon Bearing
Thrust Washer
Center Hinge Bracket
Lower Door
