29

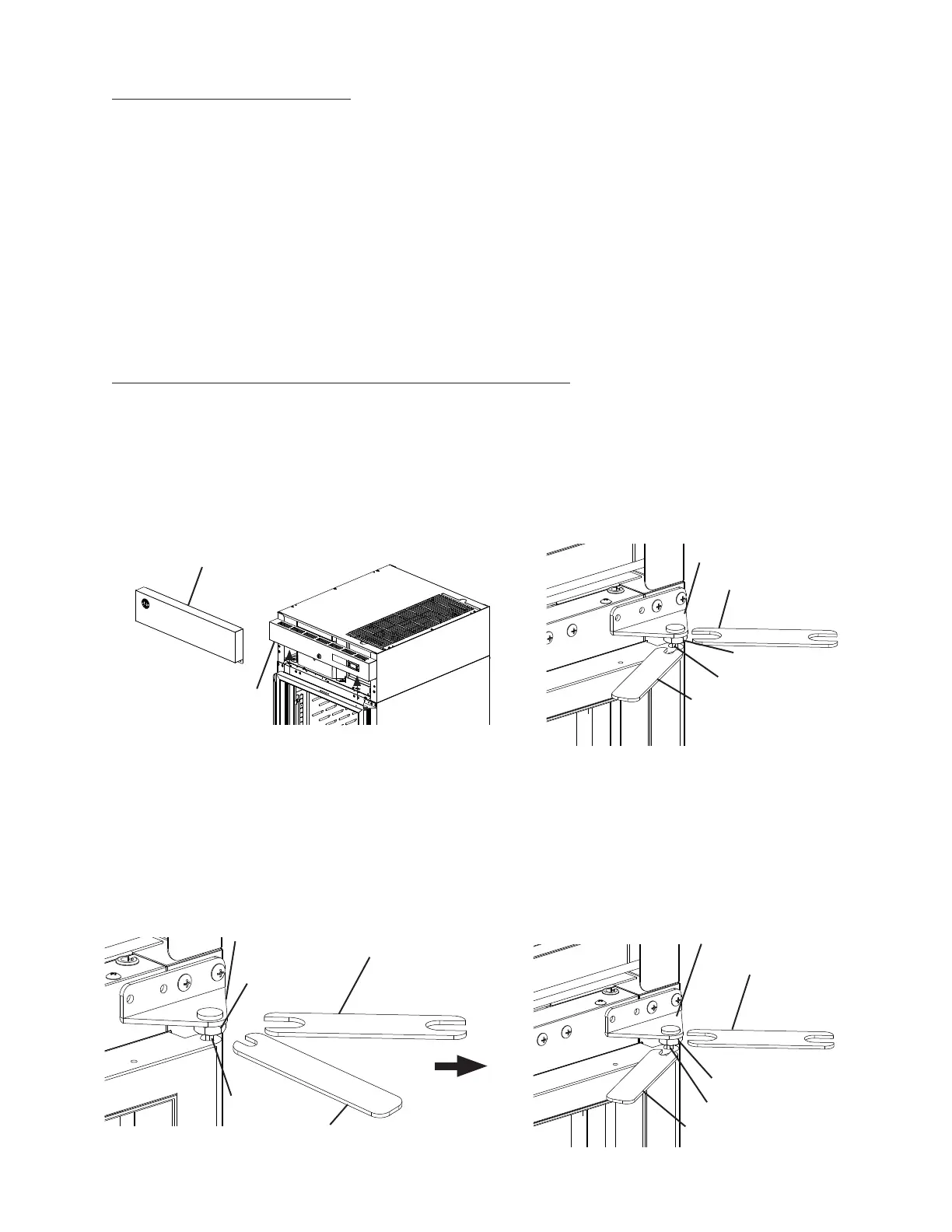

Fig. 37
Fig. 38
Fig. 39
Upper Hinge Bracket
Front Panel
Lock Nut
Upper Hinge Bracket
Lock Nut
3. Full Glass Door Reversal
Special Tools and Item Required:
Wrench A: 1 - 11/16" (17 mm) Thin Open End Tappet Wrench
Wrench B: 1 - 5/16" (8 mm) Thin Open End Tappet Wrench
Loctite Thread Locker Blue 242 or 243
Note: Hoshizaki wrenches and Loctite Thread Locker Blue are available through your
local distributer.
Wrench A: 3A8298-01,
Wrench B: 3A8299-01, and
Loctite Thread Locker Blue 243: 8504-0304 (10 ml bottle).
Hinge brackets are universal and can be used in both left and right-hinged
applications.
Example shows change from right hinged to left hinged.
1) Lock the casters.
2) Remove the front panel, then being careful not to pull the wires on the control module
and door switch(es), remove the control panel. Secure the control panel so that it does
not interfere with the hinge bracket and will not fall. See Fig. 37.
3) At the upper hinge bracket, place wrench B on the tension rod and hold (prepare for
tension pressure), then using wrench A, loosen the lock nut. See Fig. 38.
4) Turn wrench B counter-clockwise to relieve tension on the tension rod. Without releasing
the pressure on wrench B and the tension rod, use wrench A to tighten the lock nut.
See Fig. 39.
5) Grip wrench B in a new position on the tension rod and hold (prepare for tension
pressure), then using wrenchA, loosen the lock nut again. See Fig. 40.
6) Once loose, turn wrench B counter-clockwise to relieve tension on the tension rod.
Repeat until all tension is released from the tension rod.
Fig. 40
Control Panel
Wrench A
Tension Rod
Wrench B
Tension Rod
Wrench B
Wrench A
Lock Nut
Wrench B
Wrench A
Tension Rod
Upper Hinge Bracket
