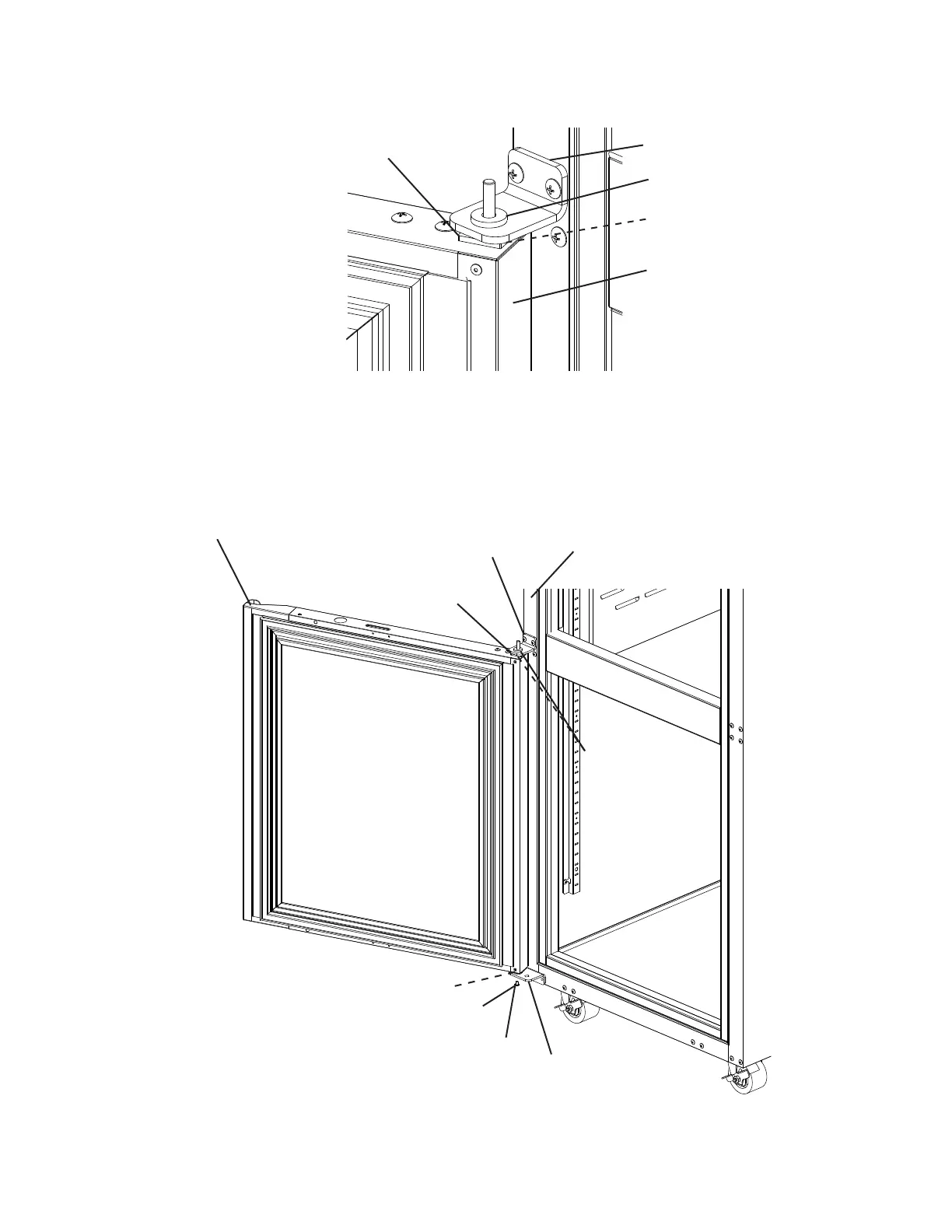

13) Place the center hinge bracket lower pin with thrust washer into the nylon bearing on
top of the door. Secure the center hinge bracket to the cabinet. See Fig. 34.
Fig. 35
Fig. 34
14) Secure the door to the lower hinge bracket using the spring cartridge screw and washer.
Note: Be sure thrust washers (2) are in place between lower hinge bracket and door.
See Fig 35.
15) Verify swing.
Lower Door
Cabinet
Thrust Washers
Nylon Bearing
Center Hinge Bracket
Nylon Bearing
Center Hinge Bracket
Lower Door
Thrust Washers (2)
Thrust Washer
Thrust Washers (2)
Washer
Lower Hinge Bracket
Spring Cartridge Screw
