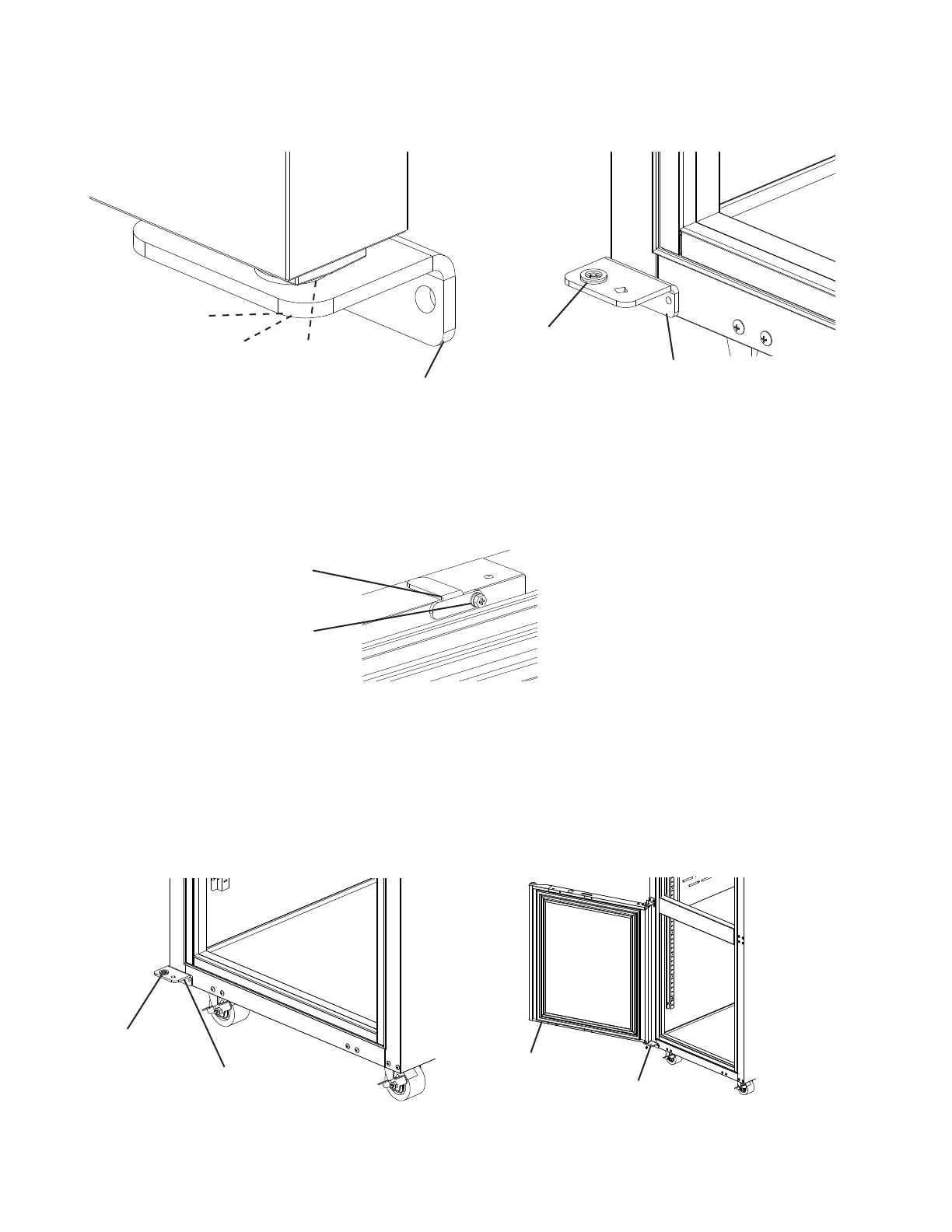

9) Remove the lower hinge bracket spring cartridge screw, washer, and thrust washers
from the door. Set the door aside. Next, secure the lower hinge bracket to the opposite
side. Make sure the lower thrust-washers are in place. See Fig. 31.
10) Rotate the former upper door 180 degrees to its new lower door orientation.
NOTICE! Care should be taken not to damage the door.
11) Attach the lower door latch to the newly rotated lower door (former upper door).
See Fig. 32.
12) Make sure the lower hinge bracket thrust washers (2) are in place, then with the lower
door (rotated upper door) in the maximum open position, place the door onto the lower
hinge bracket. See Fig. 33.
The spring cartridge shaft should slide into the lower hinge bracket and be ush with
the bottom of the lower hinge bracket.
Latch
Lower Hinge Bracket
Washer
Spring Cartridge Screw
Thrust Washers (2)
Screw-Bolt with
Threadlocker (5×16, SS)
Fig. 33
Lower Door
Fig. 32
Fig. 31
Lower Hinge Bracket
Thrust Washers (2)
Lower Hinge Bracket
Lower Hinge Bracket
Thrust Washers (2)
