23
8) Clear foam from the spring cartridge hole to allow for spring cartridge installation. Install
the spring cartridge and secure it to the door using the spring cartridge screws removed
in step 6. See Fig. 22. Next, align the upper hinge bracket to the door in the orientation
that allows for closed door installation. See Fig. 23. Secure the upper hinge bracket to
the door using the screw and washer removed in step 6.

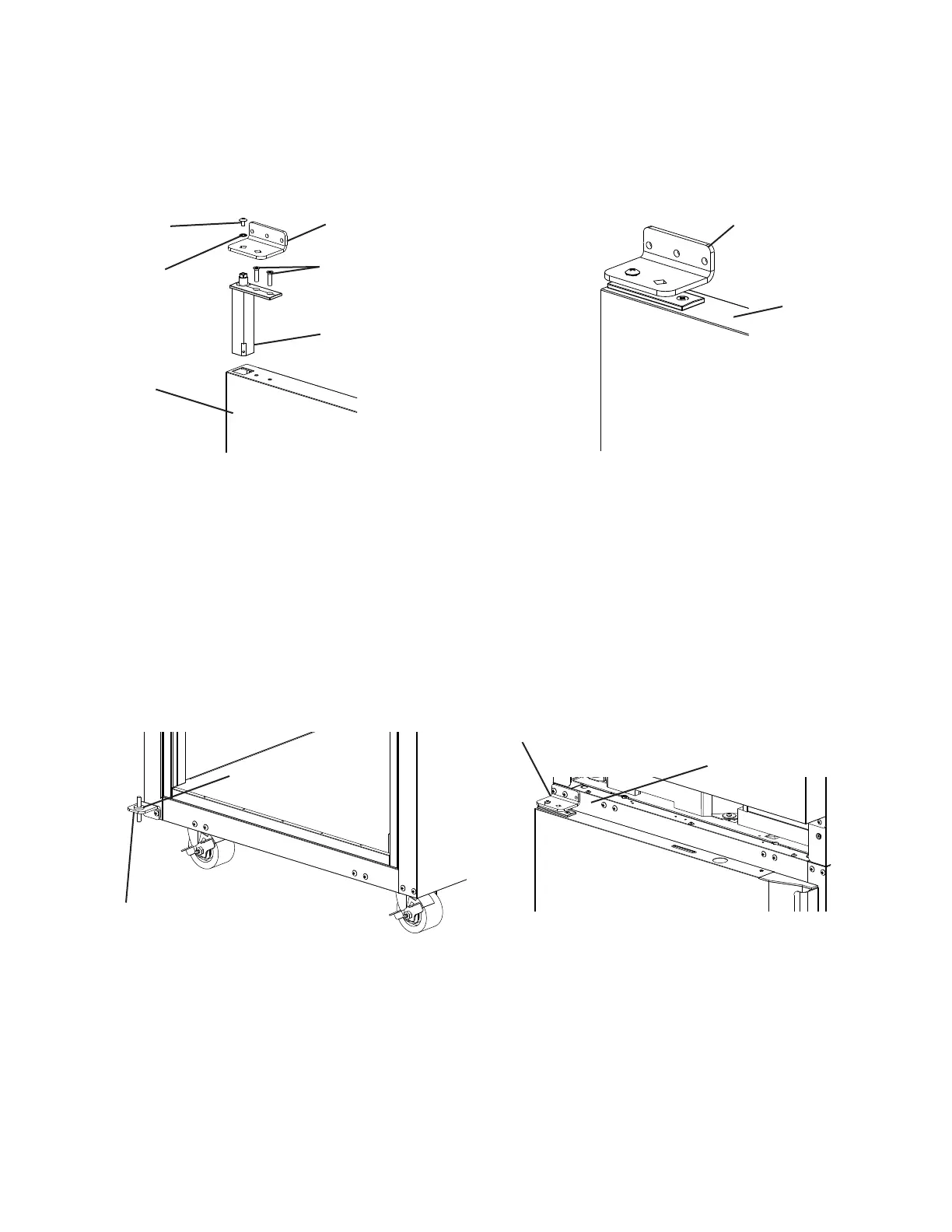

Fig. 22
Upper Hinge
Bracket Screw
Upper Hinge
Bracket Washer
Door
9) Make sure the thrust washer is in place, then mount the door onto the lower hinge
bracket (nylon bearing over lower hinge bracket pin). See Fig. 24.
10) Secure the upper hinge bracket to the appliance. See Fig. 25.
11) Verify swing. Move the control panel hole plugs to the other side, then replace and
secure the control panel and front panel in their correct positions. Verify the door switch
and lock function.
Fig. 24 Fig. 25
Fig. 23
Upper Hinge
Bracket
Spring Cartridge
Screws
Spring Cartridge
Door
Upper Hinge Bracket
Upper Hinge Bracket
Lower Hinge Bracket
Thrust Washer
Cabinet
