2. Half Solid Door Reversal
Note: Hinge brackets, and spring cartridge are universal and can be used in both left and
right-hinged applications.
Example shows change from right hinged to left hinged.
1) Lock the casters.

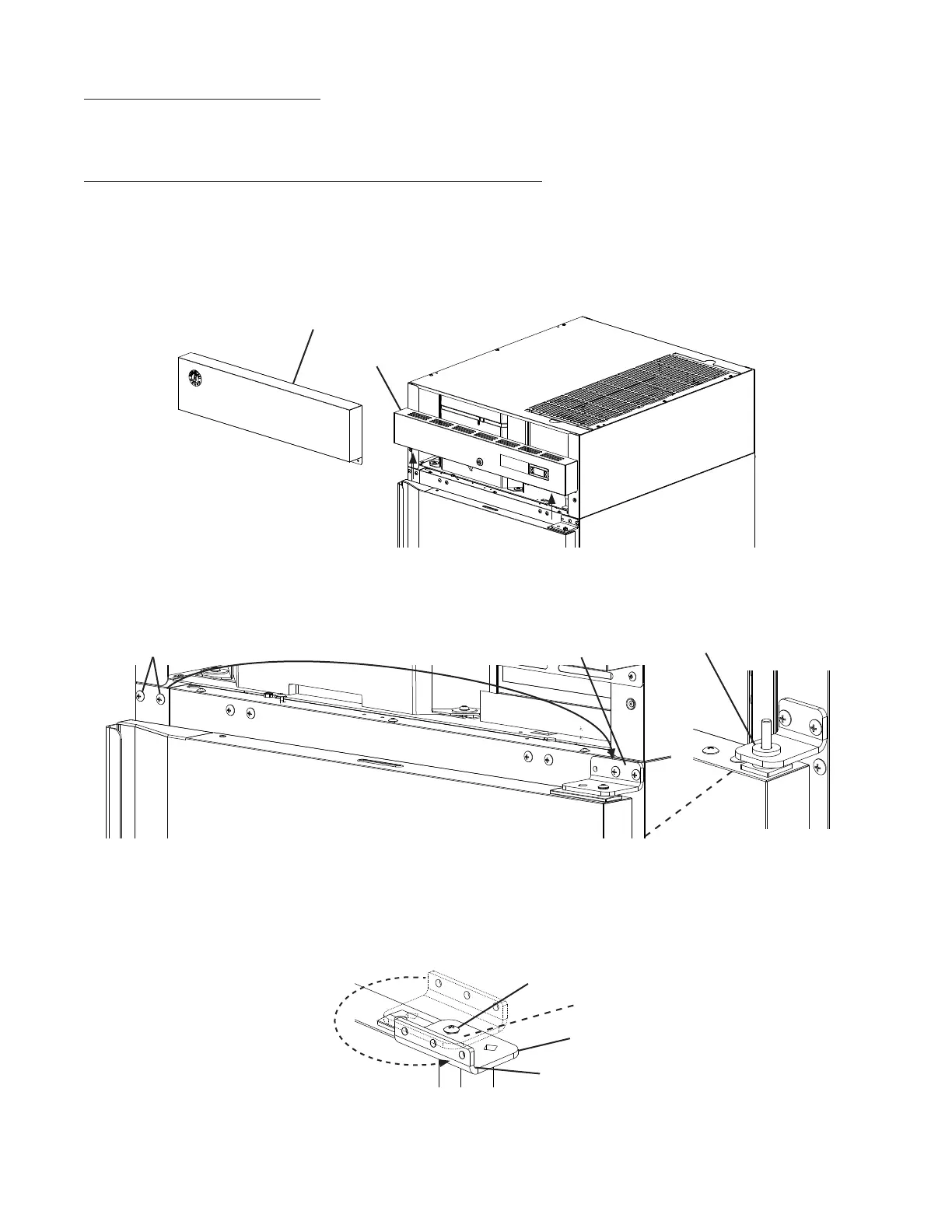

2) Remove the front panel, then being careful not to pull the wires on the control module
and door switch(es), remove the control panel. Secure the control panel so that it does
not interfere with the hinge bracket and will not fall. See Fig. 26.
Upper Hinge Bracket
Fig. 28
4) Rotate the upper hinge bracket 180 degrees counter clockwise. See Fig. 28.
Next, remove the spring cartridge screw and washer, then remove the upper hinge
bracket and thrust washers (2). Set the door aside. Retain the upper hinge bracket
thrust washers for opposite side hinge bracket installation.
Fig. 26
Front Panel
Control Panel
Filler Screws Upper Hinge Bracket
3) While maintaining a hold on the upper door, remove the upper hinge bracket then lift
the door off the center hinge bracket. See Fig. 27. Retain the upper center hinge bracket
thrust-washer for opposite side hinge bracket installation.
Center Hinge Bracket
Upper Thrust Washer
Fig. 27
Thrust Washers (2)
Rotate 180 degrees CCW
Spring Cartridge Screw and Washer
