4
2A8351-010
11) Plug the 8 ft. (2.4 m) heated overow drain pan power cord into the heated overow drain pan connector then place the 8 ft. (2.4 m)
heated overow drain pan power cord in the 4 wire clamps supplied with this kit. Using the self-drilling hex screws provided, measure
and secure the 4 wire clamps at the locations shown below. See Fig. 8.

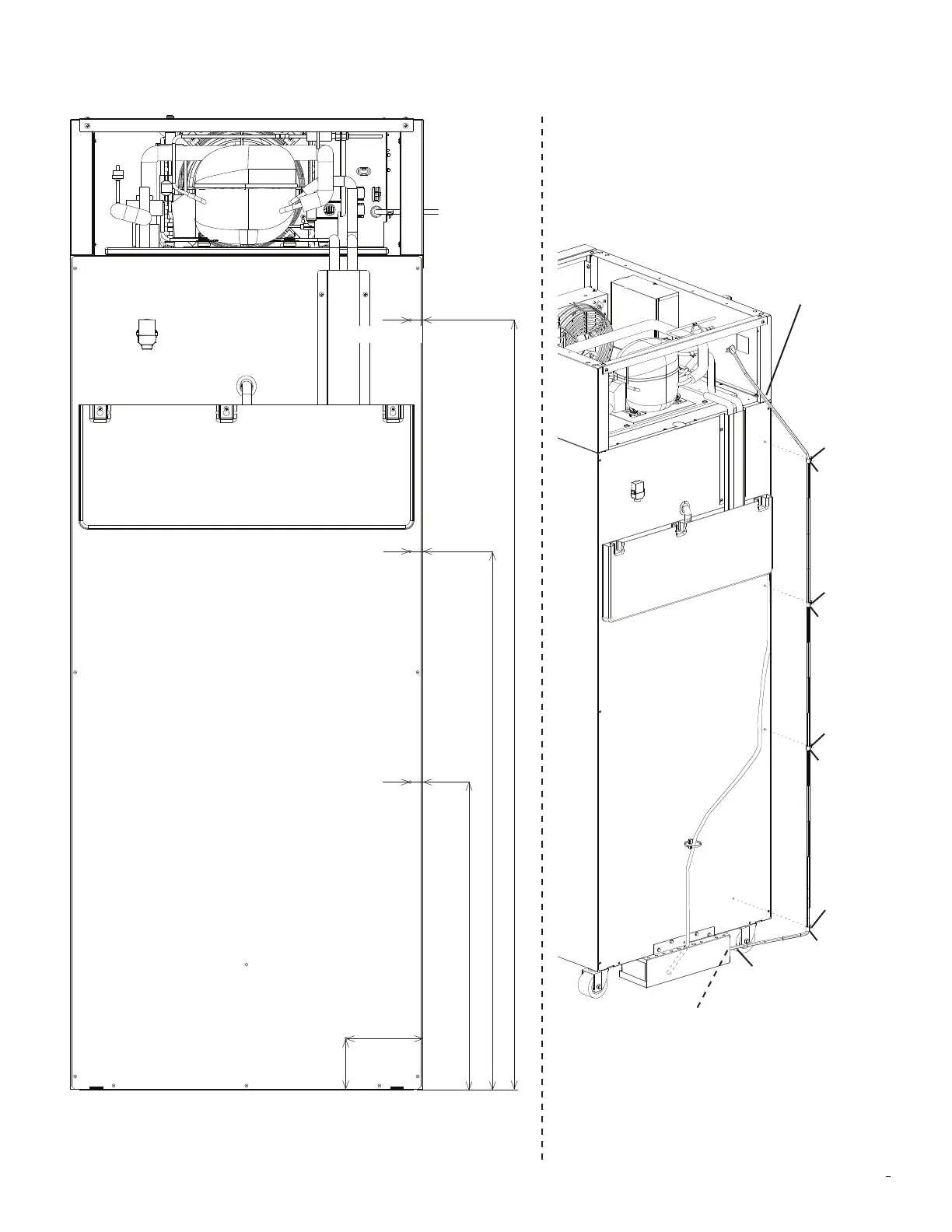

Fig. 8
5 ft.
(1.5 m)
6 in. (152 mm)
4 in. (102 mm)
1 in. (25 mm)
A
B
C
D
42 in.
(609 mm)
3.5 ft.
(1066 mm)
1 in. (25 mm)
1 in. (25 mm)
A
B
C
D
Wire Clamp
Wire Clamp
Wire Clamp
Wire Clamp
Heated Overow Drain
Pan Power Cord
Self-Drilling
Screw
Self-Drilling
Screw
Self-Drilling
Screw
Self-Drilling
Screw
Heated Overow Drain Pan
Power Cord Connector
Heated Overow Drain
Pan Power Cord
Model Shown: CR1S-FS
Model Shown: CF1S-FS
