7
Alternate wiring (for conventional systems)
WIRING NOTES:
1. If you must connect both R and Rc wires, set the R Slider Tab to the down
position (2 wires).
2. If your old thermostat had both R and RH wires, set the R Slider Tab to the
down position (2 wires). Then connect the R wire to the Rc terminal, and the
RH wire to the R terminal.
3. If your old thermostat had only 1 C or C1 wire, connect it to the C terminal. If
your old thermostat had 2 C or C1 wires, wrap each separately with electrical
tape and do not connect them.
4. C does not power the thermostat display or operations; batteries are always required.

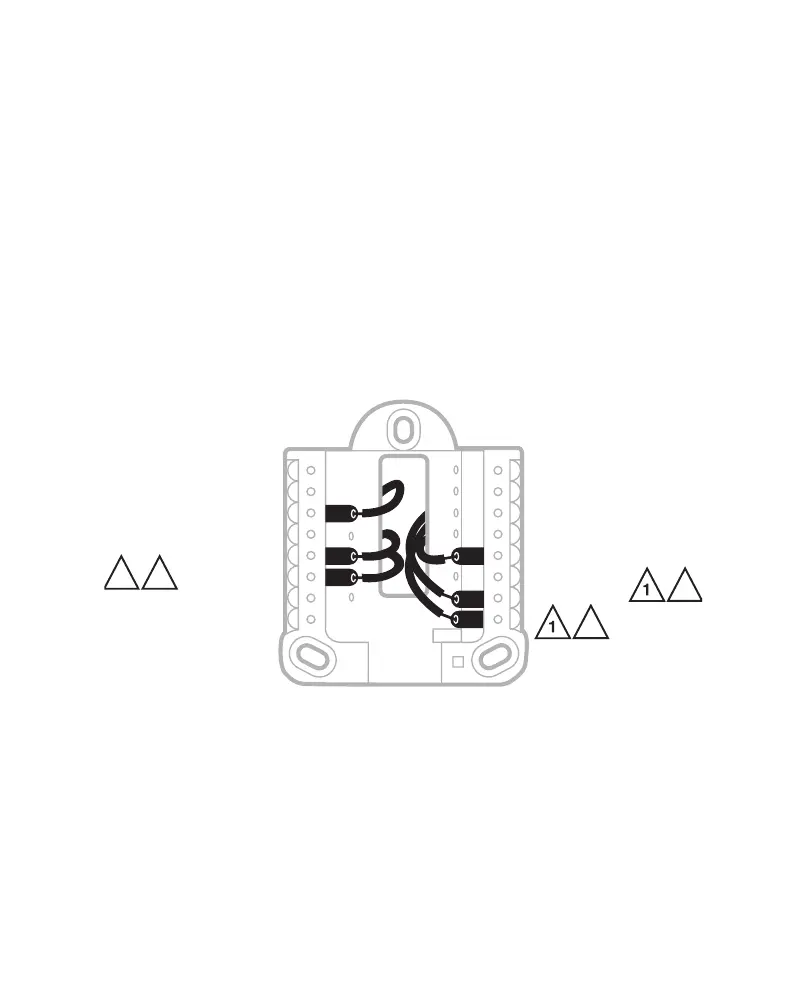

Wiring
Conventional Systems
If labels do not match terminals, connect wires as shown below.
AUX
M39606
G
C
Y
A
Rc
W
K
2
R
L/A
O/B
E
4
2
or Y1 or M
or F
or C1 or X or B
or W1 or H
or RH or 4 or V
3
S
S
U
U
2
W2
Y
2
