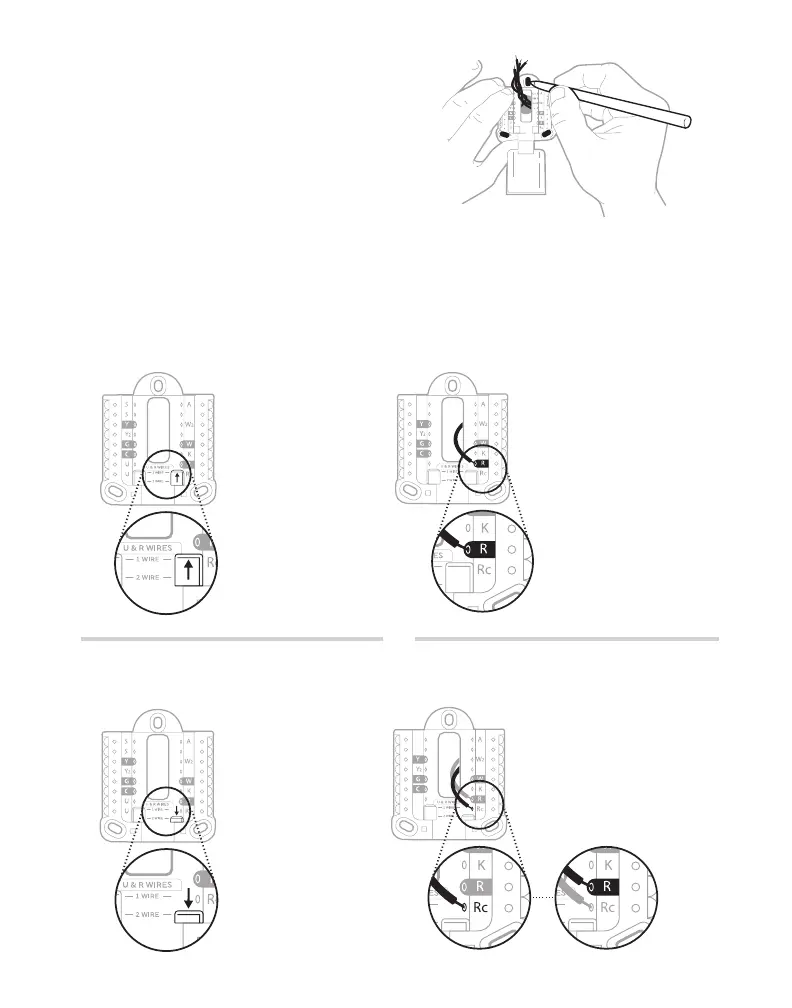

If you have 1 R-wire (R,Rh, or Rc)

1. Set R-switch

to the up

position.

2. Insert your

R-wire (R, Rh

or Rc) into

R-terminal.

M37226

M37228A

If you have 2 R-wires (R or Rh, and Rc)

or

1. Set R-switch

to the down

position.

2. Insert your Rc wire

into Rc-terminal

3. Insert your R

or Rh wire into

RTerminal.

M37227

M37229A

Insert wires into the inner holes of the terminals on the UWP. The tabs will

stay down once the wire is inserted.

Various wiring options are shown on the following pages

3 Set R-switch position and insert

R-wire or wires.

Set the R-switch up or down

based on your wiring notes in

Step 7 in Removing the old

thermostat.

M37225
