ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 22
SK90_230V

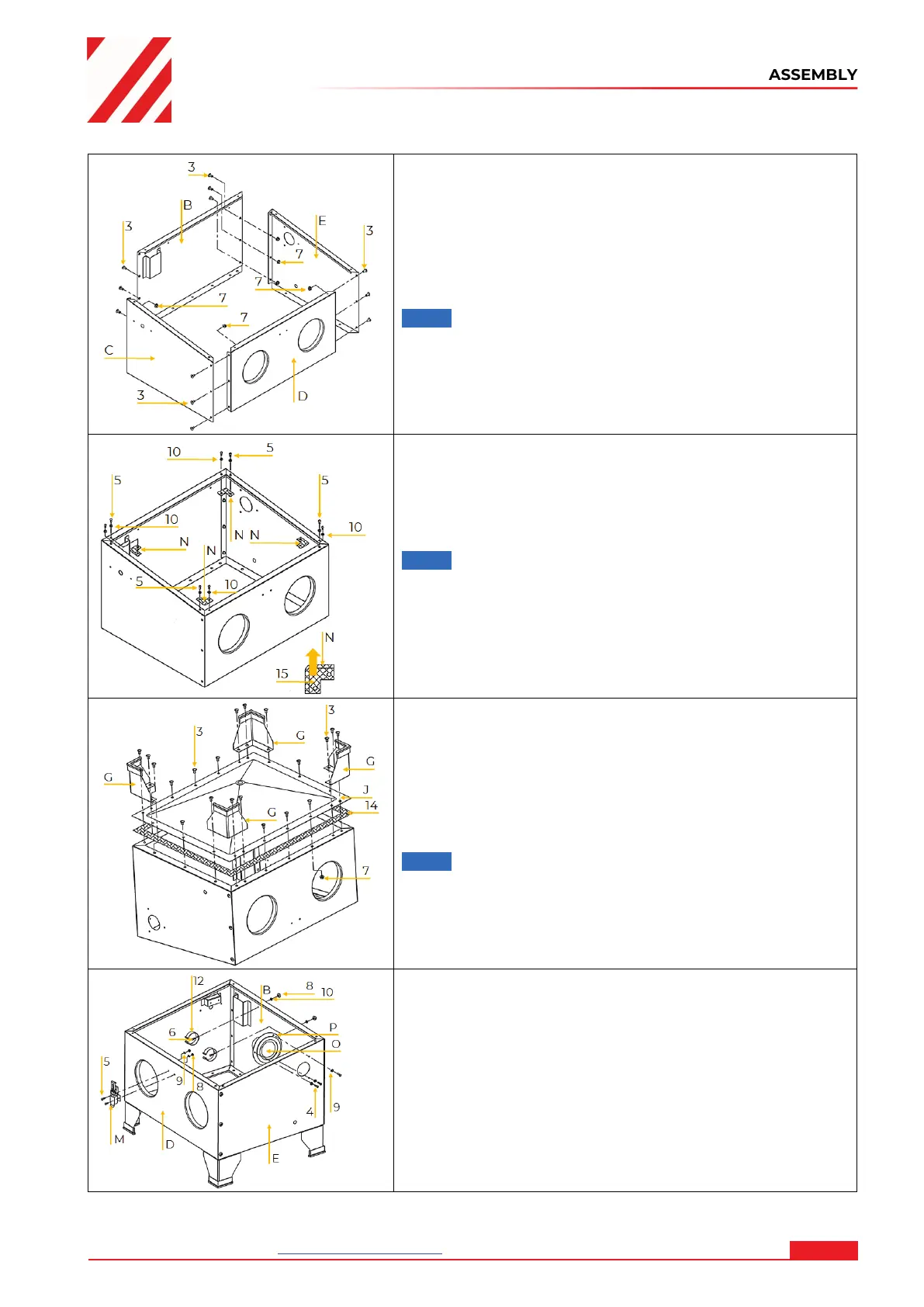

2. Assemble the cabinet:
• Place the back plate (B), front plate (D), left plate (C)
and right plate (E) as shown and fix it with screws (3)
and nuts (7)
• Firstly only install 3 screws in the bottom of the back
plate (B)!
• Do not tighten the screws completely
NOTE: Seal all corners with exceeded sealing!
3. Assemble connection piece:
• Fix the connection pieces (N) on the inside corners of
the cabinet as shown and fix it with screws (5) and
washers (10)
• Tighten all screws
NOTE: Sealing of the connection piece (N) must be
upwards put in the cabinet!
4. Assemble funnel and foot
• Stick sealing (14) on the bottom of the cabinet as
shokwn
• Put the funnel (J) on the cabinet, then put the four
feet (G) on the funnel as shown and fix it with screws
(3) and nuts (7)
NOTE: Ensure to place feet (G) in right position
(mounting holes!)
5. Assemble air filter, cover lock and lamp clamp:
• Fix the tabletting (P) and air filter (O) to the exhaust
air outlet on the right plate (E) as shown using screws
(4), washers (9) and nuts (8)
• Fix the cover lock (M) on the front plate (D) as shown
using screws (5), washers (9) and nuts (8)
• Fix lamp clamps (12) on the back plate (B) as shown
using screws (6), spring washers (10) and nuts (8)
