ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 25
EISA160MINI

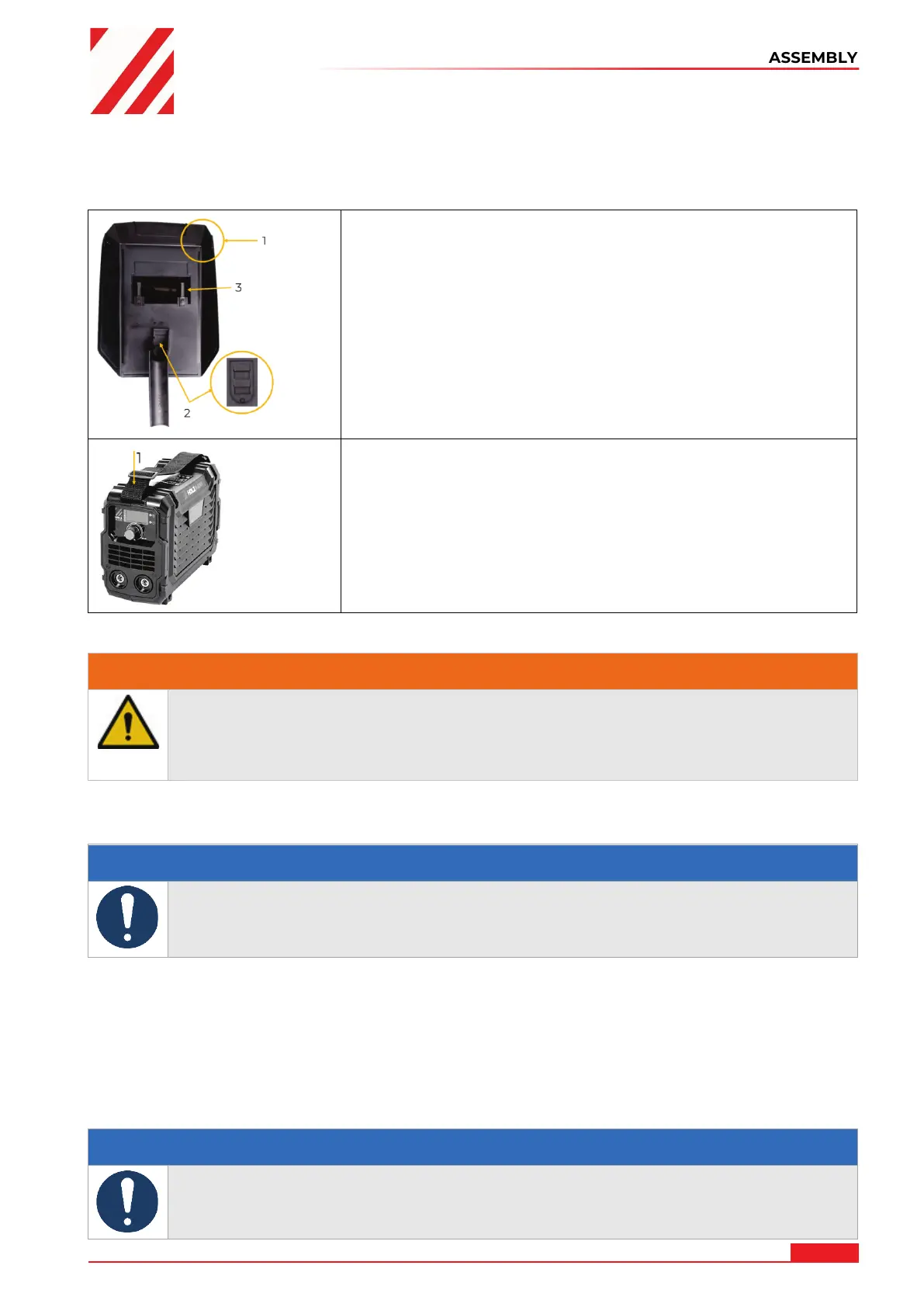

14.1.3 Assembling
The machine is pre-assembled, the parts removed for transport must be assembled (instructions
at the respective welding type) and the connection to the power supply have to be made.
Welding screen:
• Fold the side parts together and snap the rivets into place (1).
• Push the handle into the cutouts and snap both connectors
into place (2)
• Insert welding glass (3)
• Fix the welding glass with inlet (4)
Carrying strap:
• Thread in the carrying strap (1) as shown and set the desired
length
14.2 Electrical connection
WARNING
Dangerous electrical voltage!
The machine may only be connected to the power supply and the associated
checks carried out by a qualified electrician or under the instruction and
supervision of a qualified electrician!
1. Check that the neutral connection and protective earthing are functioning properly
2. Check that the supply voltage and current frequency correspond to the specifications of
the machine
NOTE
Deviation of the supply voltage and current frequency
A deviation from the value of the supply voltage of ± 5% is permissible.
A short-circuit fuse must be provided in the power supply system of the machine!
3. Use a supply cable that fulfils the electrical requirements (e.g. H07RN, H05RN) and take the
required cross-section of the supply cable from a current carrying capacity table. Pay
attention to the measures for protection against mechanical damage.
4. Make sure that the power source is protected by a residual current circuit breaker.
5. Connect the unit only to a properly grounded outlet.
6. When using an extension cable, make sure that it is dimensioned appropriately for the
connected load of the machine (the connected load can be found in the technical data).
You can find the correlation between cable cross-section and cable length in specialist
literature or consult an electrician.
NOTE
- Operation is only permitted with residual current device (RCD) with maximum
residual current of 30 mA. Mains fuse 16 A (C)
