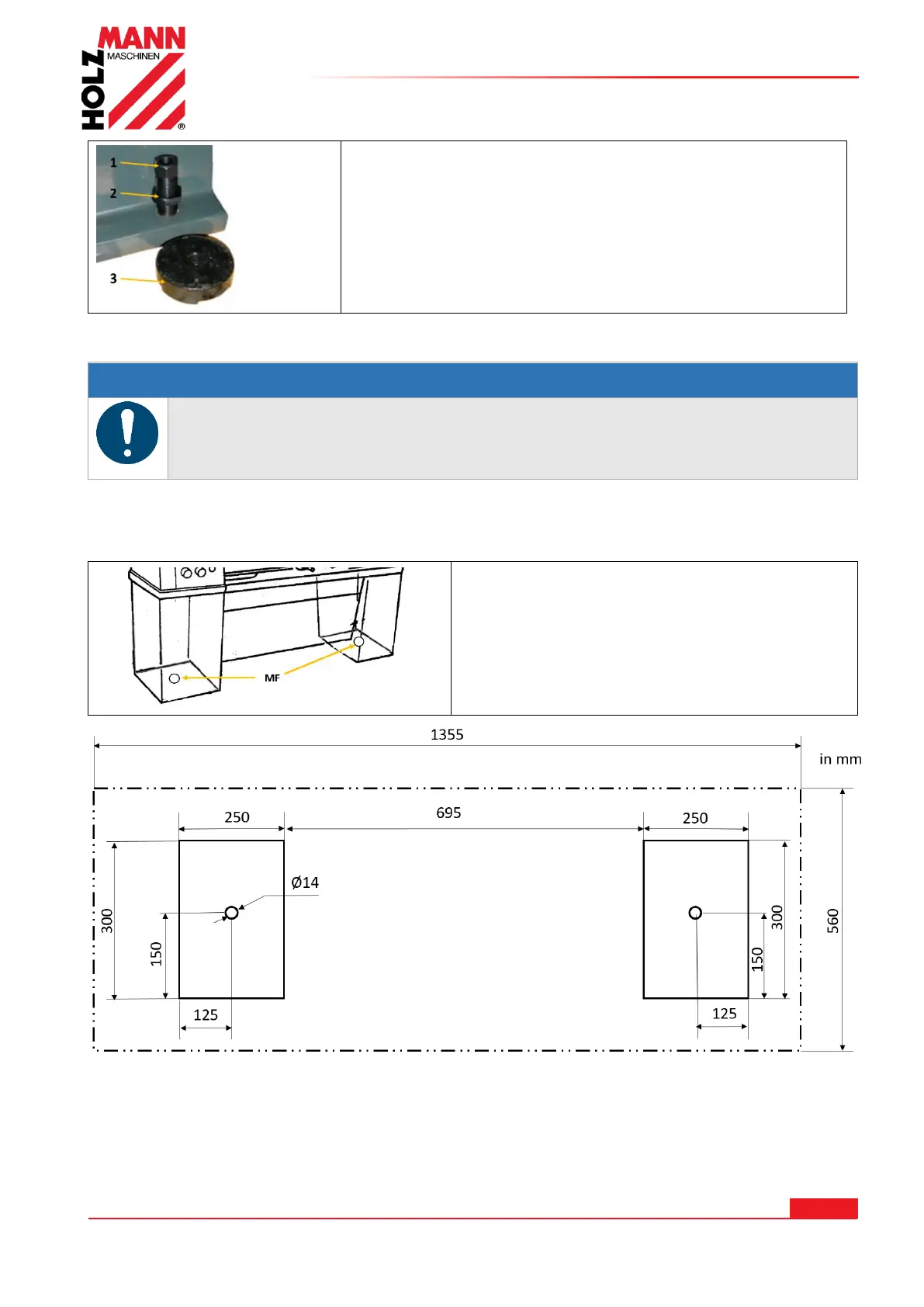

ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 44
ED750FDQ
1. Place the adjusting disks (3) under the machine base.
2. Mount the adjusting screws (1).
3. Align the lathe with a precision balance (accuracy: 0.02
mm over 1000 mm length).
4. After levelling, secure the set screws with lock nuts (2) to
prevent them from turning.
5. Check the alignment after a few days of use of the
machine and, if necessary, adjust it according to the
following instructions
17.1.5 Anchored assembly
NOTICE
Insufficient rigidity of the substrate leads to the superposition of vibrations between
the machine and the substrate (natural frequency of components). If the stiffness of
the overall system is insufficient, critical speeds are reached quickly, which leads to
poor turning results.
Use the anchored assembly to achieve a rigid connection with the ground. This reduces the
vibration potential. The anchored assembly is always useful when turning knives or turning tools
with HM alloy are to be used and/or large parts up to the maximum capacity of the machine are
to be machined.
1. Place the machine on the anchor bolts
(MF) adjusting disks (3).
2. Then align the machine and tighten the
screws (1).
3. Check the alignment of the machine again
after having tightened the counter nuts
(2).
4. Repeat levelling procedure if necessary.
