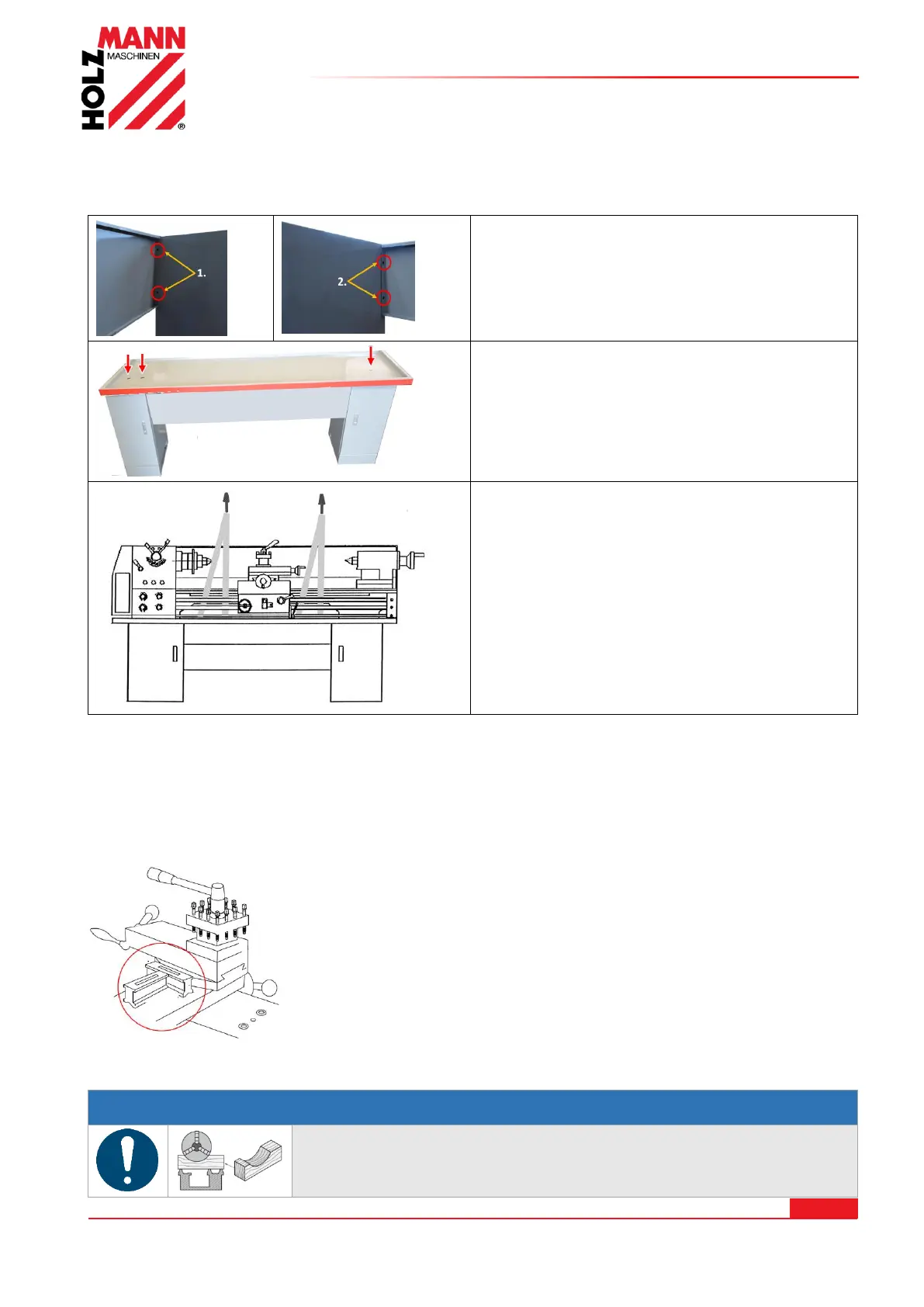

ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 45
ED750FDQ
17.1.6 Assembling
The machine is pre-assembled, the parts removed for transport must be assembled according to
the following instructions and the connection to mains have to be made.
Connection plates
1. Fix the front connecting plate with 4
screws, nuts and washers.
2. Fix the back connecting plate with 4
screws, nuts and washers.
Machine stand
Place the chip tray on the machine stand so
that the holes of the chip tray correspond with
the threaded holes.
Mounting the machine:
Place the machine on the machine stand so
that the mounting holes and holes of the chip
tray correspond with the threaded holes and
fasten them with screws and spacers.
17.2 Machine settings
17.2.1 Aligning / leveling the lathe
After installation and commissioning, it is recommended to check the alignment and levelling of
the machine before using it for the first time. In order to ensure working accuracy, the alignment
and levelling should be repeated at regular intervals.
To level the machine, use a precision spirit level (according to DIN 877)
with an accuracy of 0.02 mm to 1000 mm. This allows the horizontal
position of the machine axis to be checked with sufficient accuracy in
both the longitudinal and transverse directions.
For anchored installation: Do not tighten the anchor bolt nuts carefully
and evenly until three to four days after the cement has cured.
Repeat the horizontal check a few days after initial start-up and every
six months thereafter.
17.2.2 Checking the fit of the jaw chuck
NOTICE
Do not use cast iron chucks. Use ductile iron chucks only. Before
disassembling the jaw chuck, place a stable board or chuck cradle
under the spindle to protect the precision-ground surfaces.
