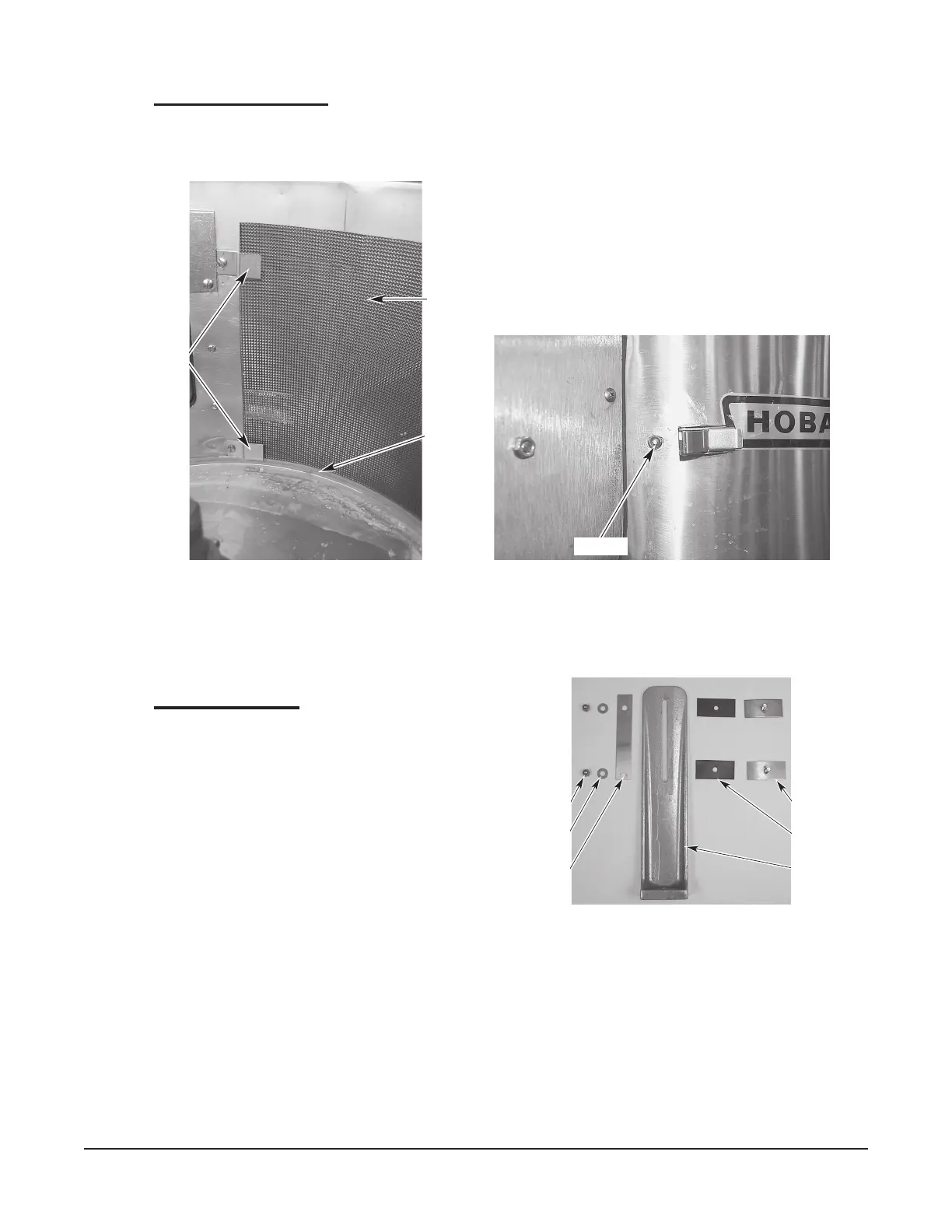

– 13 –
6.8 LEXAN LINER
Slide the liner (Fig. 4) into the hopper. Ensure the liner is under the retaining brackets (Fig. 4)
and resting on the top of the lip (Fig. 4) on the bottom of the hopper chamber.
LIP
LINER
RETAINING
BRACKETS
KEEPER
(Fig. 4) (Fig. 5)
Push the liner keeper into the hole (Fig. 5) provided.
Secure the keeper using the exterior latch.
6.9 PEEL TRAP
If a peel trap is to be used, unpack the trap from its
shipping carton. Remove the legs and cloth bag from
inside the peel trap. The cloth bag contains hardware
for attaching the legs.
LEGS
It will be necessary to remove the peel trap drawer
(Fig. 1) to allow enough room for attaching the legs.
Assemble the legs as follows (Fig. 6):
Lay the peel trap on its side. Assemble one of the rubber gaskets to one of the curved leg clamp
bolts. Assemble the bolt and gasket from the inside, through one of the leg bolt holes in the
peeler housing. Assemble a leg and a leg slot cover on the leg clamp bolt. Place a stainless steel
washer and acorn nut onto the clamp bolt and partially tightened, set unit upright. Each leg has
an upper and lower leg clamp bolt assembly. When all are assembled and partially tightened,
set unit upright. Adjust each leg to a suitable height such that the unit is level, and tighten the
acorn nuts.
ACORN NUT
WASHER
SLOT COVER
LEG
RUBBER GASKET
CLAMP BOLT
Fig. 6
