– 12 –
MODEL 6430 PEELER
(WITHOUT TRAP)
NOTE:
NET WEIGHT OF PEELER
DOMESTIC SHIPPING WEIGHT OF PEELER
PLUMBING CONNECTIONS MUST COMPLY WITH
APPLICABLE SANITARY, SAFETY AND PLUMBING
CODES IN FORCE.
WARNING
- 140 Lbs (63.6 Kg)
- 147 Lbs (66.7 Kg)
P1 - WATER CONNECTION: ST’D 1/2” FEMALE PIPE THREAD
P2 - DRAIN HOSE: 2-3/8” I.D. x 2-3/4” O.D.
5-11/32”
(13.6 cm)
4-3/4”
(12.1 cm)
DISCHARGE
CHUTE
15”
(38.1 cm)
15-3/4”
(40.0 cm)
27-1/2”
(69.9 cm)
21” DIA
(53.3 cm)
REMOVE PLAT E
TO ADJUST
BELT TENSION
35-13/16”
(91.0 cm)
11-7/8”
(30.2 cm)
1-3/4”
(4.4 cm)
APPROX.
1-3/4”
(4.4 cm)
5” (12.7 cm)
7-5/16” (18.6 cm)
7-5/16” (18.6 cm)
21-1/4” (54.0 cm)
27-1/4”
(69.2 cm)
11-1/4” (28.6 cm)
5/8”
(1.6 cm)
8-5/16” (21.1 cm)
DIA. OPENING
19-1/4”
(48.9 cm)
LEGEND
P1
P2

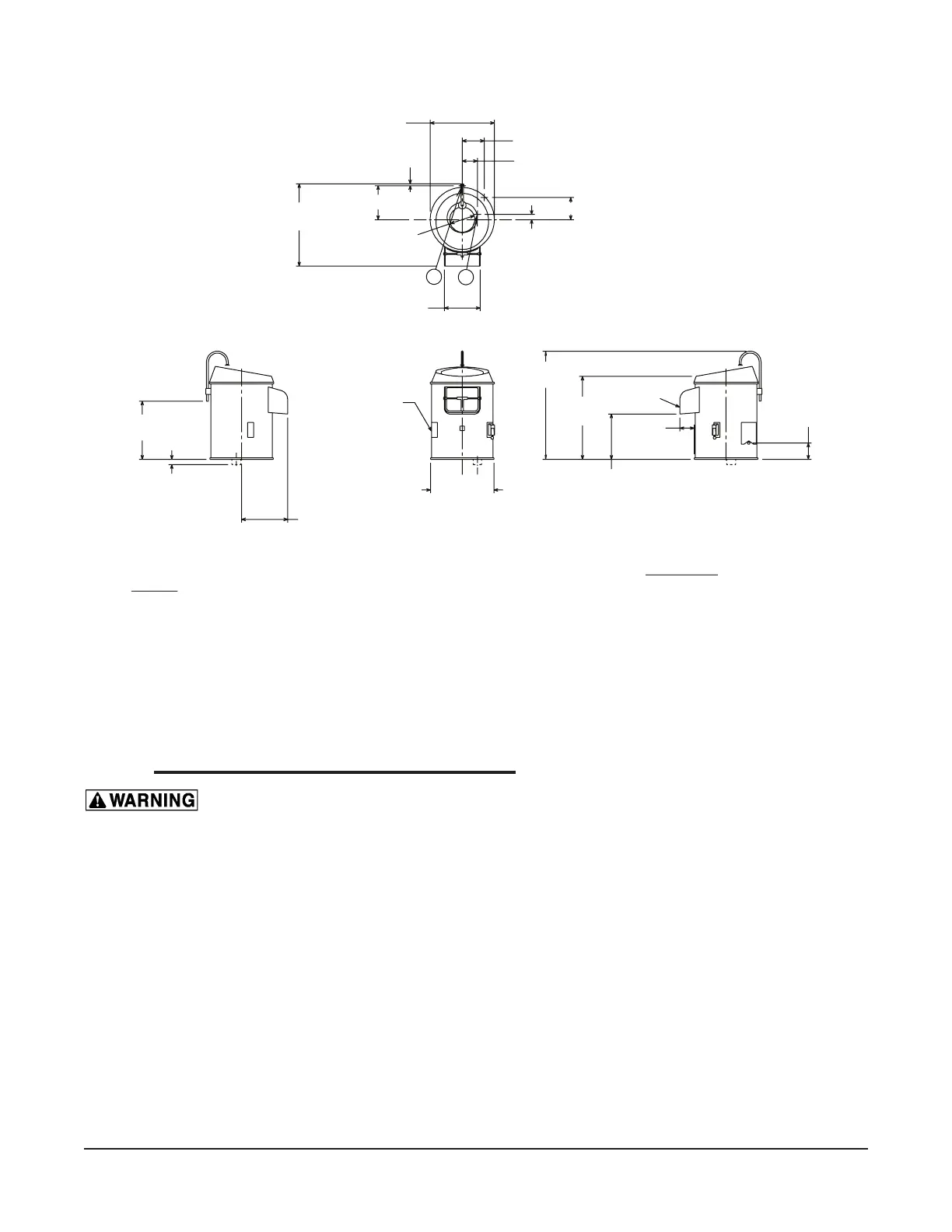

Installation Diagram (Without Trap)
6.7 ELECTRICAL INSTALLATION
The electrical installation of the peeler must conform to the local electricity board
regulations. When installed in the United Kingdom the installation must be in accordance with the
current edition of the IEE Regulations for electrical equipment in buildings and must conform to
the requirements of the Electricity at work act.
A competent person must carry out the electrical installation.
The technical data shown in Table 1, page 9 details the electrical requirements for the peeler. Ensure
that the electrical power supply agrees with the machine specication prior to connection.
The single-phase peeler is equipped with a three-wire power supply cord and the three-phase
peeler is equipped with a four-wire power supply cord ready for installation of an appropriate
grounding-type attachment plug. The plug and its mating receptacle must be properly grounded.
Contact an electrician. Provide proper fuse or circuit breaker protection.
