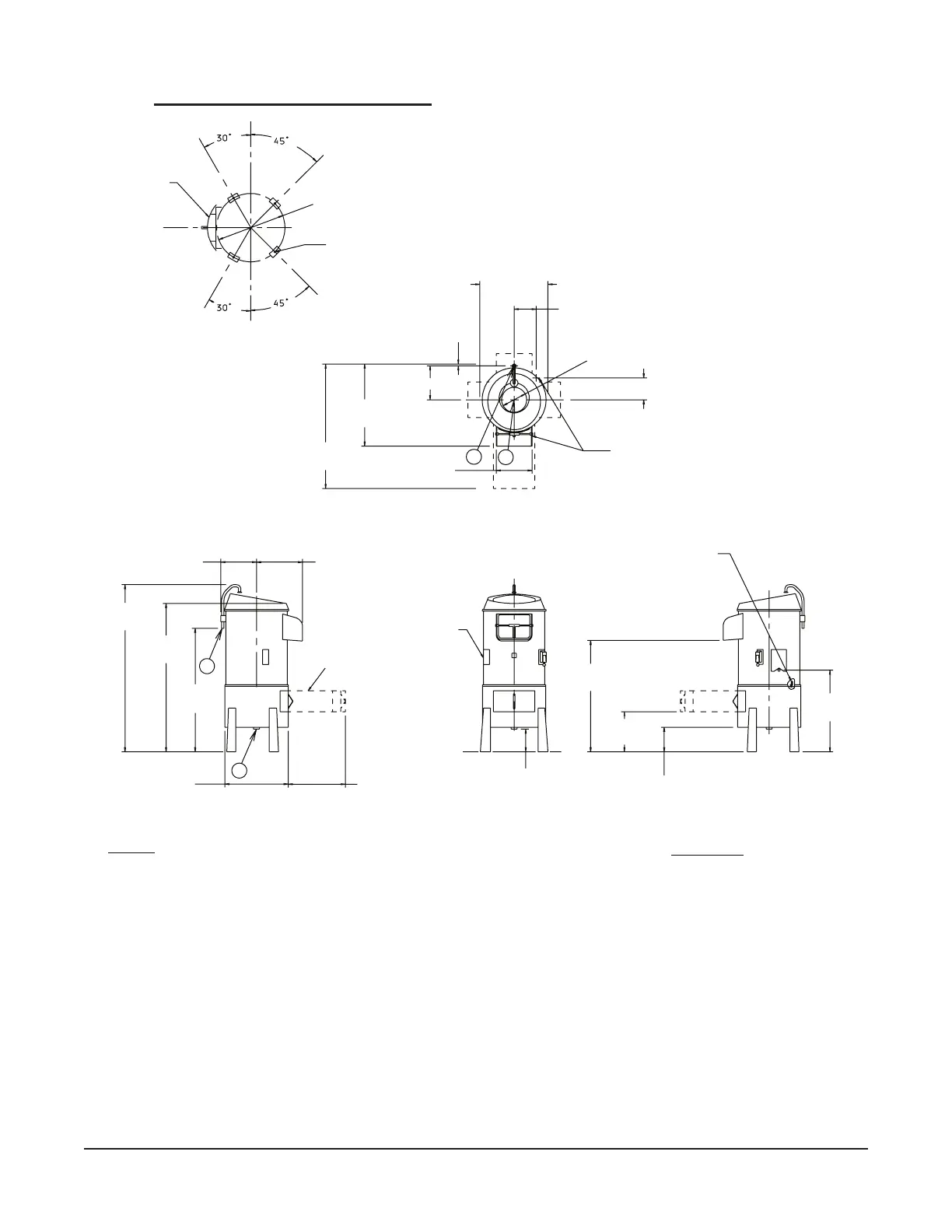

6.6.1 PEELER DIMENSIONS
MODEL 6430 PEELER
(WITH PEEL TRAP)
NOTES:
ALL DIMENSIONS TAKEN FROM FLOOR LINE MAY BE
INCREASED AS MUCH AS 13/16” (2.1 cm) BY LEG ADJUSTMENT.
APPROXIMATE SHIPPING WEIGHT OF PEELER AND
PEEL TRAP UNIT: 201 Lbs (91.2 Kg)
APPROXIMATE SHIPPING WEIGHT OF PEELER LESS
PEEL TRAP UNIT: 147 Lbs (66.7 Kg)
NET WEIGHT OF PEELER AND PEEL TRAP UNIT: 190 Lbs (86.2 Kg)
PLUMBING CONNECTIONS MUST COMPLY WITH
APPLICABLE SANITARY, SAFETY AND PLUMBING
CODES IN FORCE.
WARNING
P1 - WATER CONNECTION: ST’D 1/2” FEMALE PIPE THREAD
P2 - DRAIN CONNECTION: ST’D 2” MALE PIPE THREAD
11-7/8”
(30.2 cm)
55-1/2”
(141.0 cm)
49-1/4”
(125.1 cm)
41”
(104.1 cm)
P2
P2P1
P1
11-7/8”
(30.2 cm)
27-3/32”
(68.8 cm)
8-1/8” (20.6 cm)
13-1/4”
(33.7 cm)
37”
(94.0 cm)
7-1/2”
(19.1 cm)
PEELER IS SECURED TO PEEL
TRAP AS SHOWN, BY FOUR
SCREWS, LOCATED RADIALLY
FROM CENTER LINE. ASSEMBLY
CAN BE MADE SO THAT PEELER
WILL DISCHARGE IN ANY ONE
OF THE FOUR POSITIONS AS
SHOWN IN TOP VIEW.
WATER & ELECTRIC CONNECTIONS
REMAIN IN SAME RELATION TO
DISCHARGE CHUTE WHEN PEELER
IS TURNED TO ANOTHER DISCHARGE
POSITION.
PLAN VIEW OF PEEL TRAP
SHOWING HOLES IN LEGS FOR
BOLTING TO FLOOR WHEN REQUIRED.
19” (48.3 cm)
SPACE REQ’D FOR
REMOVAL OF PEEL
TRAP STRAINER
27-1/4”
(69.2 cm)
41-3/8”
(105.1 cm)
11-1/4” (28.6 cm)
22-11/16”
(57.6 cm)
5/8”
(1.6 cm)
LEGEND
7-5/16” (18.6 cm)
7-5/16” (18.6 cm)
22-13/16” (57.9 cm)
1/2” (1.3 cm) DIA
4 HOLES SPACED
AS SHOWN
PEEL TRAP
STRAINER
8-5/16” (21.1 cm)
DIA. OPENING
REMOVE PLATE
TO ADJUST
BELT TENSION
PEEL
TRAP
STRAINER
15-3/4”
(40.0 cm)
21” DIA
(53.3 cm)
Installation Diagram (With Trap)
