8
Tip:

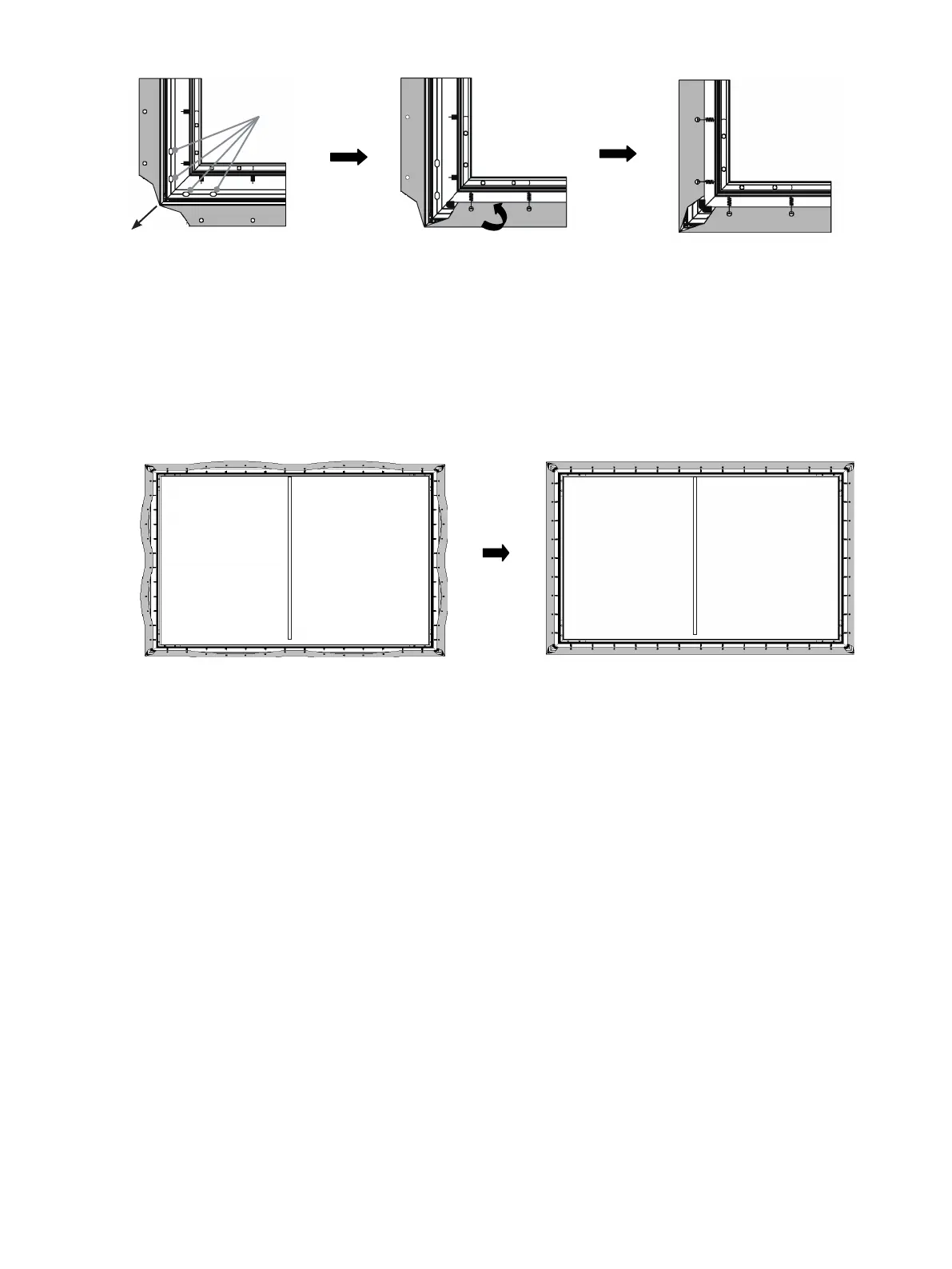

The screen material is in the best position when the outer edge just covers
M4x6 Screws (E)
labeled above.
2)
After you’ve installed the corner of the material, assemble the spring in the order
shown below.
3) When finishing the steps above, make the screen to stand up and check if the screen material is stretched out of the frame.
If it is, then release the spring and readjust the screen material to make sure it is not be stretched out of the frame and the
four sides are parallel
to the four sides of the frame.
Stretch the screen material in the
direction of the arrowhead.
Use the
Spring Hook (K)
to attach
springs to holes located on both
horizontal and vertical outer edge of
the screen material.
Repeat until all of the springs are
installed.
M4x6 Screws (E)
