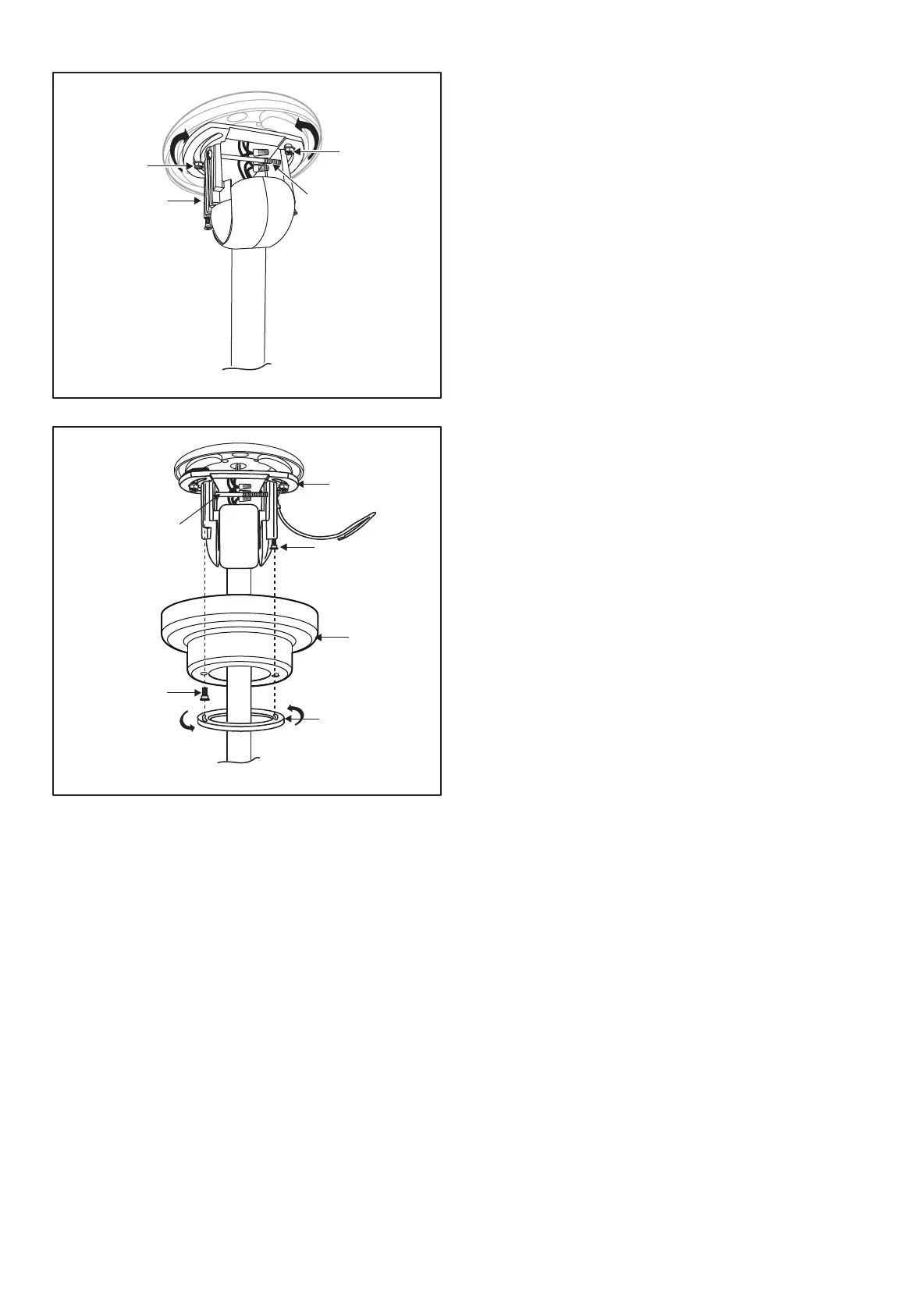

Fig. 14

Fig. 15

1. Now, rotate the "entire fan and slope adaptor

assembly" (left or right) by rotating the hanger

bracket until the downrod and the ceiling fan

assembly are hanging straight down and the entire

assembly "swings" freely in the exact direction of the

ceiling slope. (Fig. 14)

2. Now, Securely tighten the two (2) Hex Nuts

holding the hanger bracket to the mounting plate.

Making sure the Hanger Bracket is secure and can

not move. Next, securely tighten the 3/16" x

65mm Safety Pin. (Fig. 14)

3. Make all necessary electrical connections by

referring to your ceiling fan installation manual.

Next, tuck all lead wires neatly into the opening

above the hanger ball.

4. Slide the canopy up to the ceiling and place the

mounting screws through the key holes in the face of

the canopy. Rotate canopy clockwise. (Fig. 15)

Next, while holding the canopy with one hand, slide

the mounting screw cover onto the heads of the

mounting screws and rotate clockwise until tight.

If necessary, adjust the canopy screws until the

canopy and mounting screw cover are snug.

FINISHING THE INSTALLATION

Hanger

bracket

3/16" x 65mm

Safety Pin

Canopy

Canopy cover

Screws

Screws

Hanger

bracket

Hex nuts

Hex nuts
