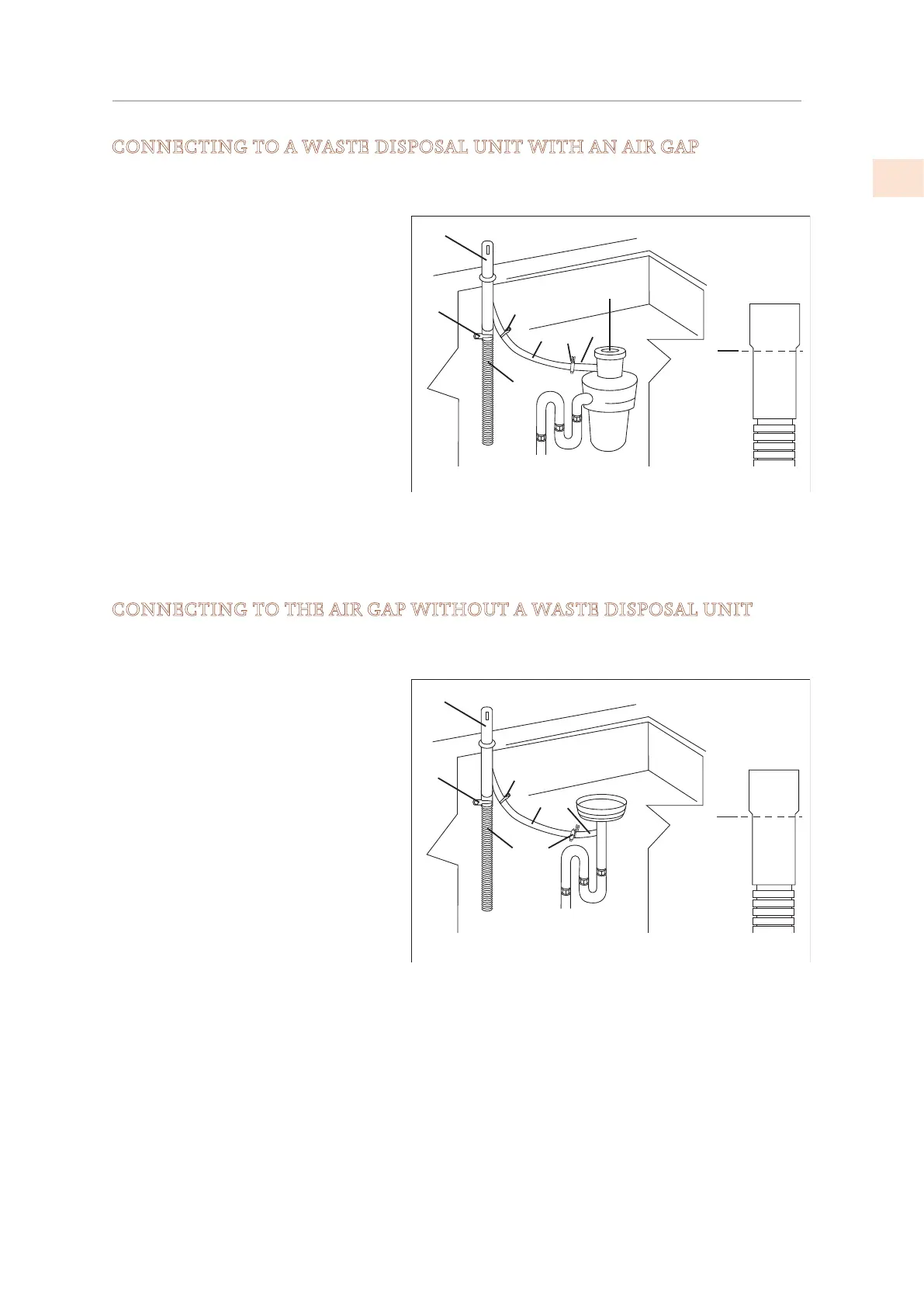

CONNECTING TO A WASTE DISPOSAL UNIT WITH AN AIR GAP
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED.
1. Remove the cover of the waste
disposal unit (A).
2. Connect the dishwasher drain hose
(B) to the air gap (C) using the wide
spring clamp (D)
3. If necessary, cut the end of the
dishwasher drain hose (E) (do not
cut the corrugated section).
- If the drain hose has been cut, use
a 1-1/2 to 2” [3.8 to 5 cm] screw
clamp*.
4. To connect the air gap (C) to the
waste disposal unit inlet (F) use a
rubber hose* (G) with spring or screw clamps (H)*
* Available from a plumbing store or home center.
CONNECTING TO THE AIR GAP WITHOUT A WASTE DISPOSAL UNIT
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED
1. Connect the dishwasher drain hose
(B) to the air gap (C) using the wide
spring clamp (D)
2. If necessary, cut the end of the
dishwasher drain hose (E) (do not
cut the corrugated section).
- If the drain hose has been cut, use
a 1-1/2 to 2” [3.8 to 5 cm] screw
clamp*.
3. To connect the air gap (C) to the
waste disposal unit inlet (F) use
a rubber hose* (G) with spring or
screw clamps (H)*
Available from a plumbing store or home center.
C
D
B
G
H
H
F
A
E
B
C
F
G
H
H
D
E
INSTALLATION
(CONT.)
2019 Hestan Commercial Corporation
11
EN
