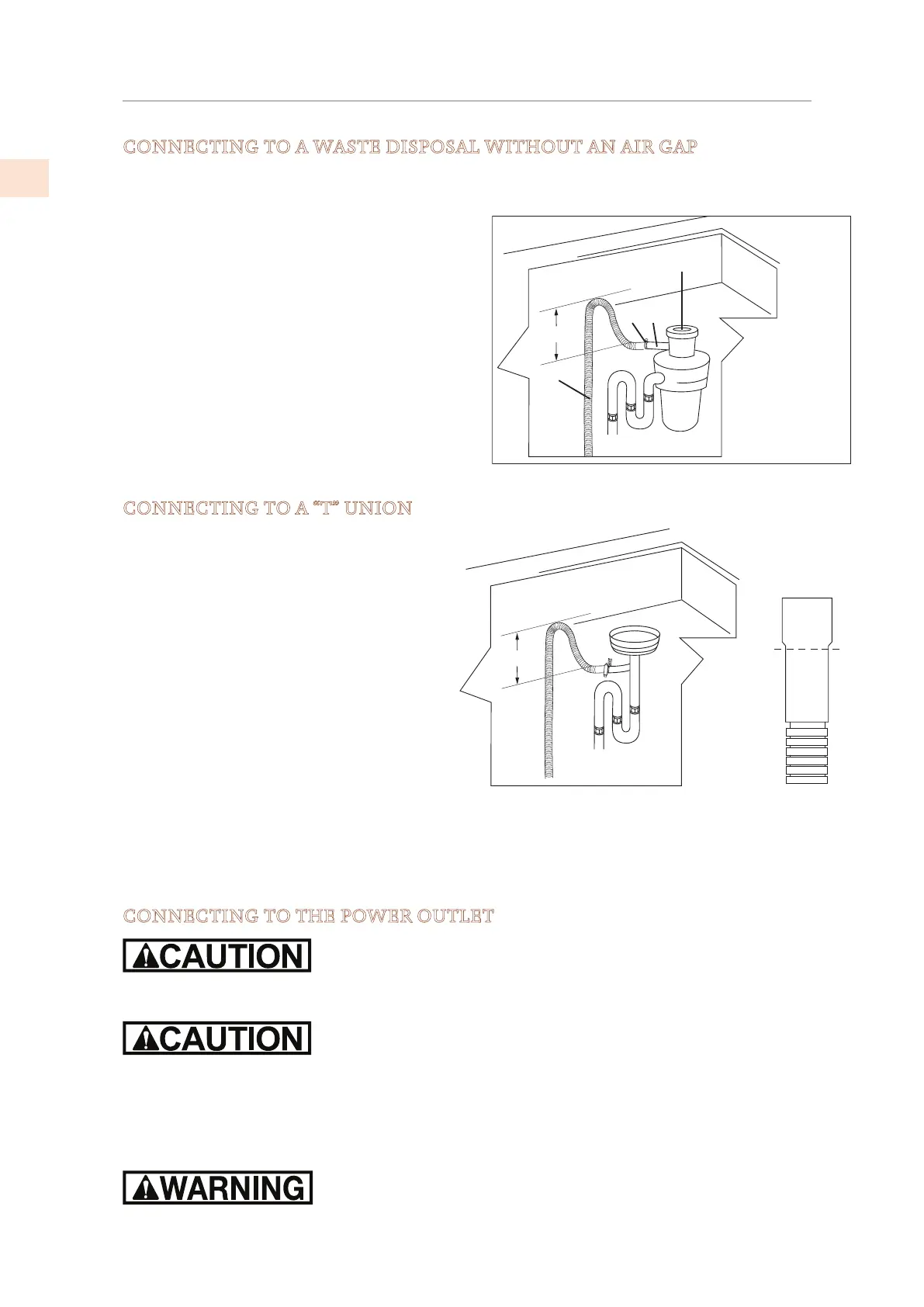

CONNECTING TO A WASTE DISPOSAL WITHOUT AN AIR GAP
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR ON WHICH THE DISHWASHER WILL BE
INSTALLED
1. Remove the cover of the waste disposal unit
(A).
2. Connect the dishwasher drain hose (B) to the
waste disposal unit inlet (C), using the wide
spring clamp (D)*.
3. Arrange the hose to form a high loop (E) as
shown in the illustration. This is required to
prevent backflow of contaminated water into
the dishwasher.
* Available from a plumbing store or home center.
.
CONNECTING TO A “T” UNION
MAKE THE CONNECTION UPLINE FROM
THE SIPHON OF THE DRAIN LINE AND AT
LEAST 15-3/4” [40 cm] ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE
INSTALLED.
1. Connect the dishwasher drain hose to
the “T” union of the drain using a 1-1/2
to 2” [3.8 to 5 cm] screw clamp.*
2. Arrange the hose to form a high loop
(A) as shown in the illustration. This
is required to prevent backflow of
contaminated water into the dishwasher.
3. If necessary, cut the end of the
dishwasher drain hose (DO NOT cut the
corrugated section).
* Available from a plumbing store or home center.
CONNECTING TO THE POWER OUTLET
CHECK THAT VOLTAGE AND FREQUENCY OF THE OUTLET
MATCHES THE RATINGS ON THE RATING PLATE OF THE
APPLIANCE, WHICH IS POSITIONED ON THE INNER EDGE OF
THE DOOR.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT
REPLACED BY THE MANUFACTURER OR AN AUTHORIZED
TECHNICIAN. THIS APPLIANCE MUST BE GROUNDED. IN CASE
OF A MALFUNCTION, THE GROUND REDUCES THE RISK OF
ELECTROCUTION BY PROVIDING THE ELECTRICAL CURRENT WITH AN ALTERNATIVE,
LESS RESISTANT PATH. THIS APPLIANCE IS FITTED WITH A POWER CORD CONTAINING
A GROUND WIRE AND PLUG. FIT THE PLUG INTO A SUITABLE OUTLET, INSTALLED AND
GROUNDED IN COMPLIANCE WITH LOCAL CODES.
BEFORE MAKING ELECTRICAL CONNECTIONS, TURN OFF THE
CIRCUIT BREAKER THAT WILL SERVE THE APPLIANCE.
B
A
D
C
E
E: High loop 6-9”
[15-23 cm]
A: High loop 6-9”
[15-23 cm]
A
INSTALLATION
(CONT.)
©2019 Hestan Commercial Corporation
12
EN
