HAZET-WERK

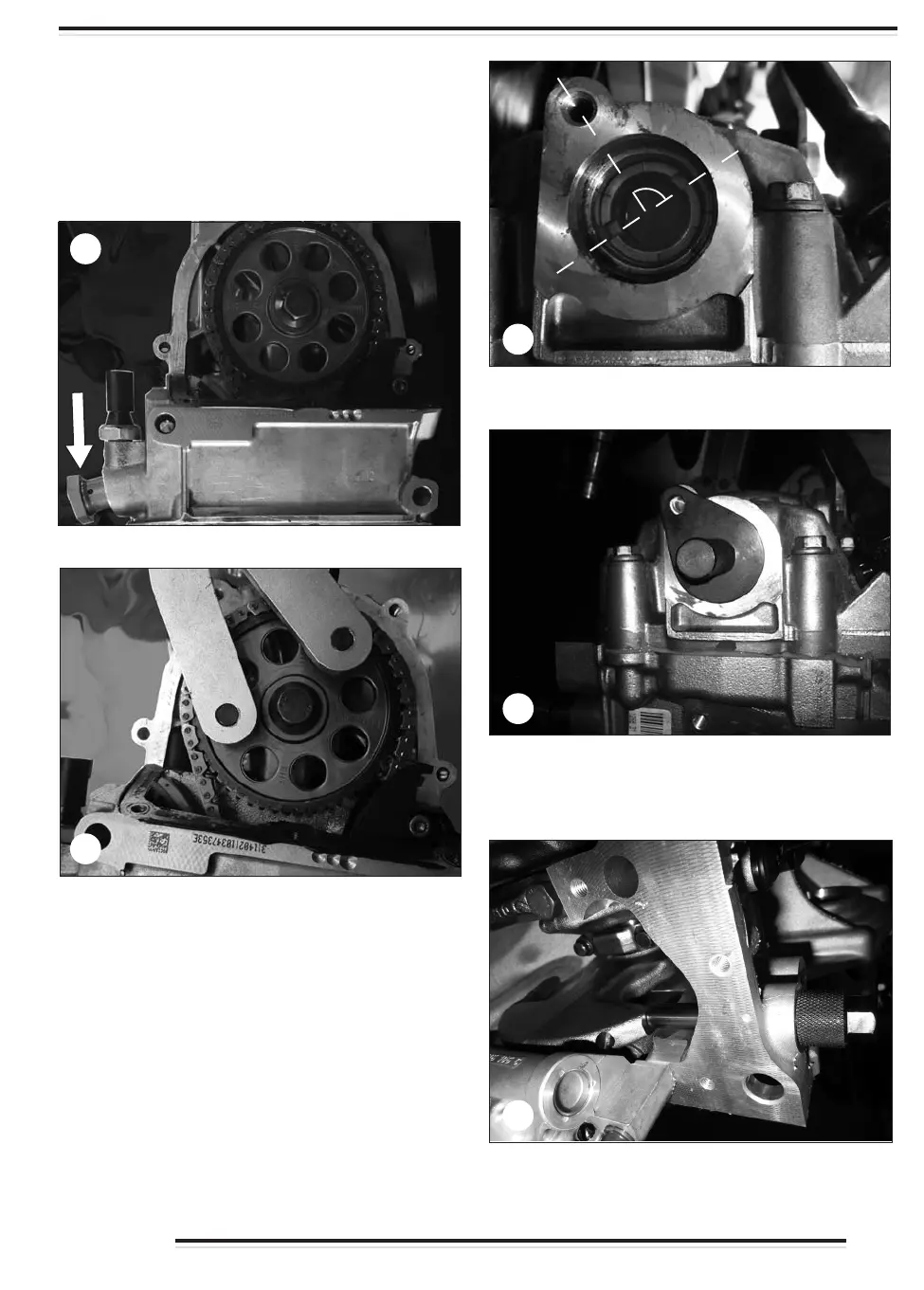

Remove the camshaft timing chain cover.
Install HAZET 2588-21 crankshaft locking pin and tighten to 30Nm.
Carefully rotate the crankshaft pulley in the direction of engine rotation
until the web of the crankshaft contacts HAZET 2588-21 crankshaft
locking pin (See picture 2).
Remove the timing chain cover. Remove the timing chain tensioner.
Using a suitable counter hold (such as HAZET 2540-2 Camshaft
Holding Tool) remove the camshaft central bolt.
Remove the camshaft sprocket and secure the chain, ensuring that it
does not fall into the sump.
Rotate the crankshaft 90 degrees anti-clockwise to prevent any
possible valve contact as the camshaft is moved to its ‘timed’
position.
Refit the camshaft sprocket and retaining bolt without the timing
chain, and tighten the central bolt to a torque of 50Nm.
Timing Adjustment
Using a suitable counter hold (such as HAZET 2540-2 Camshaft
Holding Tool) rotate the camshaft to the position shown in picture 7.
Install HAZET 2588-20 camshaft locking tool and secure in place with
a suitable bolt.
Using a suitable counter hold (such as HAZET 2540-2 Camshaft
Holding Tool) remove the camshaft sprocket and its retaining bolt.
Carefully rotate the crankshaft pulley in the direction of engine rotation
until HAZET 2588-21 crankshaft locking pin contacts the web of the
crankshaft.
3/4
2588-1/4
8
5
6
7
9
