Plug n Clear™ Salt Chlorinator 7
Contents
Filter
Pump
Cutting
template
Permanent marker,
mark out the 10 cuts
From the
pool
Towards
the pool

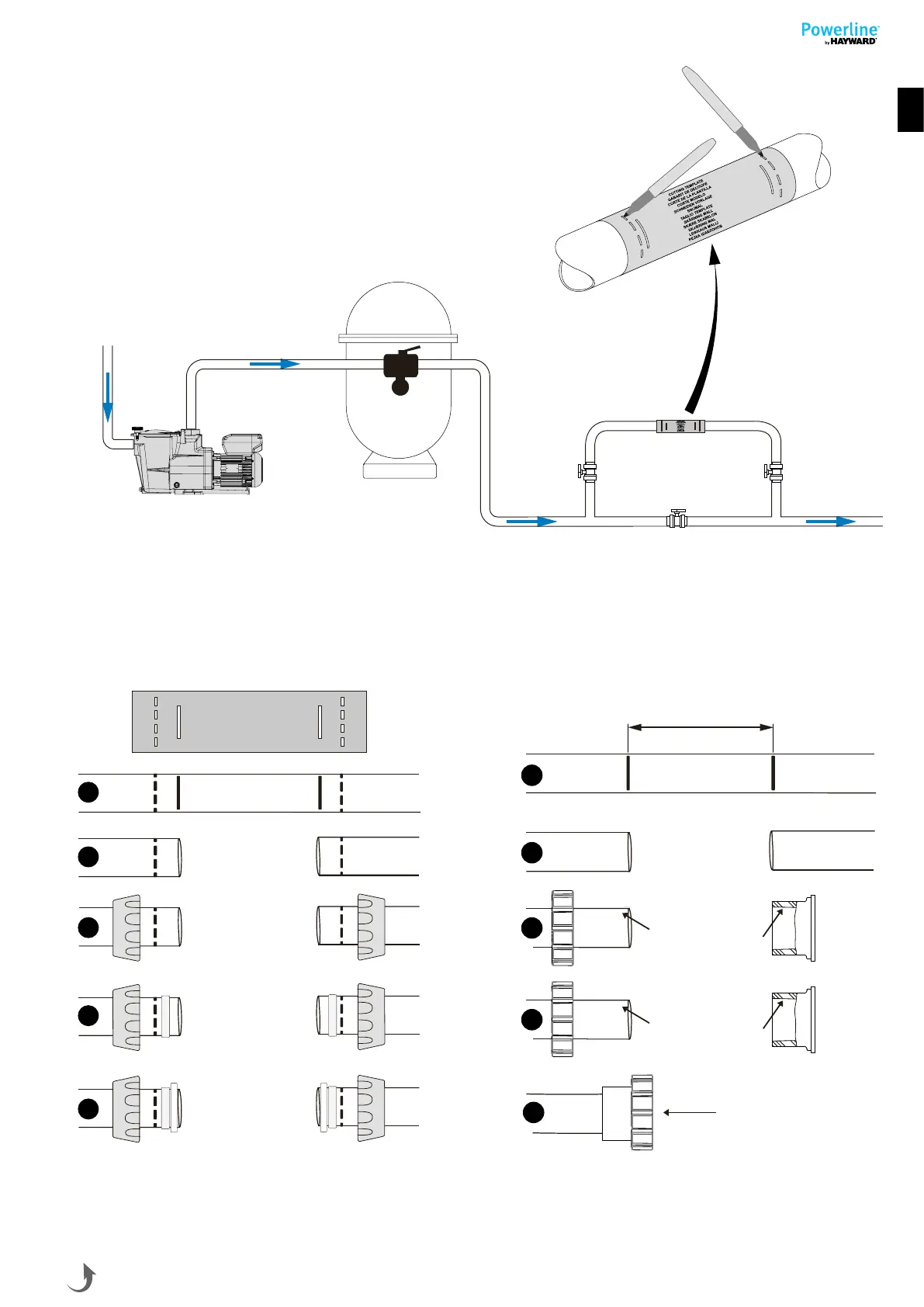

Remove the template, cut the pipe and install the union fittings as indicated below.
Place the union fittings on either side of the cut pipe (threads on the inside).
Check that the nut, the compression ring and the sealing ring are positioned on the pipe as indicated in diagram No. 1.
YoucanalsouseØ50mmslipfittings(notprovided)asindicatedindiagramNo.2.
20,5 cm
1
2
3
4
5
1
2
3
4
5
Cutting Template
Mark the pipe
Cut the pipe and
removetheocuts
Position the nuts on
the pipe
Install the compression
rings on the marks
Slide the sealing rings
onto the pipe
Cut the pipe and
removetheocuts
Sand and degrease
using solvent
Glueusingspecic
PVCglue
Assemble
Diagram no. 1 Diagram no. 2
Use only genuine replacement parts
