AssemblyPage EN-16

(6)

(7)

(8)

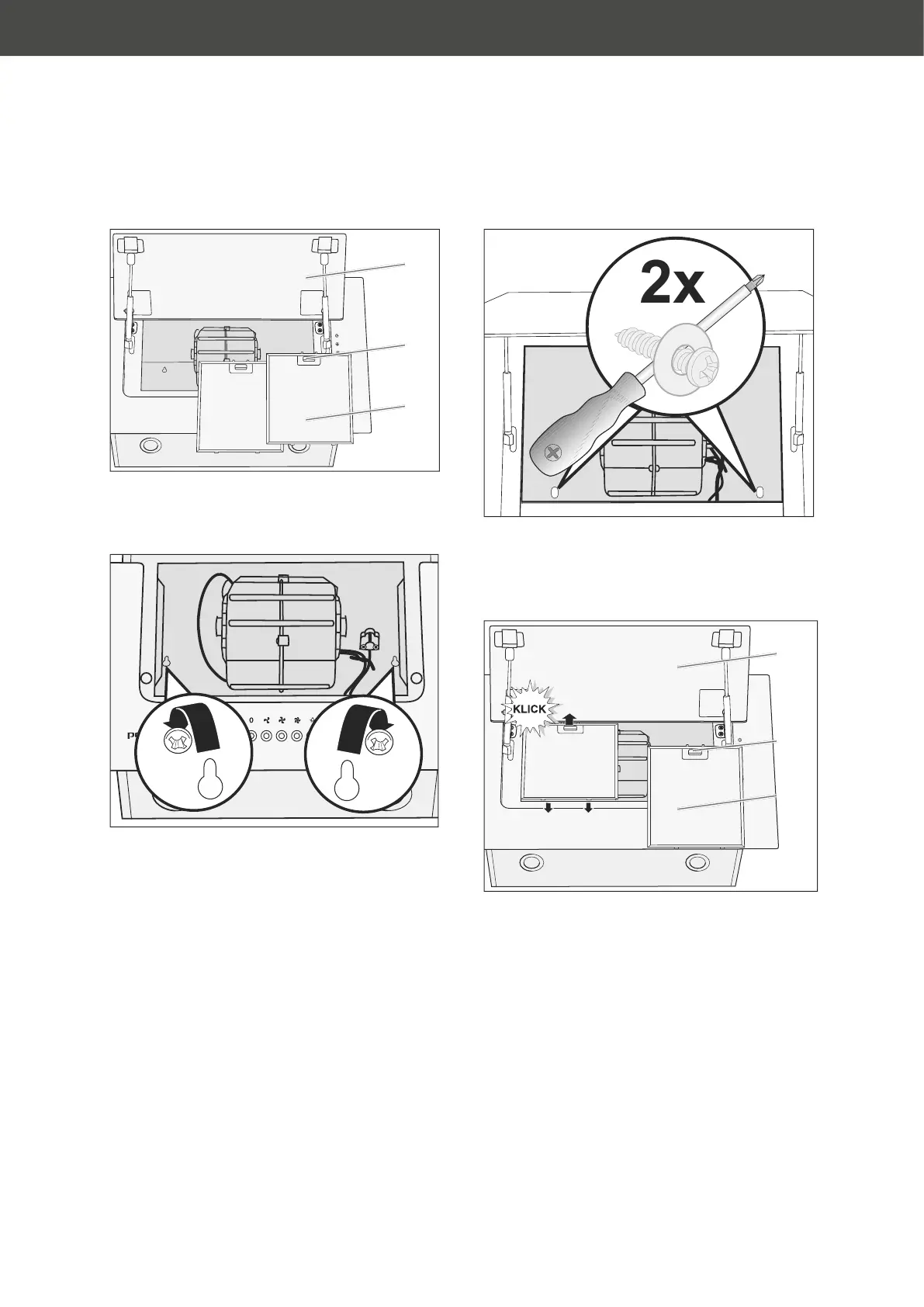

3. Flip the cover (6) up.

4. Open the locks (7) on the grease filter (8)

and carefully remove the grease filter (8).

(12)

5. Carefully hang the exhaust hood on the

two round-head screws (12) using the

keyhole openings.

6. If necessary, remove the exhaust hood

again to loosen or tighten the screws

in order to ensure that the hood is flush

with the wall.

(13)

7. Turn two round-head screws (13) into

the prepared wall plugs to secure

the exhaust hood and screw the

exhaust hood tightly to the wall.

(6)

(7)

(8)

8. Place the grease filters (8) with the pins

into the openings.

9. Push the locks (7) down; snap the grease

filters (8) in and release the locks.

10. Close the cover (6) again and allow it

to click into place. The exhaust hood is

now mounted to the wall.
