208
Technical changes reserved
electraplan.VE-EE
electraplan.VE-EE

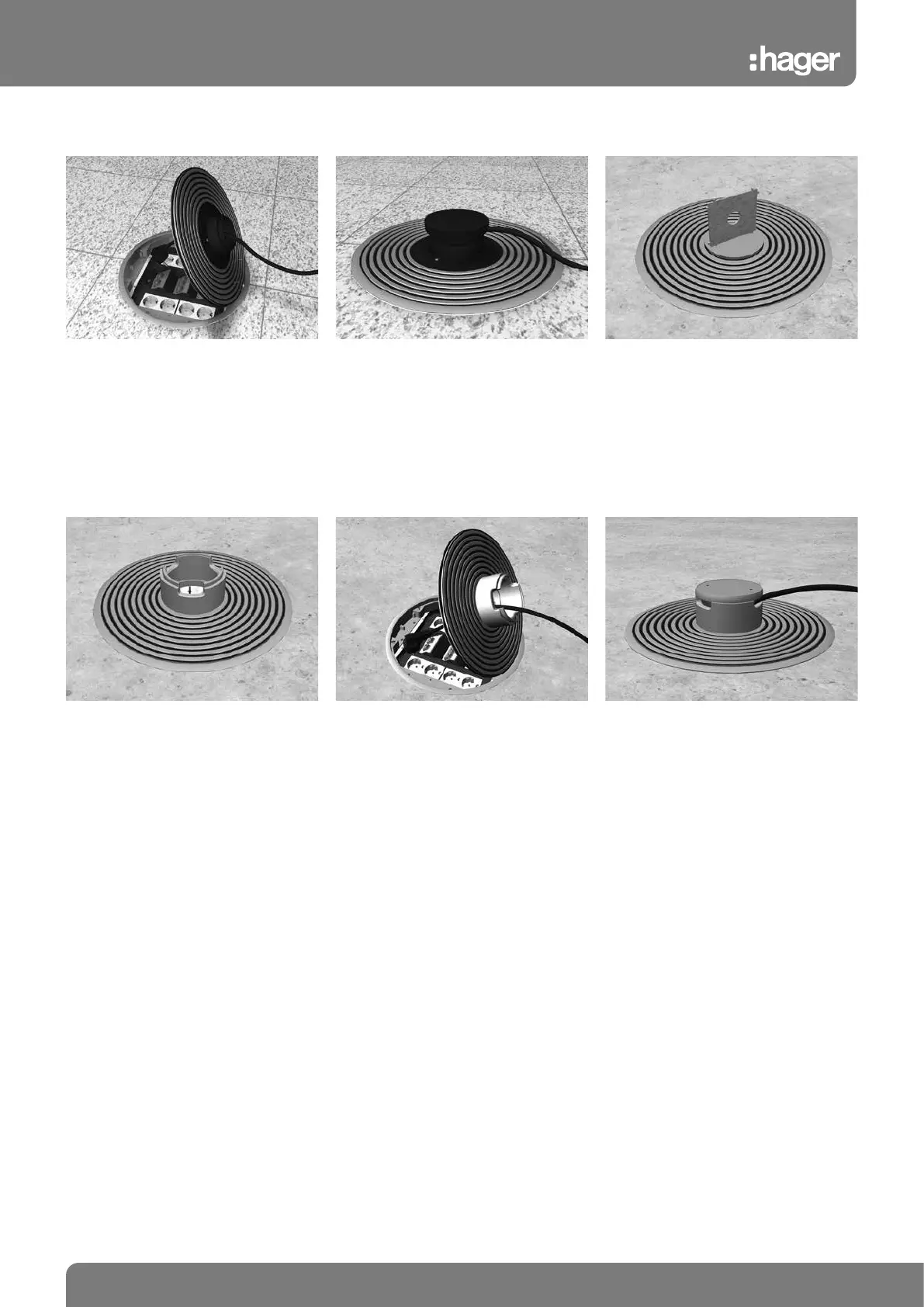

Installation instructions, service unit VANR12
Thread in the cables
Open the cover and feed the cables through
the opening of the polyamide tube into a
power socket. Carefully clean all sealing
surfaces before closing the cover.
Close the polyamide tube Screw on the aluminium tube lid
Carefully close the cover of the service unit.
Snap the bayonet fitting of the tube lid into
the centre piece and close it. The service unit
is now protected against splash water
(according DIN VDE 0634) of up to 30 mm
When installing a VAN service unit with al-
uminium tube, unscrew the aluminium tube
lid using pin wrench TUSS000 and remove
it. The cover of the service unit can now be
opened by reaching into the opening and
pulling it upward.
Screw in the aluminium tube Thread in the cables Close the aluminium tube
Screw aluminium tube TULAA105 into the
thread of the service unit cover.
Open the cover and feed the cables through
the opening of the aluminium tube into a
power socket. Carefully clean all sealing
surfaces before closing the cover.
Carefully close the cover of the service unit.
Screw the tube closing ring into the tube lid
at the cable outlet. The service unit is now
protected against splash water (according
DIN VDE 0634) of up to 30 mm.
