Installation instructions, service unit VANR12

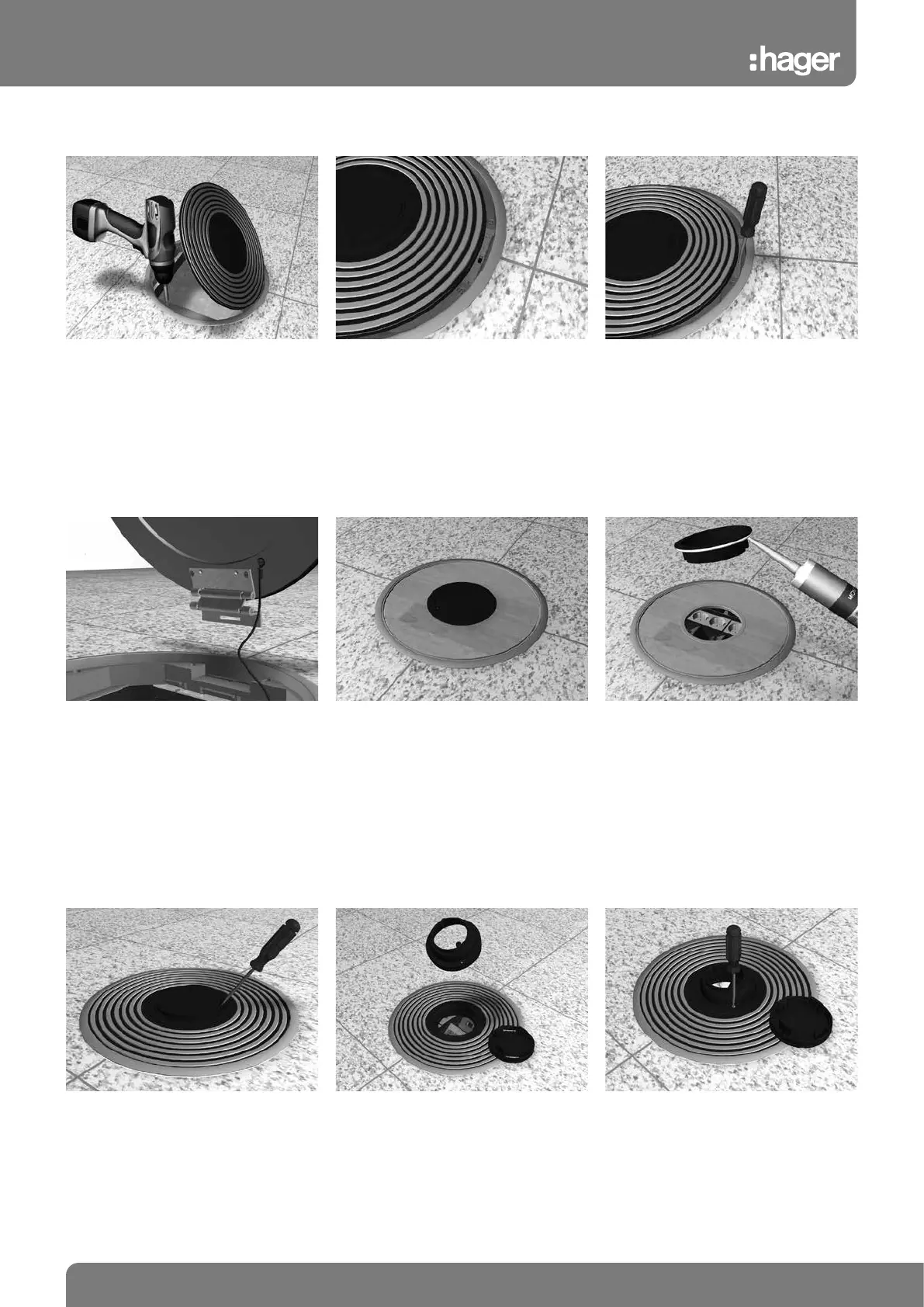

Attach the service unit
Slightly turn in the inner screws of the eight
mounting kits.
Remove the cover (optional) Release the snap lock
The cover can be separated from the frame
to facilitate installation. Open the cover and
pull it away from the hinge. This provides
access to the screws of the mounting kit and
a slot at the hinge.
Insert the screwdriver into the slot in the
hinge piece until resistance is noticeable.
Push down the screwdriver, pivoting it
toward the cover. The motion combined
with a slight jerk will release the latching
mechanism.
Pull off the cover
Pull off the cover. Work the hinge piece out
of its seat by wiggling it left and right.
Service unit with flooring Bond in the polyamide tube
A service unit suitable for bonding in 3-mm
flooring is available as an option. This re-
quires accurate trimming of the flooring.
Outer Ø = 293 mm
Inner Ø for aluminium tube = 107,5 mm
Inner Ø for polyamide tube = 129.5 mm
When installing service unit VANR1200TU,
suitable sealant must be applied to the lower
surface of the flooring frame of the polyamide
tube after bonding in the flooring.
Prise open the polyamide tube lid
When installing service unit VAN with poly-
amide tube, insert a screwdriver into the two
perforations and lever it upward to push up
the lid.
Turn the polyamide tube centre piece Attach the polyamide tube centre piece
Remove the centre piece of the tube cable
outlet by hand, reverse it by 180° and push
it back on. The cover of the service unit can
now be opened by reaching into the opening
and pulling it upward.
Use the two screws clipped in the tube lid
to secure the tube centre piece to the cover
of the service unit. The tube is now secured
against lateral force and will remain in posi-
tion.
