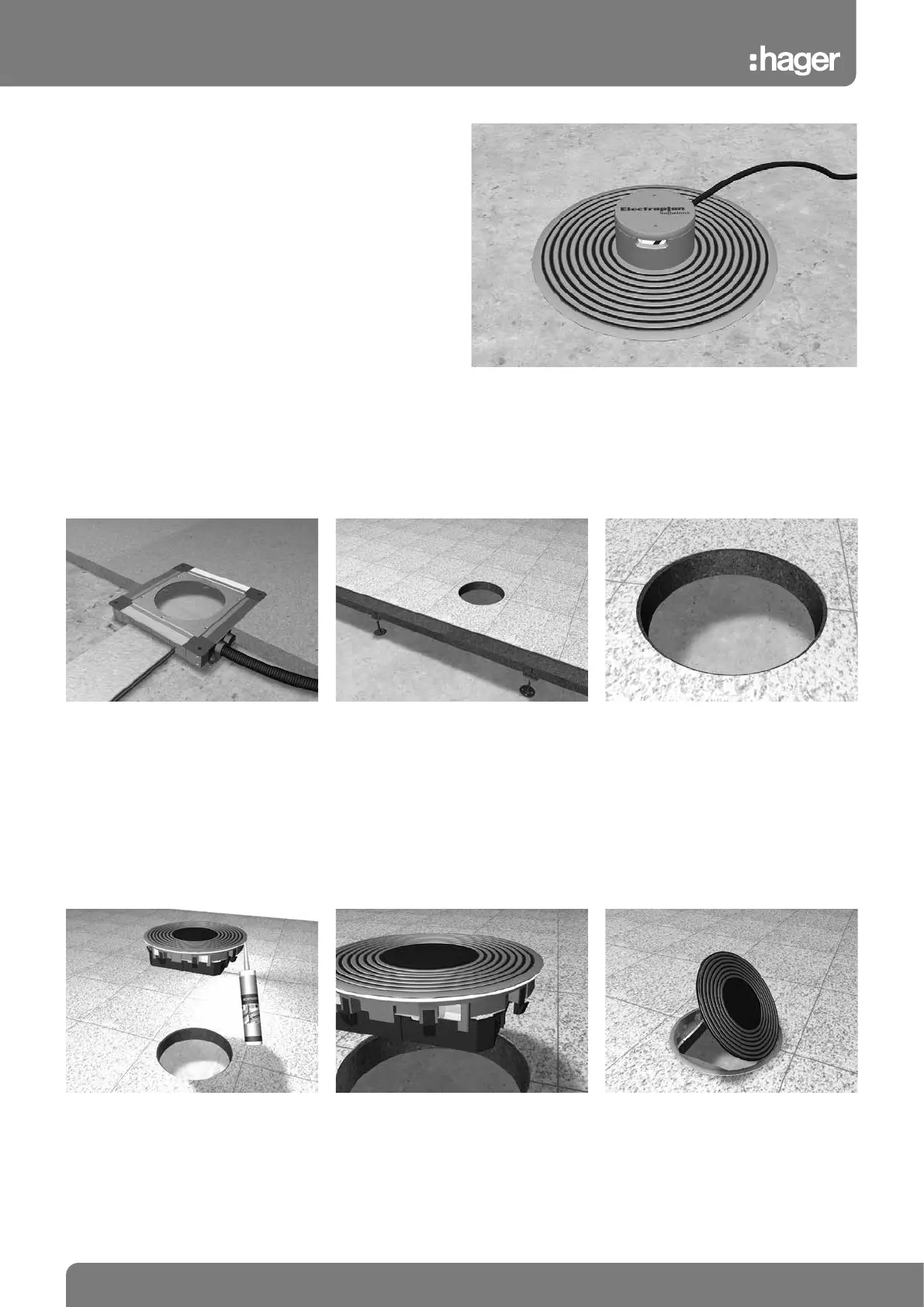

Installation instructions, service unit VANR12
General instructions:
Cleaning
Carefully clean all sealing surfaces of the cover each time you
close it.
Installation in universal junction box
Replace the screed protection cover by
fitting frame UDM3306R12.
Installation in cavity floor or raised floor Lay the flooring
Create an installation opening with a dia-
meter of 306 mm (tolerance + 1 mm) in the
raised floor or cavity floor.
Hard flooring such as wood, PVC or tiles
should be worked around the service unit
leaving space for an expansion joint.
Seal the service unit
Apply suitable sealant to the lower surface of
the flooring frame.
Check the mounting kit Align the service unit
Check the distance between the mounting
kit and the height of the floor construction
and push the service unit into the installa-
tion opening. If it is difficult to push in, turn
out the screws of the mounting kit until the
mounting kit engages in the floor panel from
below.
Align the service unit to suit the premises.
Consider the opening direction of the cover.
