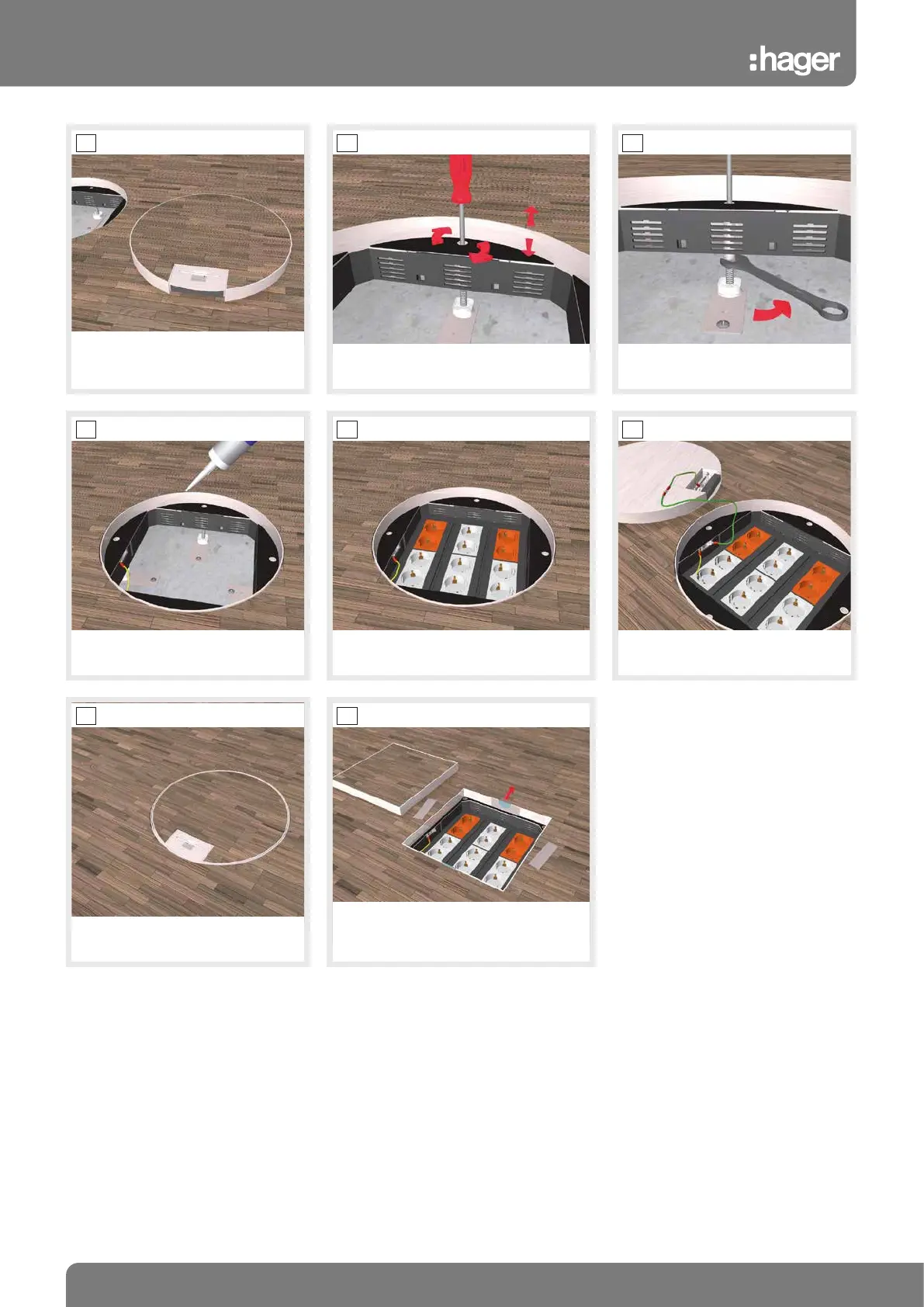

Installation instructions, service unit EKQ/EKR
07
Glue the floor covering so that it fits precisely
into the cassette lid. A packing plate can be
supplied on request to reduce the inner height.
Level the cassette
08
The cassette is levelled to the exact height of the
floor using the threaded pins.
Tighten the lock nut
09
Tighten the lock nut against the levelling
sleeve. This prevents loosening of the
threaded pin through vibration.
Seal the expansion joint
10
Seal the expansion joint between the
cassette and the floor covering using an
elastic caulk.
Equip the cassette
11
Equip the cassette with the appropriate power
and data technology.
Connect the protective conductor
to the cover
Glue the floor covering in the
cassette cover
12
Plug the protective conductor connection
cable of the cassette cover onto the earthing
point of the frame.
Close the cassette
13
Insert the cassette cover into the frame.
For rectangular cartridges
14
If rectangular cartridges are used, after completion of
the final floor covering, the spacer plate should be
removed so that the cover can be inserted easily
into the cassette.
6LE000535A
2
