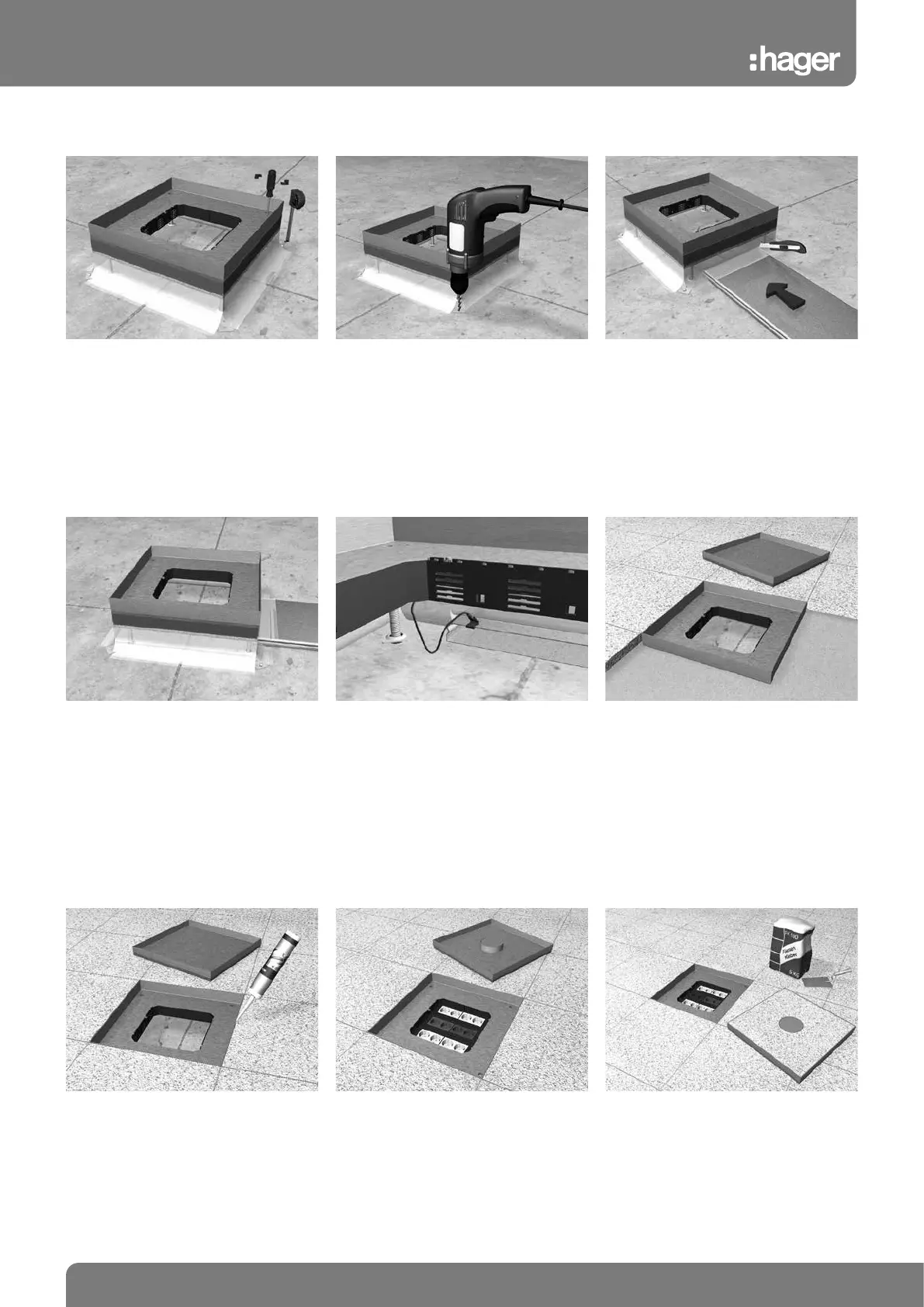

Installation instructions, heavy-duty cassette EKSQ405
Level the cassette frame
Position the angled frame with the cassette
frame screwed to it on the slab and use the
set screws to adjust the height.
Attach the cassette frame Feed in the trunking
Secure the retaining tabs to the slab. Cut in the film formwork to fit height and
width of the trunking. Lift the film flap and
push the trunking approx. 40 mm below
the cassette frame.
Seal the cassette frame
Seal all openings and joints.
Earthing measures at cassette frame Lay screed and flooring
The earthing cable must be connected to the
earthing measures provided on site.
Work screed or flooring around the cassette
frame leaving space for an expansion joint,
ensure absolute cleanliness in the cassette
area.
Seal the expansion joint
Seal the expansion joint around the cassette
frame using an elastic sealant.
Fit the cassette Bond the flooring into the cassette cover
Install the device casings with their power
sockets and data modules into the latching
rail.
Cover cassette cover with flooring. Ensure
that the adhesive is evenly spread and that
the flooring is flat on the cassette cover, as
otherwise the flooring may break.
